Home >> Mitsubishi >> 2011 >> Eclipse V6-3.8L (6G75) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

ON-VEHICLE SERVICE

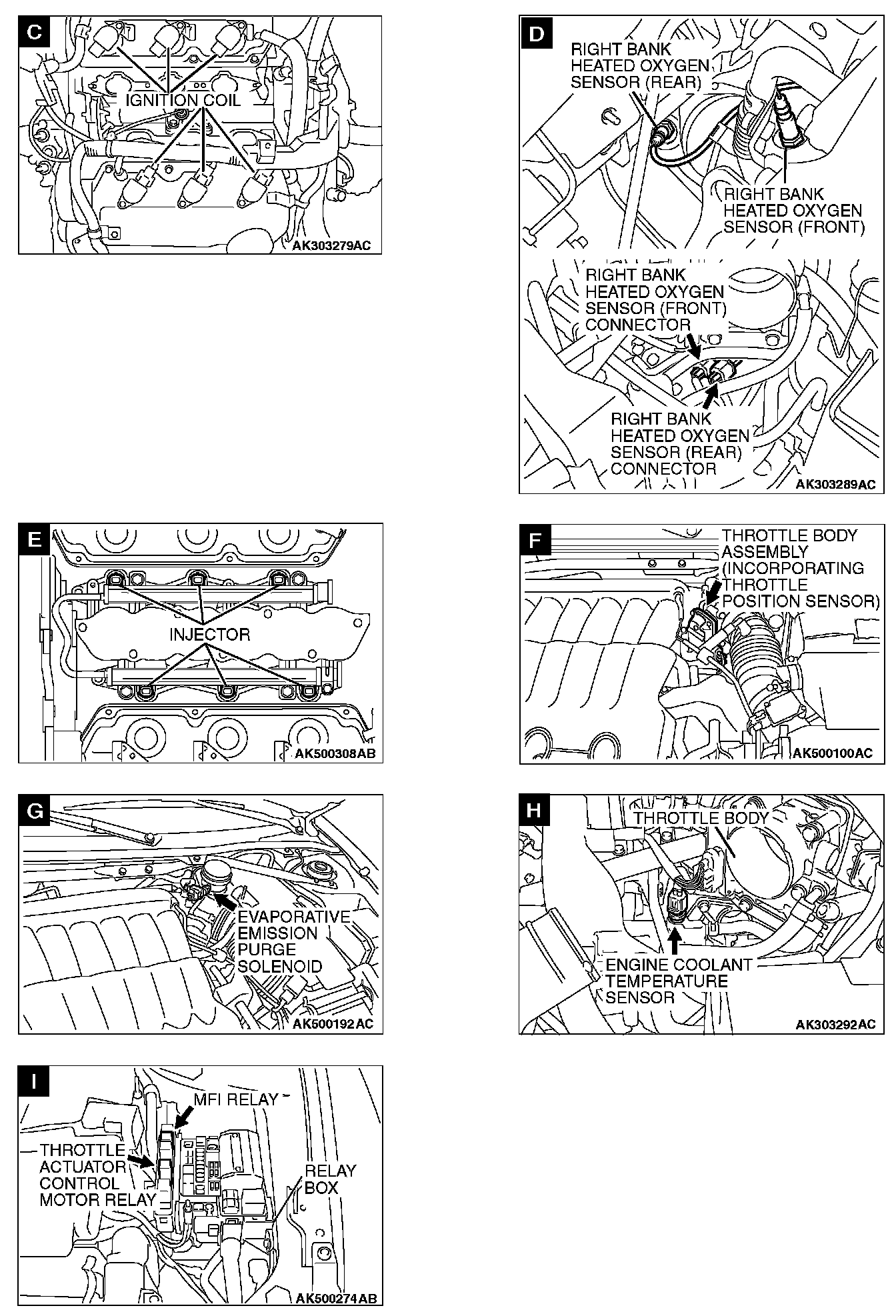

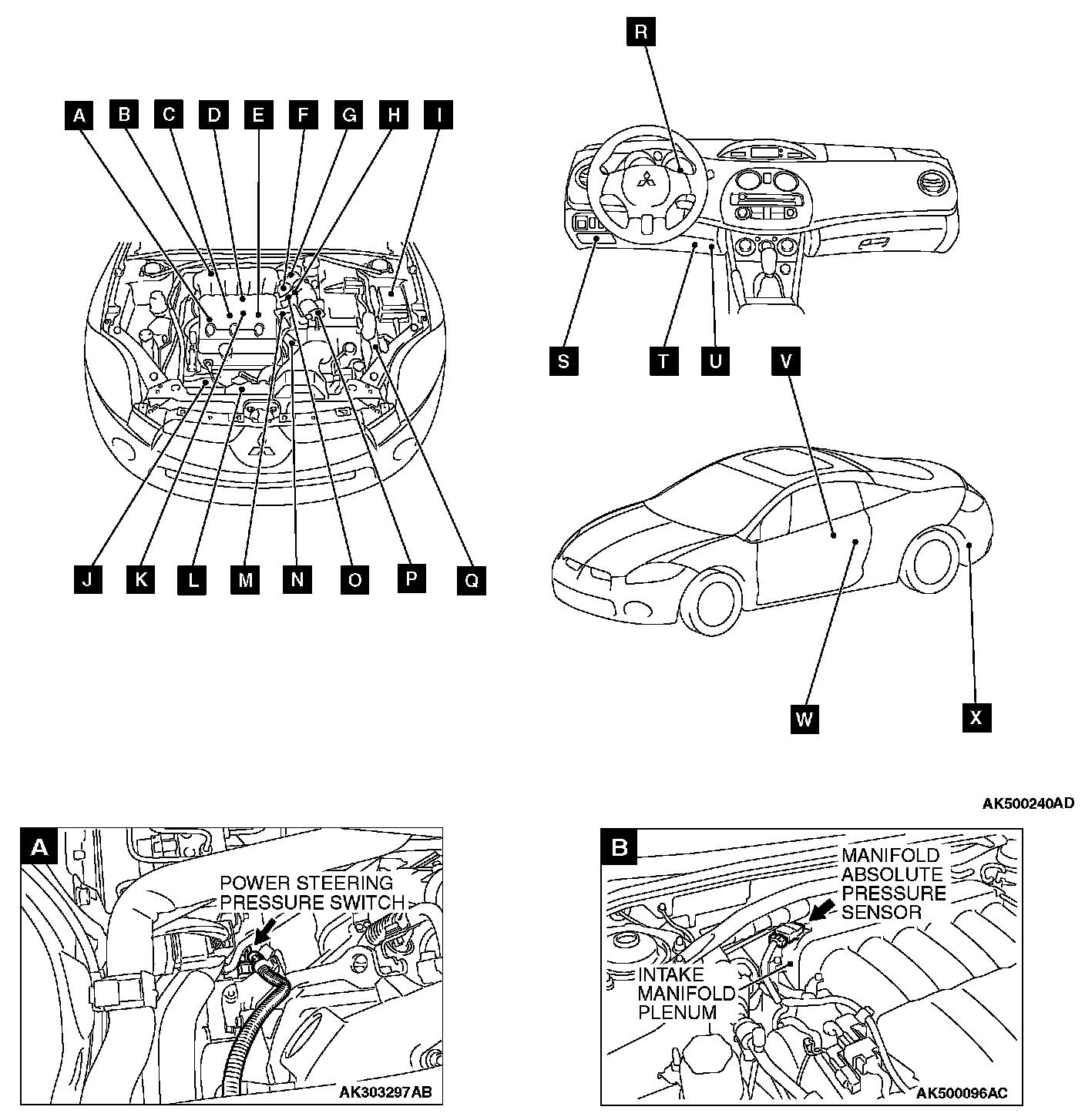

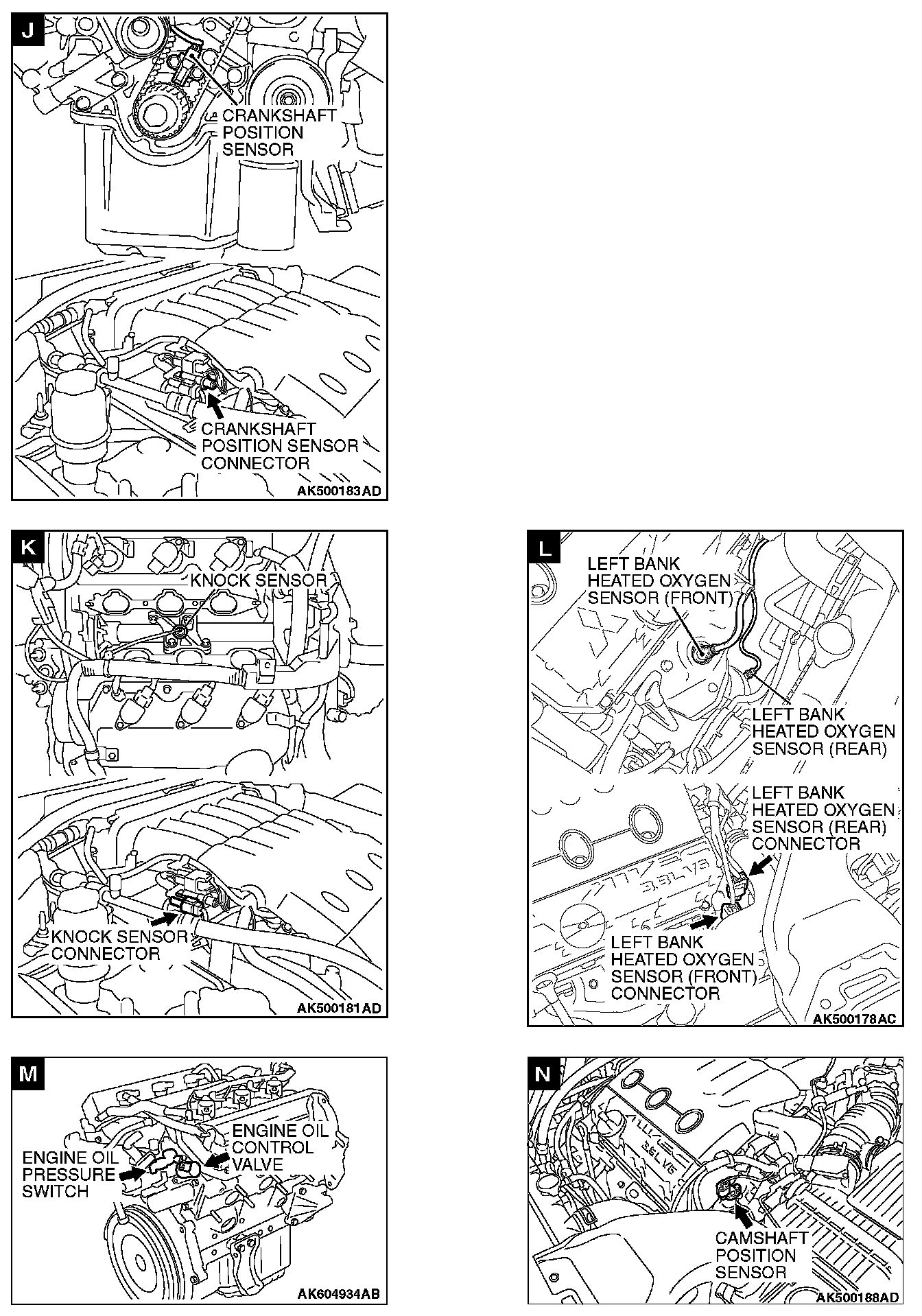

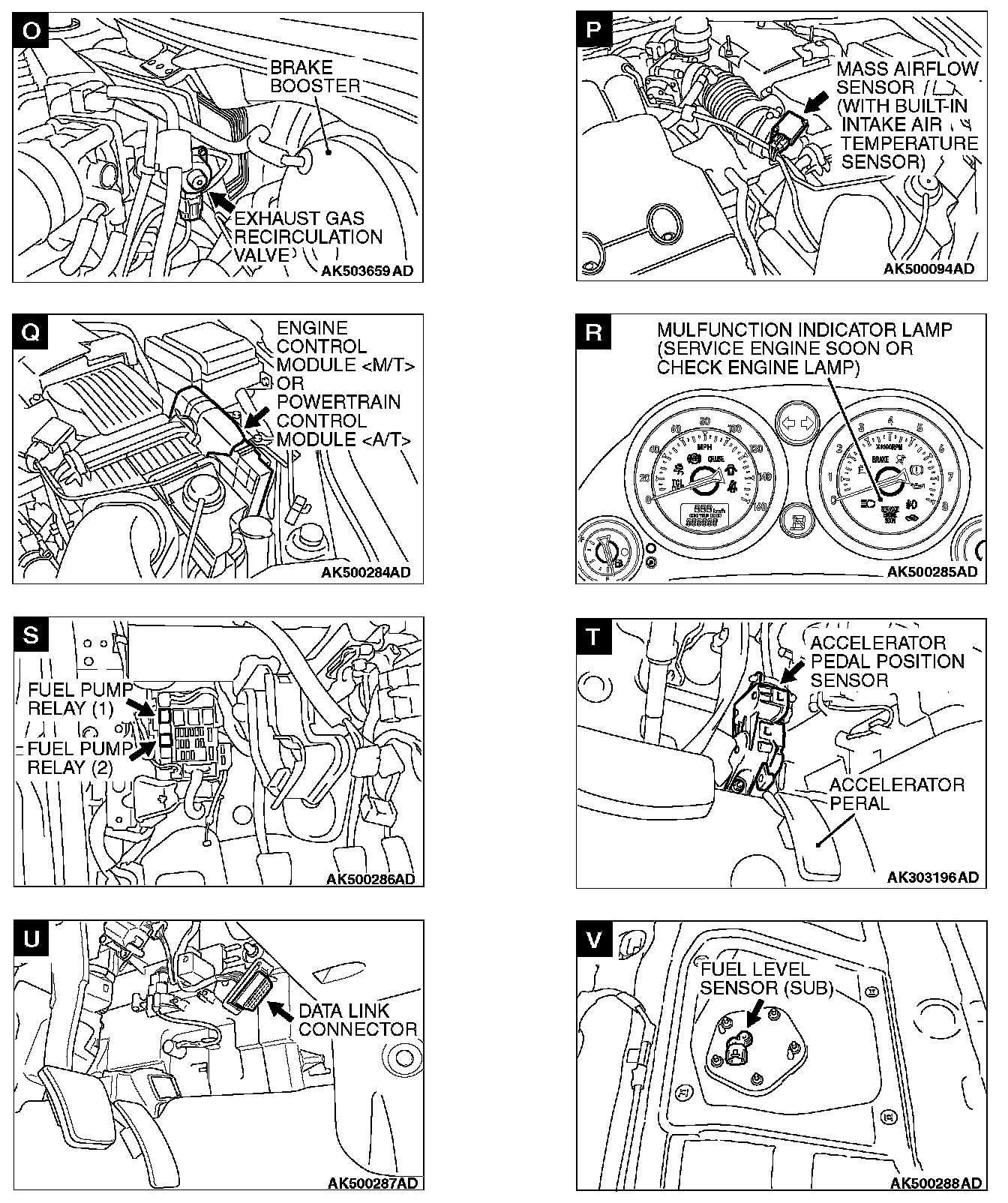

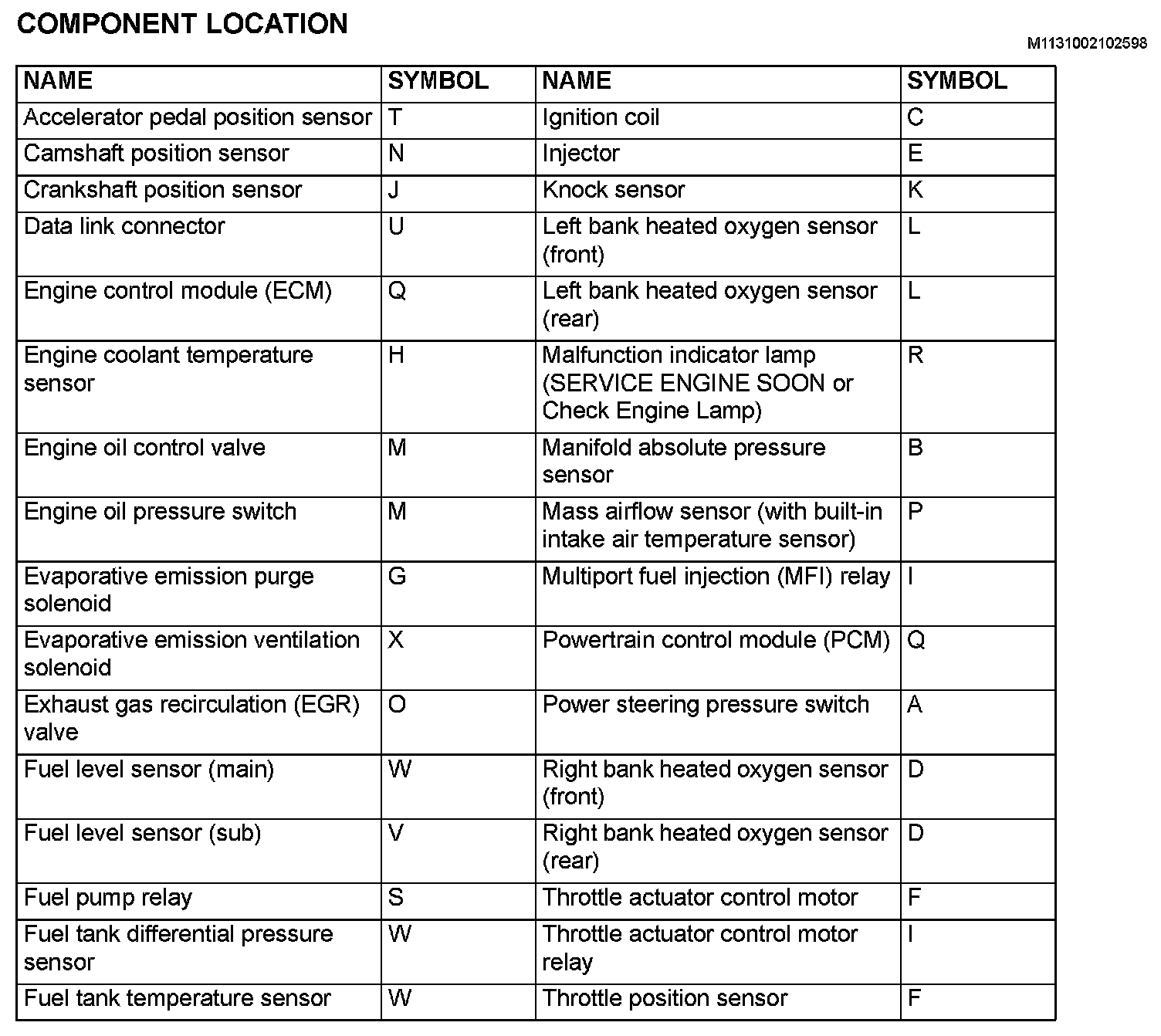

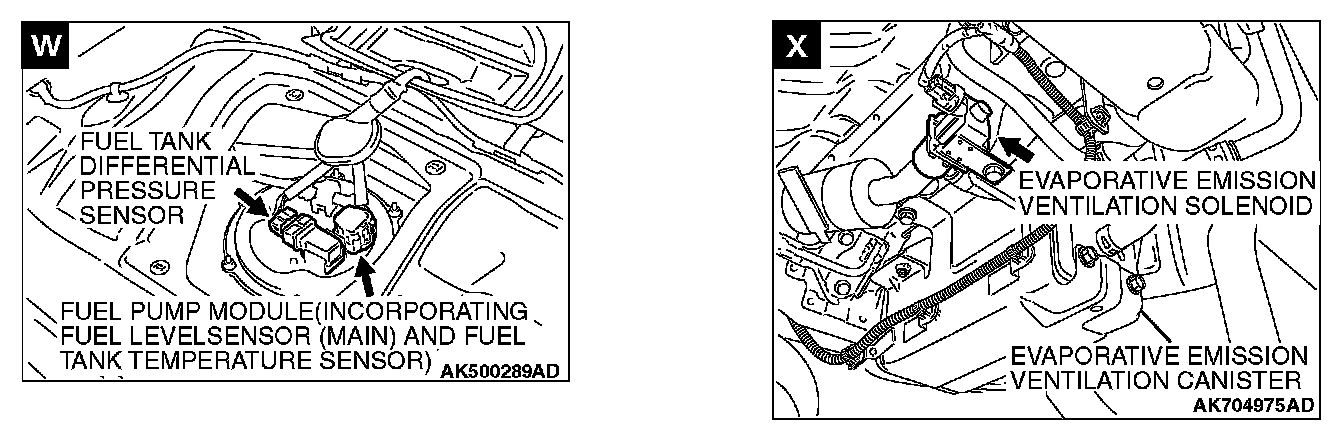

COMPONENT LOCATION
