Steering Column Control Module: Locations

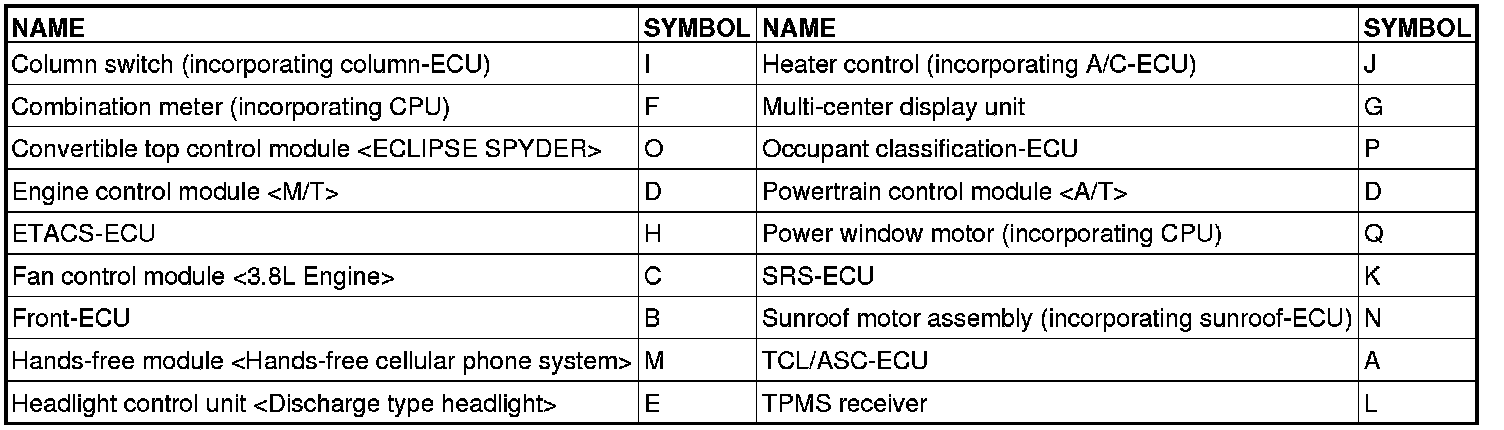

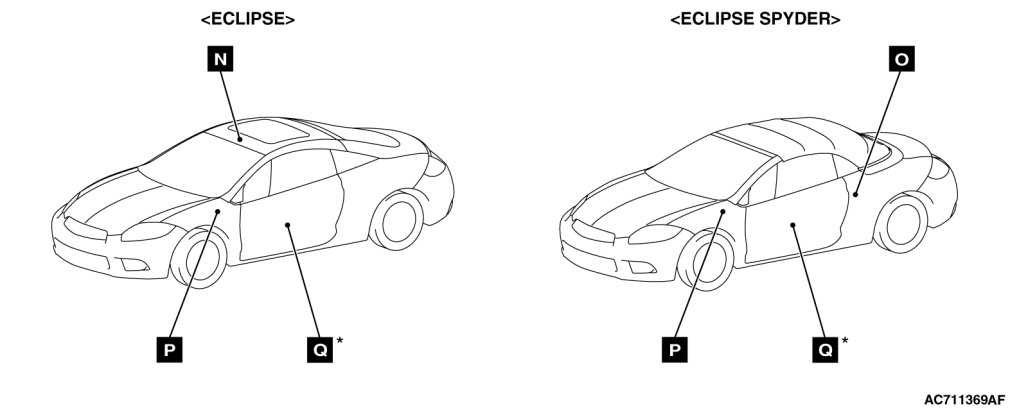

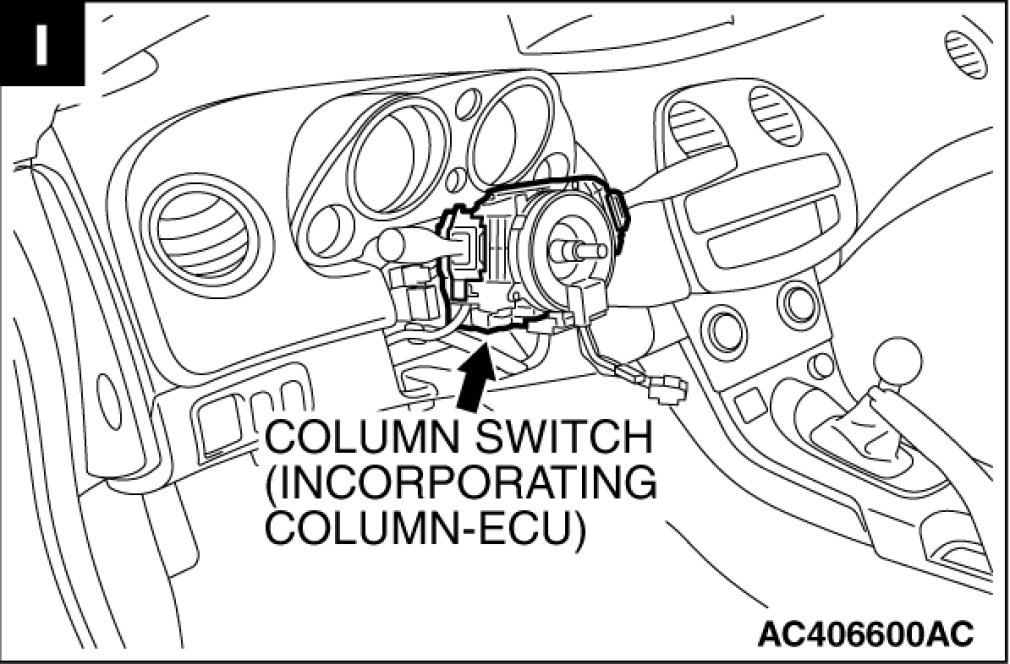

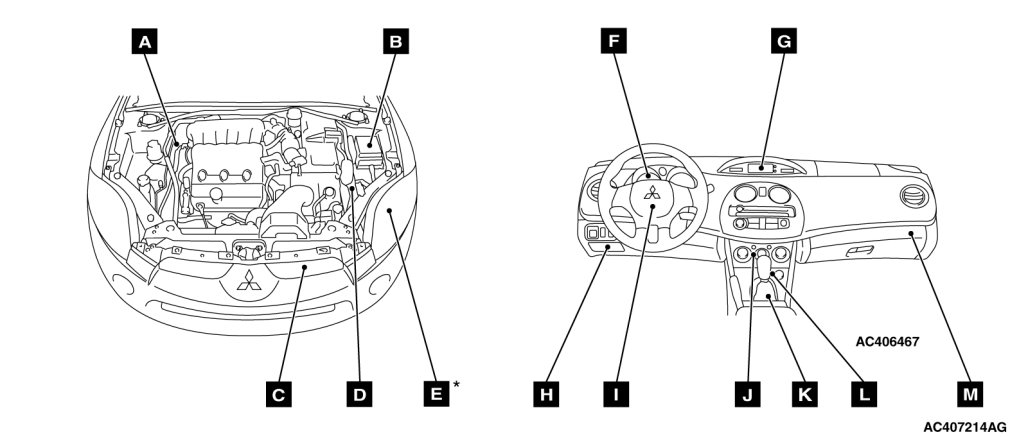

CONTROL UNIT













NOTE:
The * symbols indicate equipped at both sides.
