System Relay: Testing and Inspection
POWER RELAY CHECK

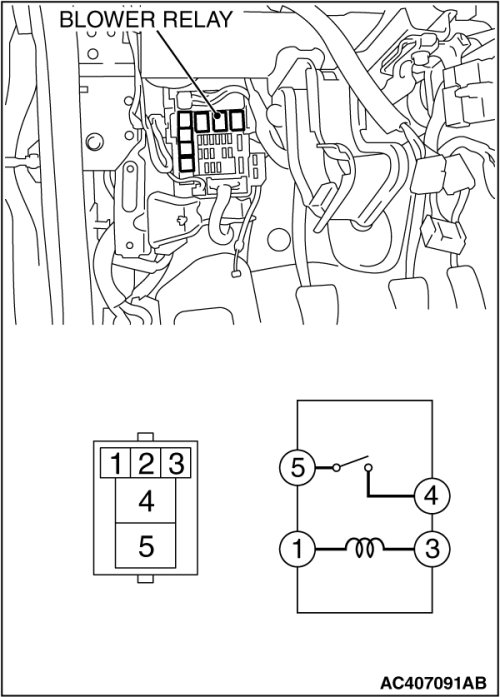

BLOWER RELAY CONTINUITY CHECK

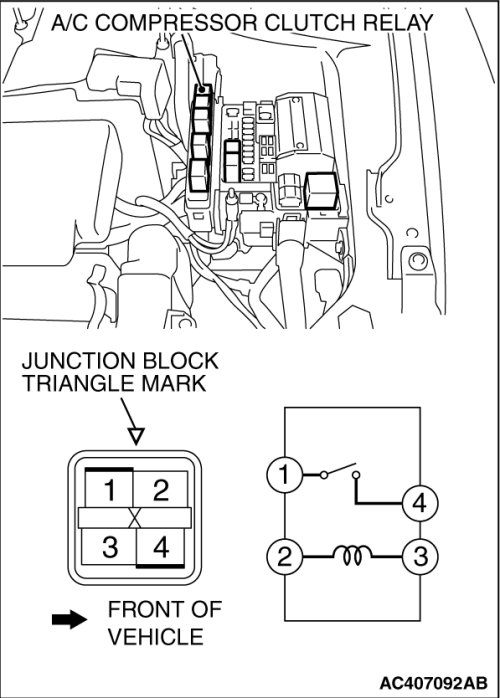

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK

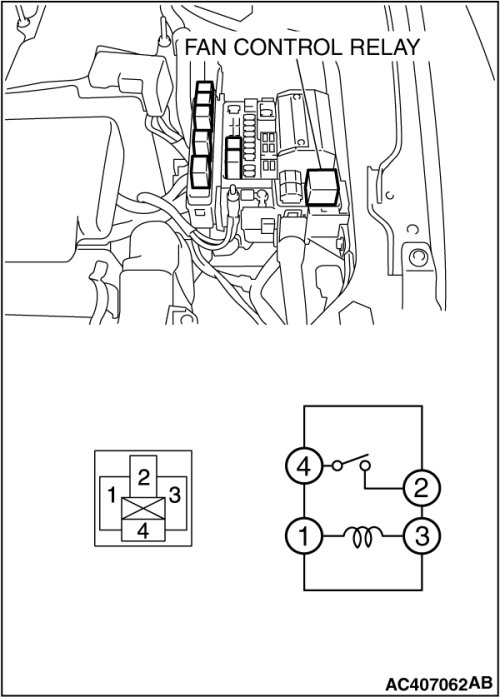

FAN CONTROL RELAY CONTINUITY CHECK

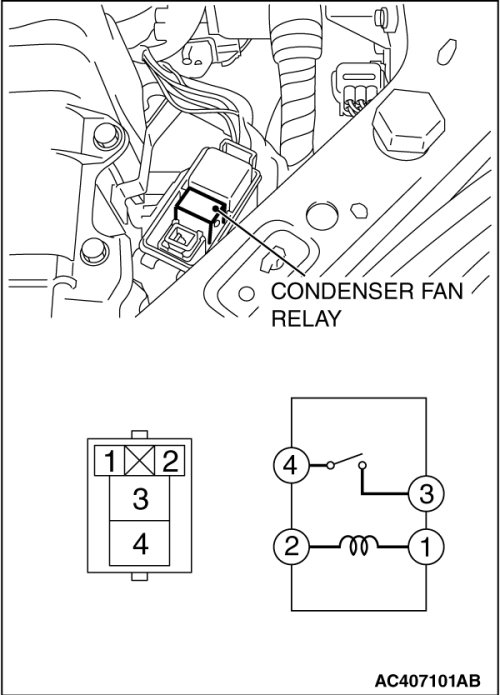

CONDENSER FAN RELAY CONTINUITY CHECK [2.4L ENGINE]
POWER RELAY CHECK
BLOWER RELAY CONTINUITY CHECK
A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK
FAN CONTROL RELAY CONTINUITY CHECK
CONDENSER FAN RELAY CONTINUITY CHECK [2.4L ENGINE]
