Mitsubishi
>>
2010
>>
Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Power Window Switch Continuity Check
Power Window Switch Continuity Check
INSPECTION
POWER WINDOW SWITCH
CONTINUITY CHECK

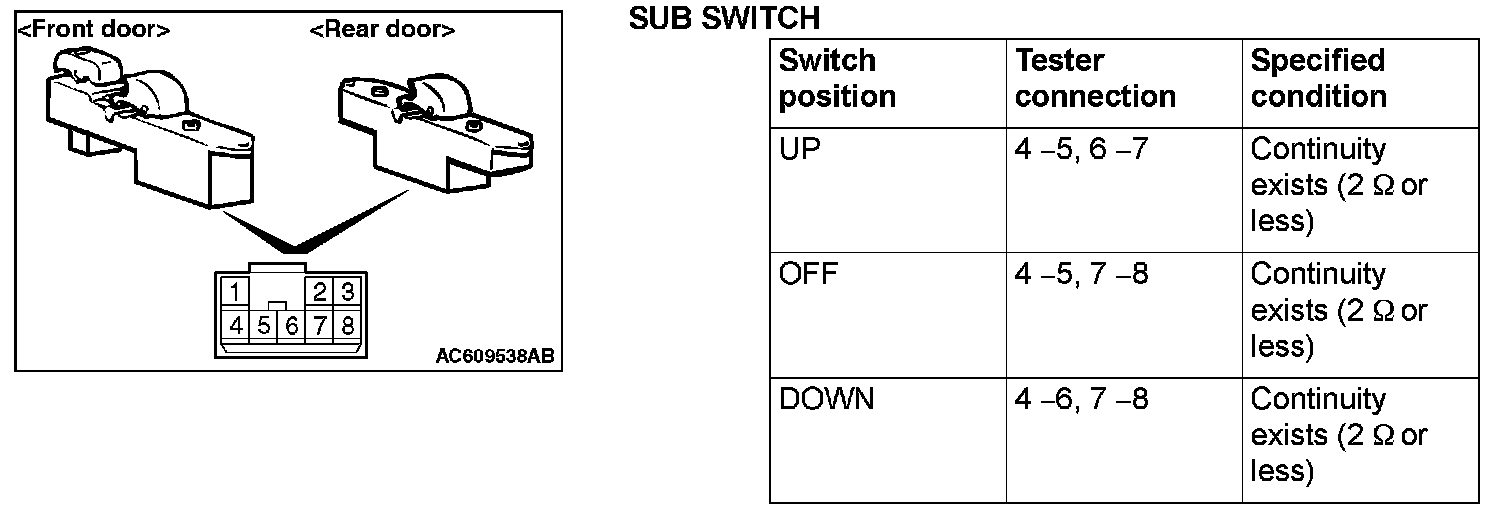

SUB SWITCH
