Accelerator Pedal Position Sensor: Service and Repair
ACCELERATOR PEDAL
REMOVAL AND INSTALLATION
Pre-removal And Post-installation Operation:

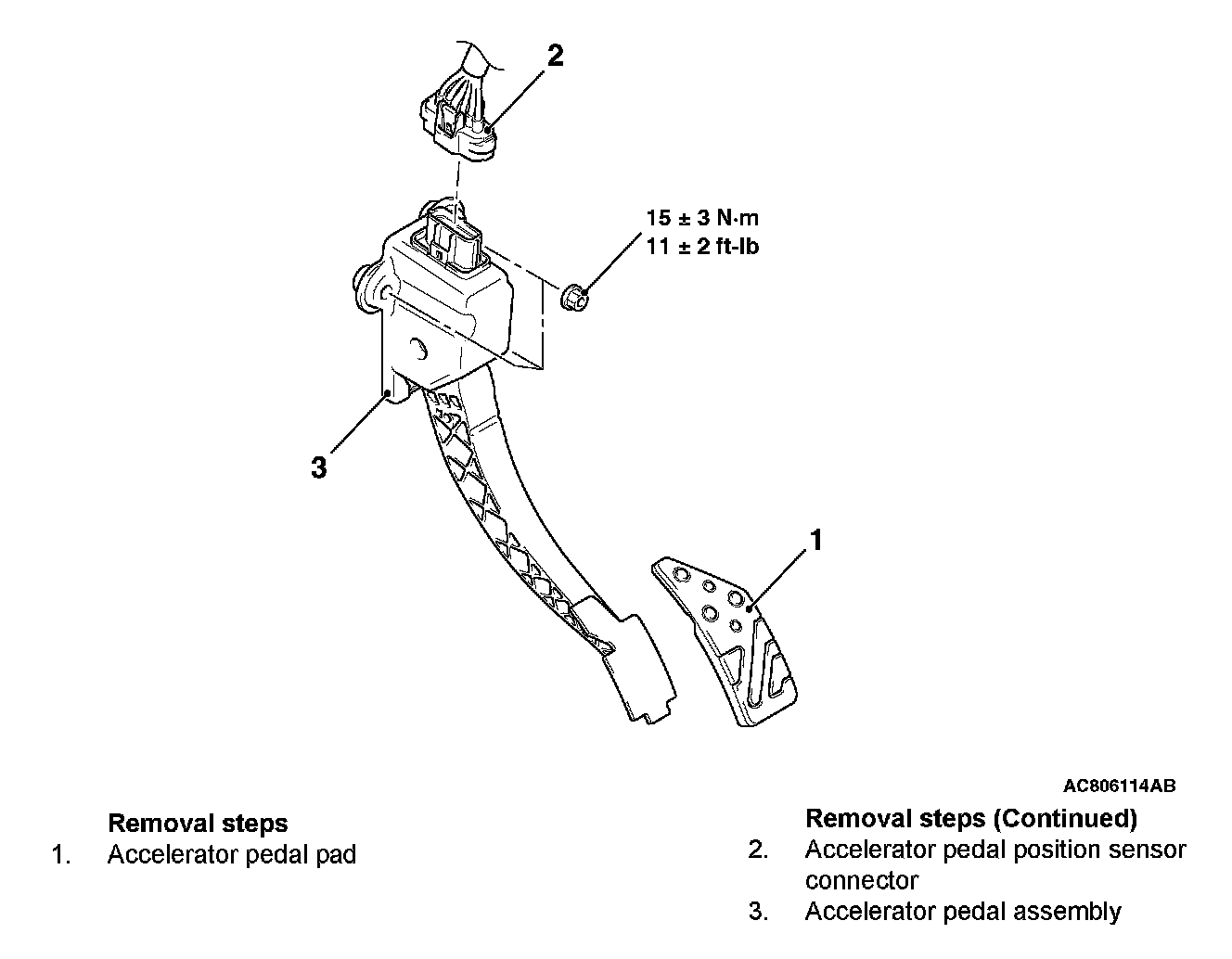

Removal Steps 1-3:
