Accelerator Pedal Position Sensor: Locations

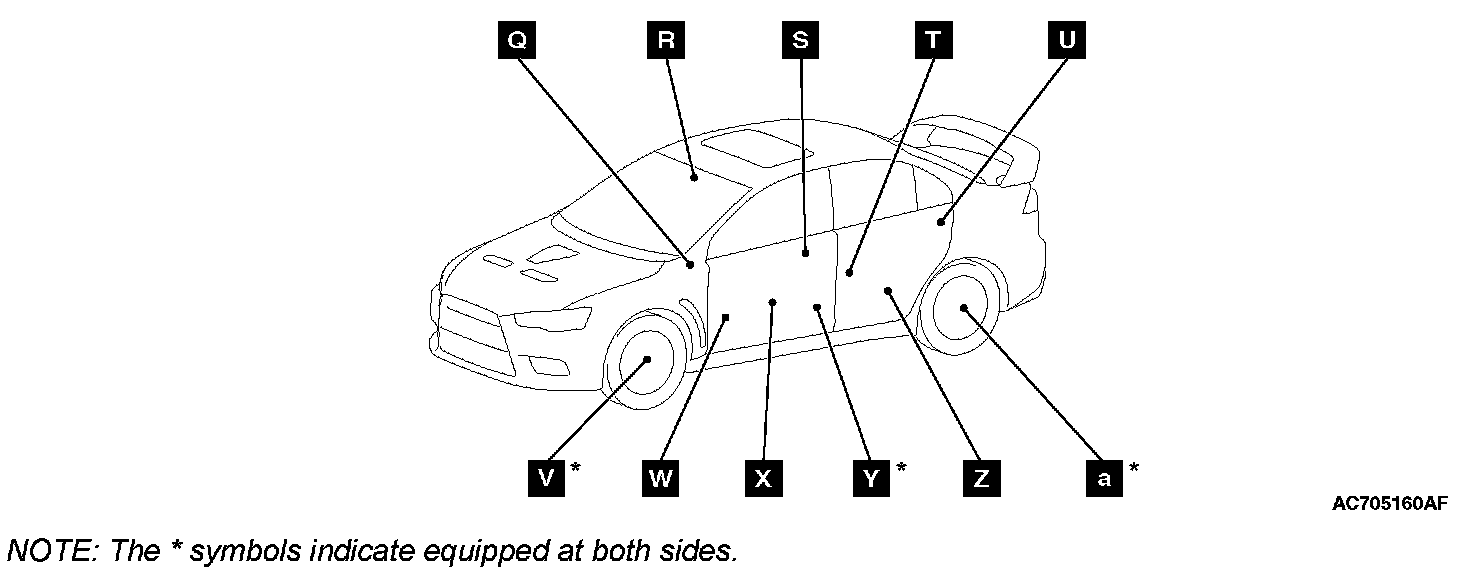

Overall View (Part 1):

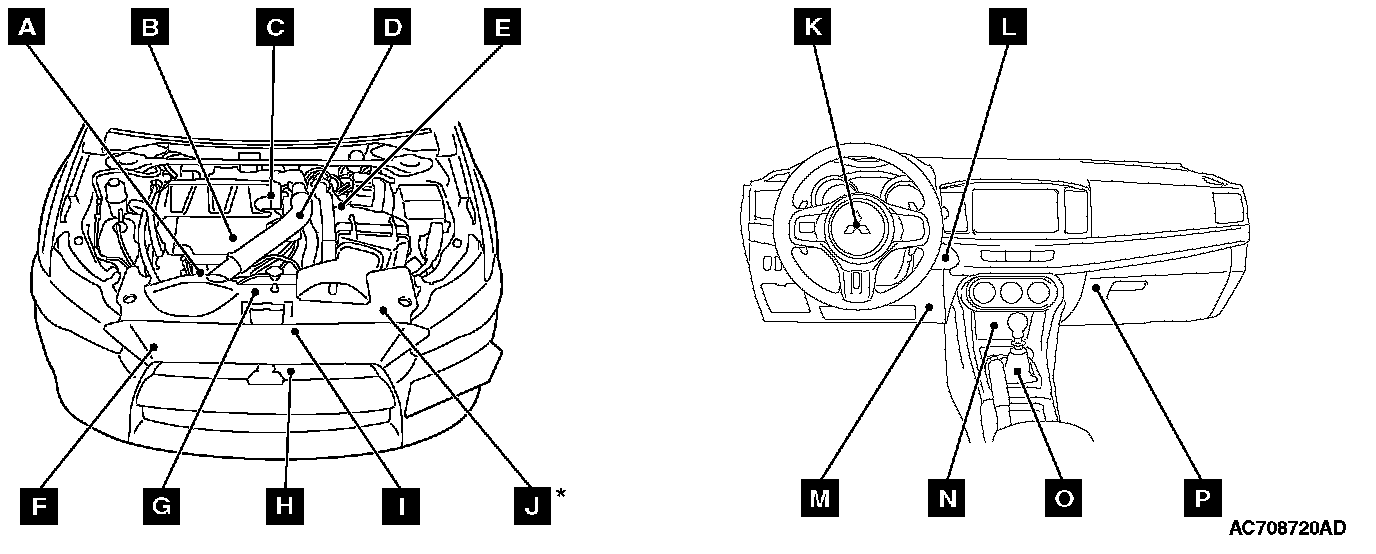

Overall View (Part 2):

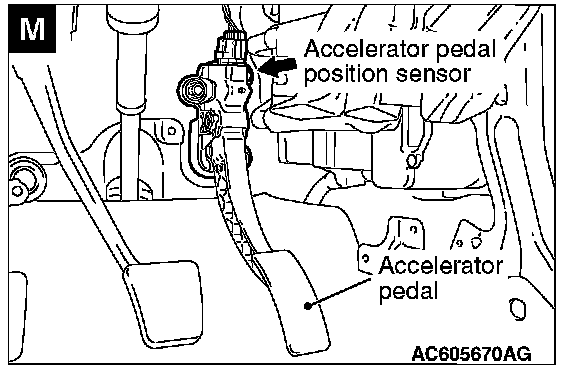

View M:

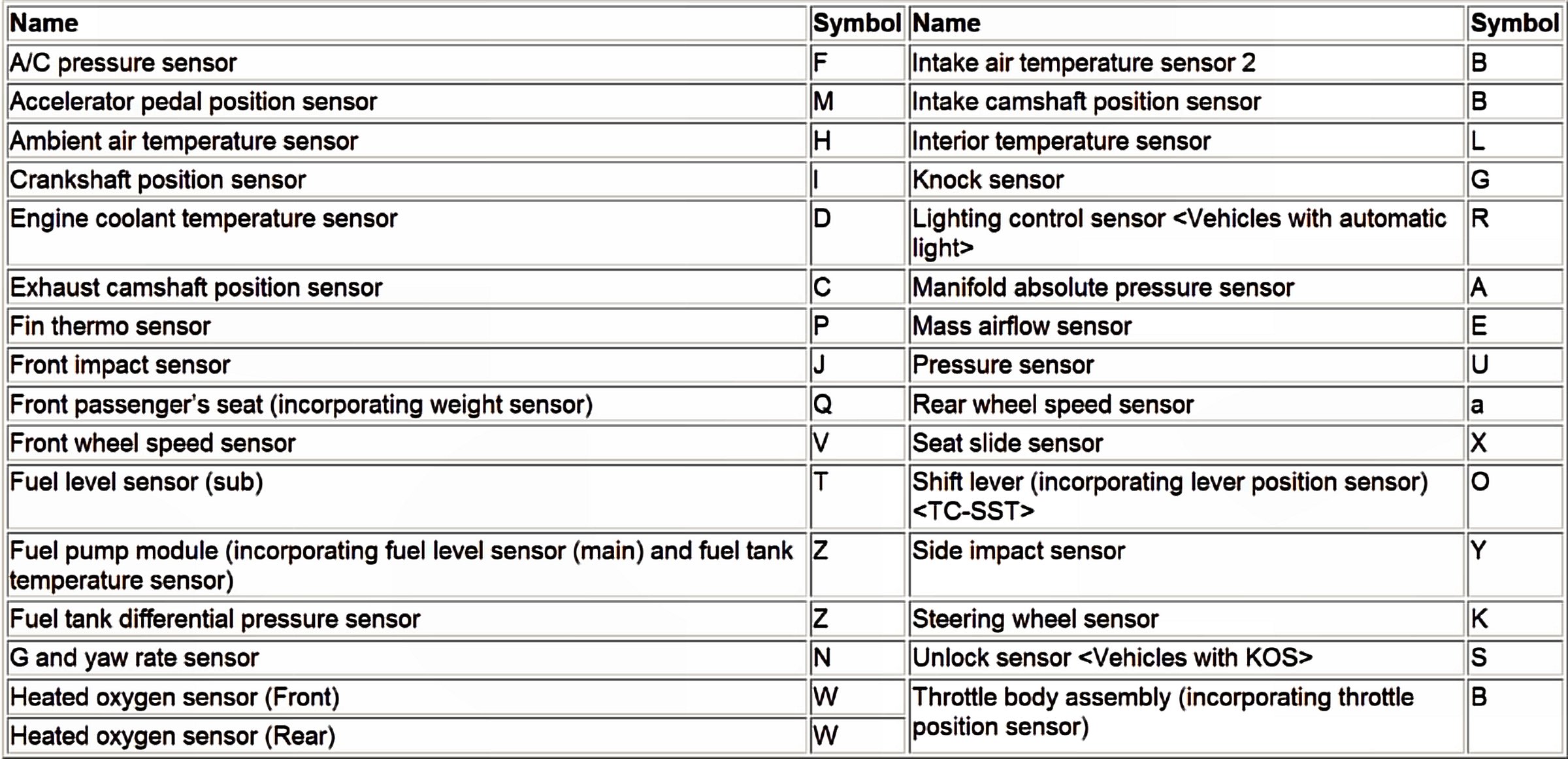

Legend:
