Control Assembly: Testing and Inspection
INSPECTIONFIN THERMO SENSOR CHECK

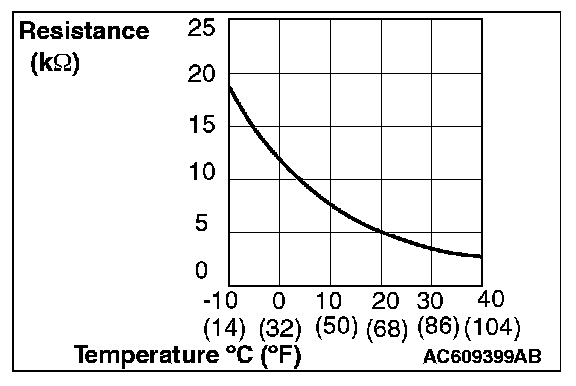

Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown.
NOTE: The temperature should be within the shown range.
