General Specifications

GENERAL SPECIFICATIONS








CYLINDER BLOCK





PISTONS





PISTON PINS





PISTON RINGS





CONNECTING RODS





CRANKSHAFT





CAMSHAFT








VALVE TIMING

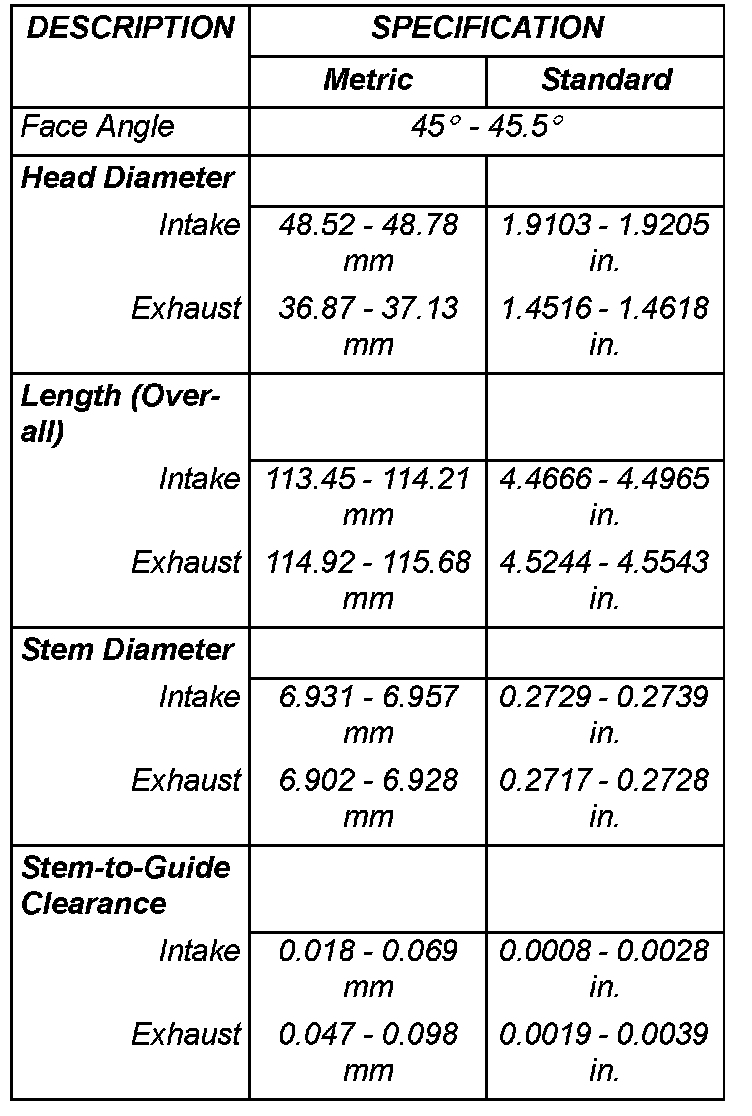

VALVES

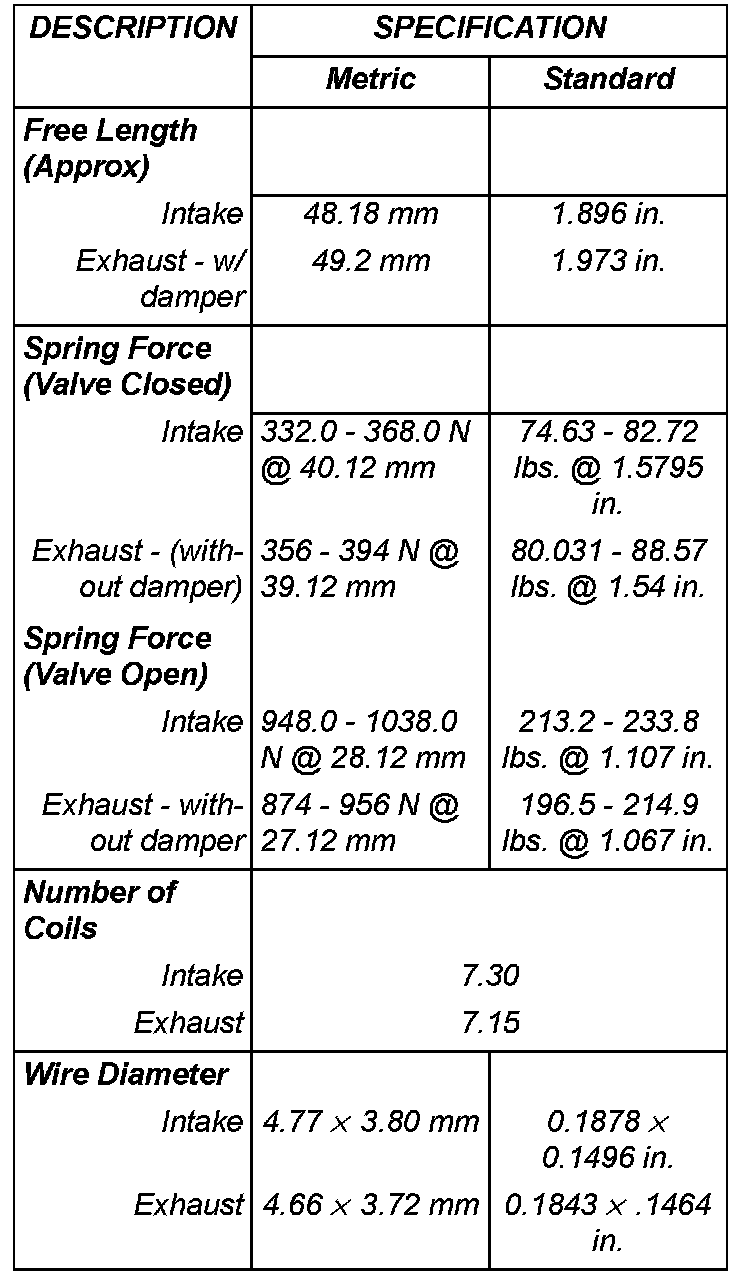

VALVE SPRING








CYLINDER HEAD





OIL PUMP





OIL PRESSURE
