Home >> Mitsubishi >> 2009 >> Raider 2WD V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 42RLE

42RLE

GENERAL SPECIFICATIONS





GEAR RATIOS





BEARING PRELOAD (Drag Torque)





CLUTCH PACK





INPUT SHAFT





OIL PUMP CLEARANCES





GEAR TRAIN MEASUREMENTS

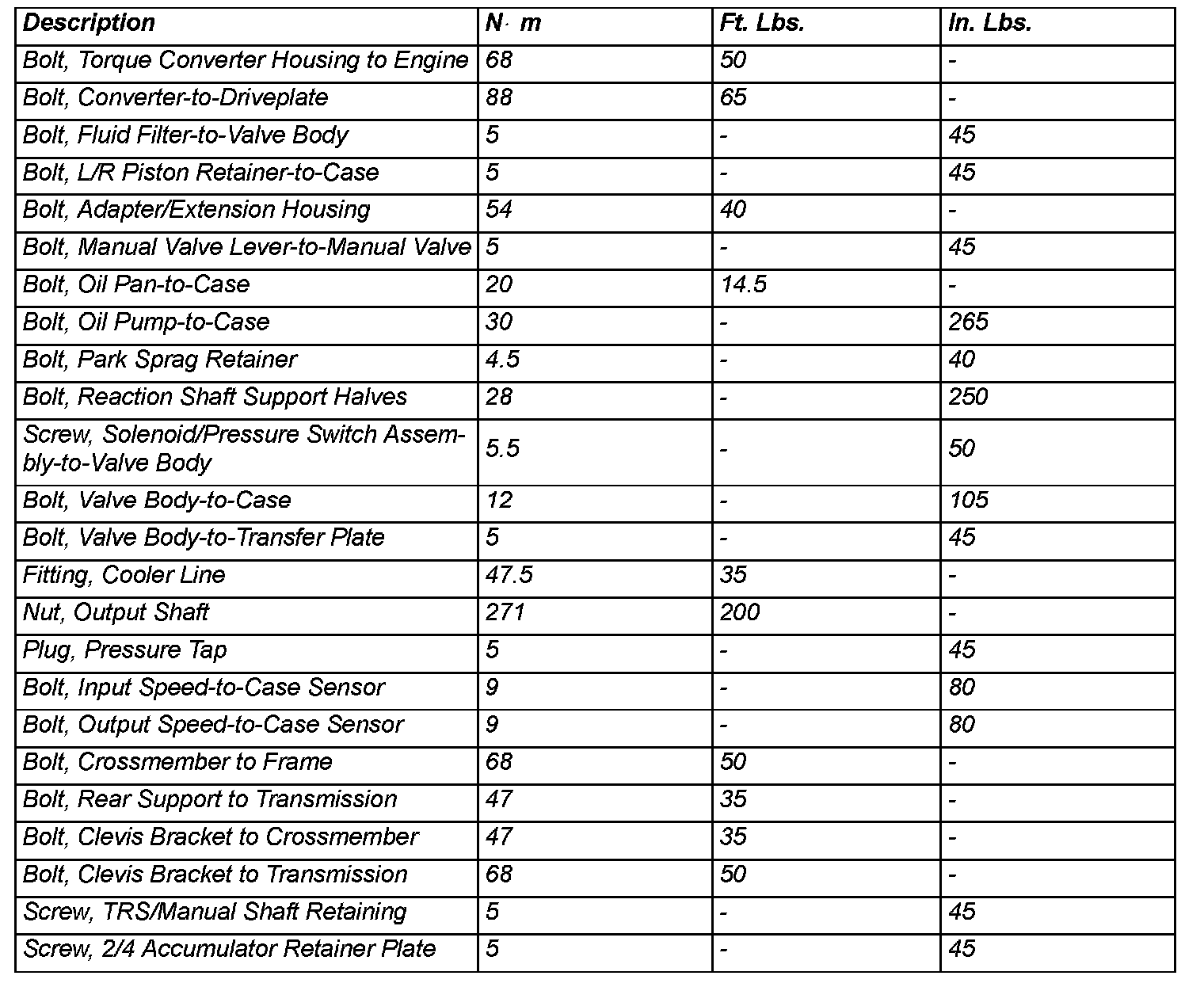

TORQUE SPECIFICATIONS
