Transmission Position Sensor/Switch: Diagrams

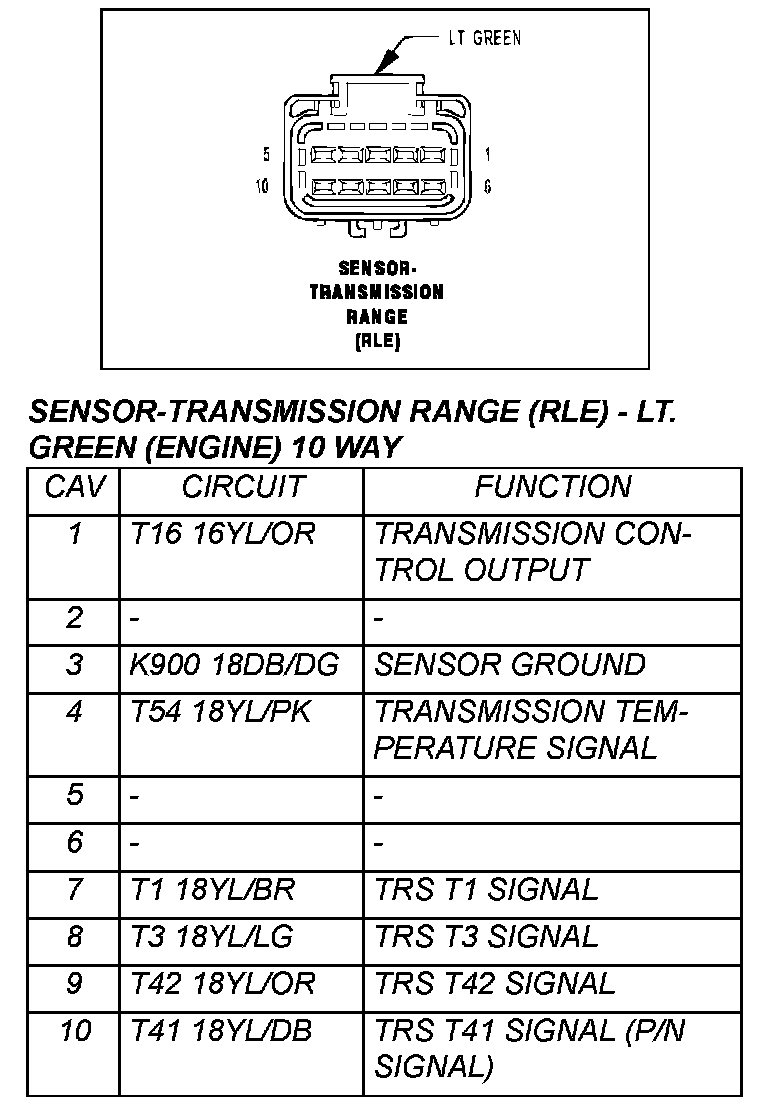

Sensor - Transmission Range (RLE) - LT. Green (Engine) 10 Way:
