Data List Reference Table

This article has been updated by technical service bulletin 09 23 002 dated April 2009.

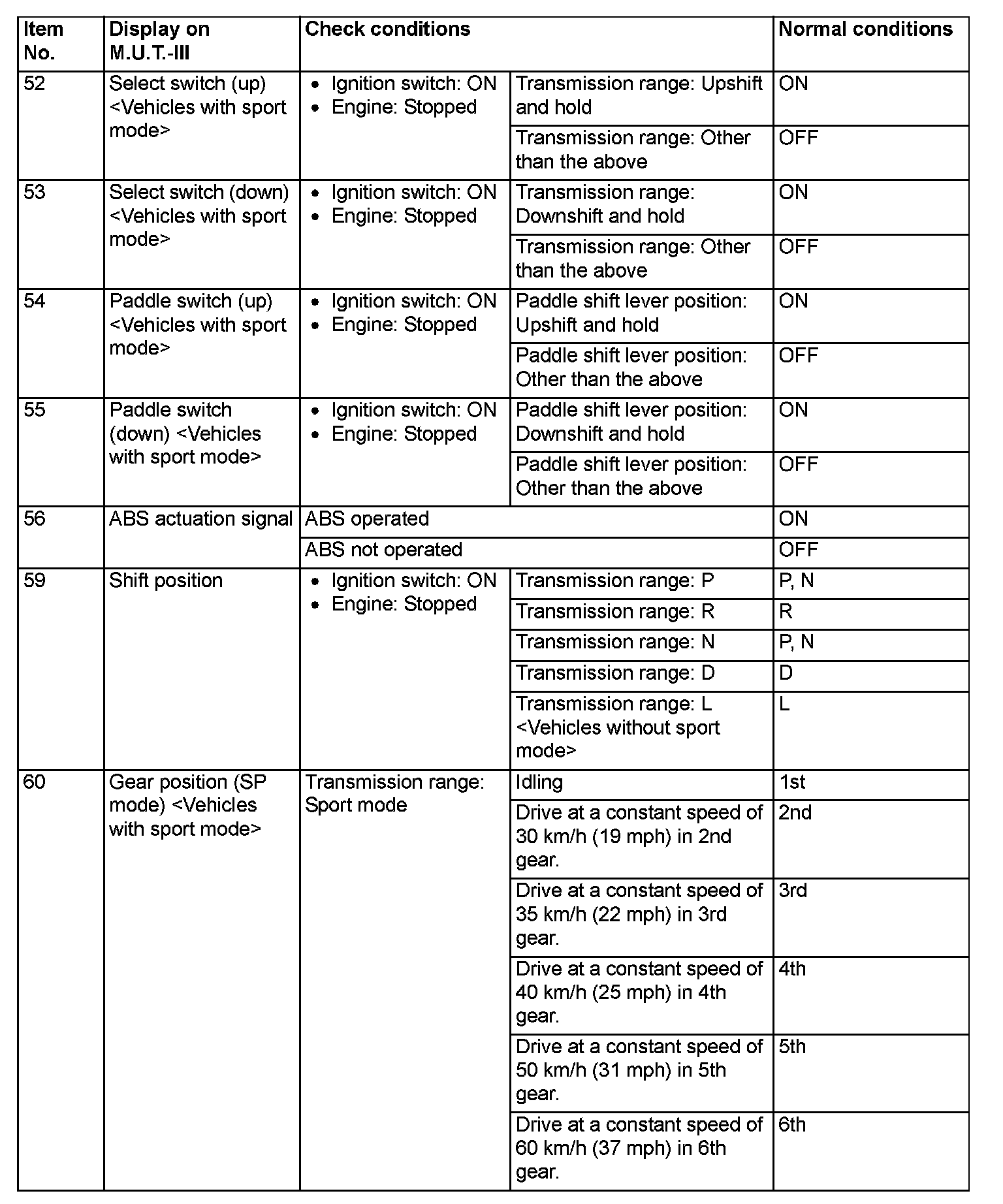

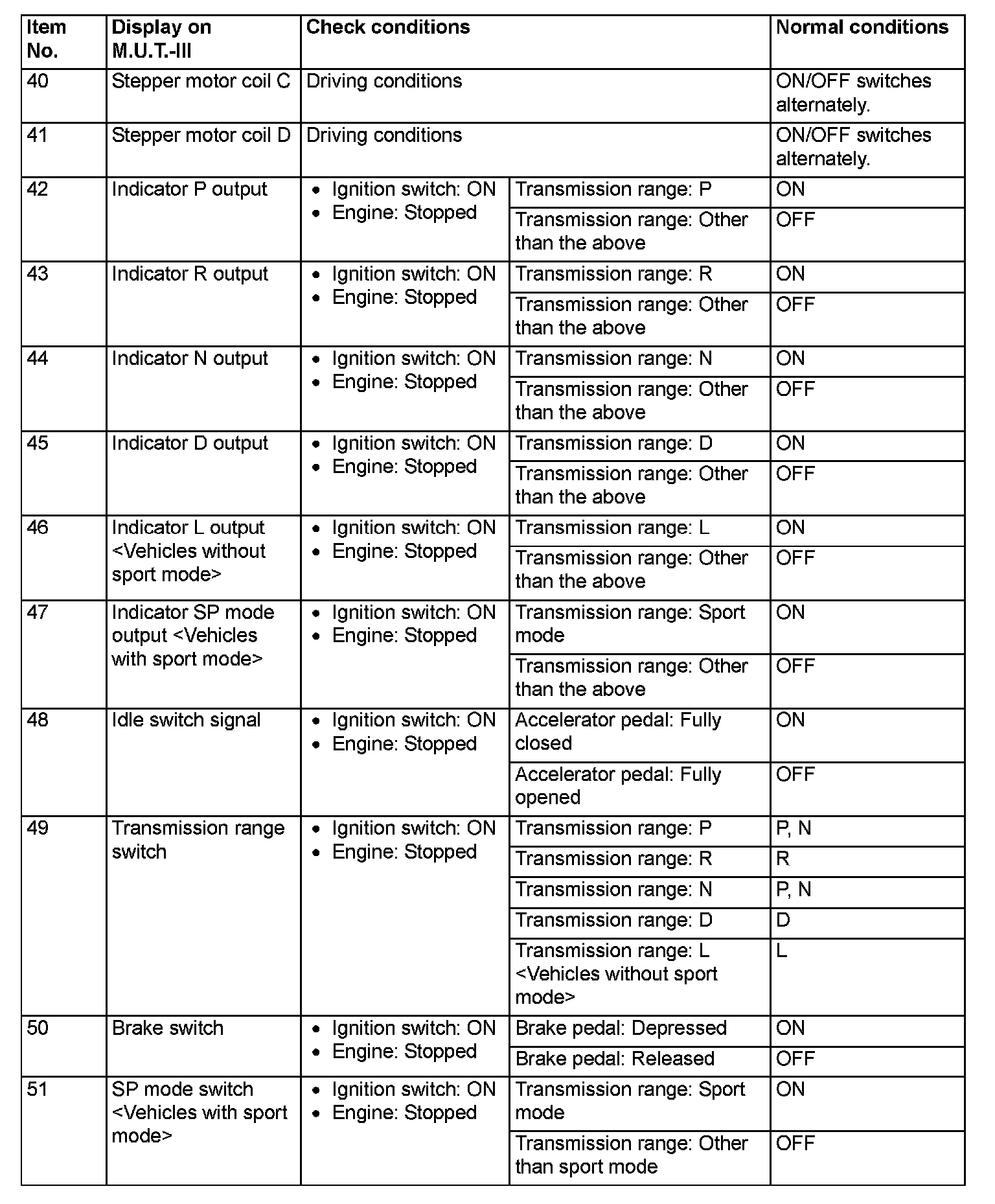

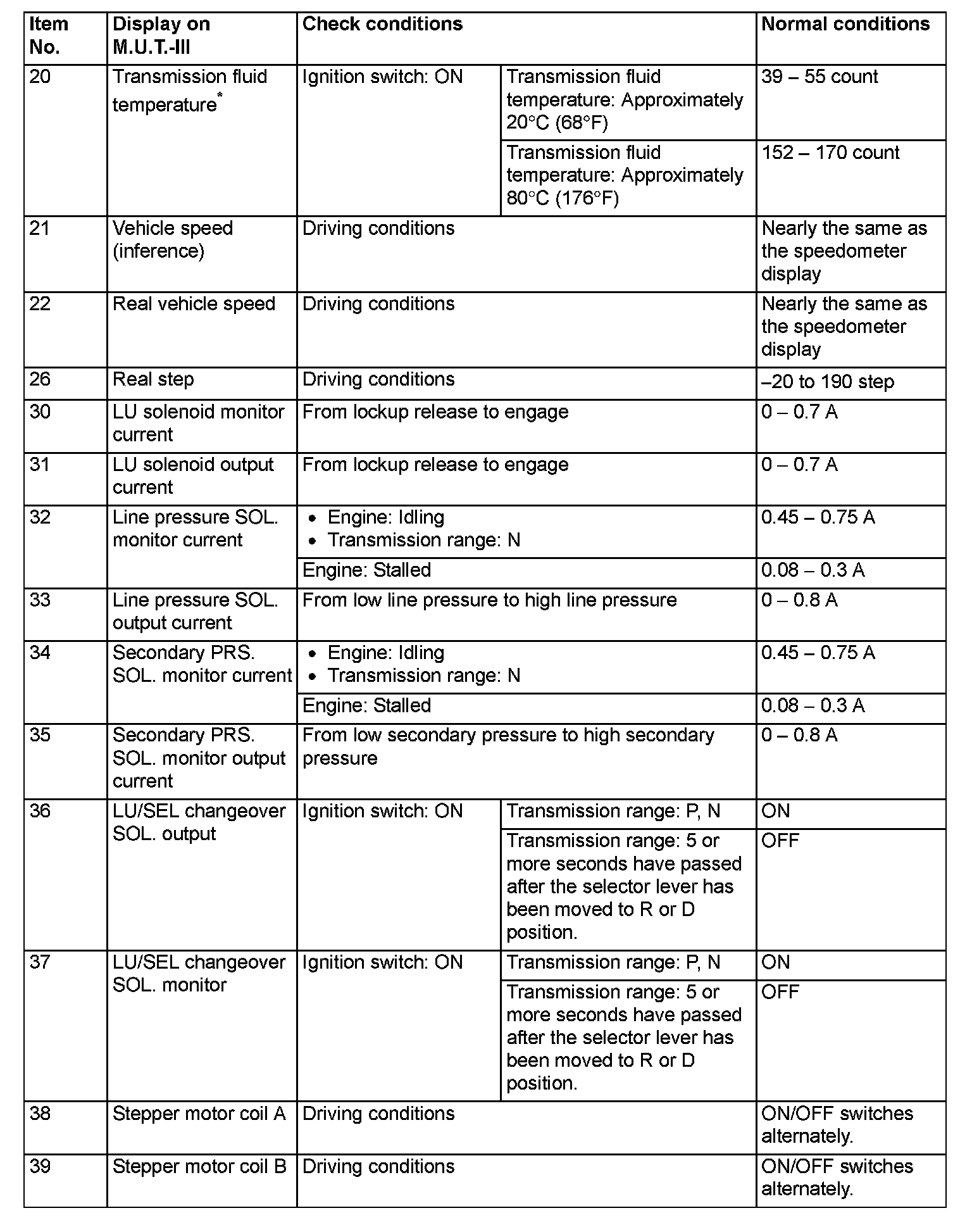

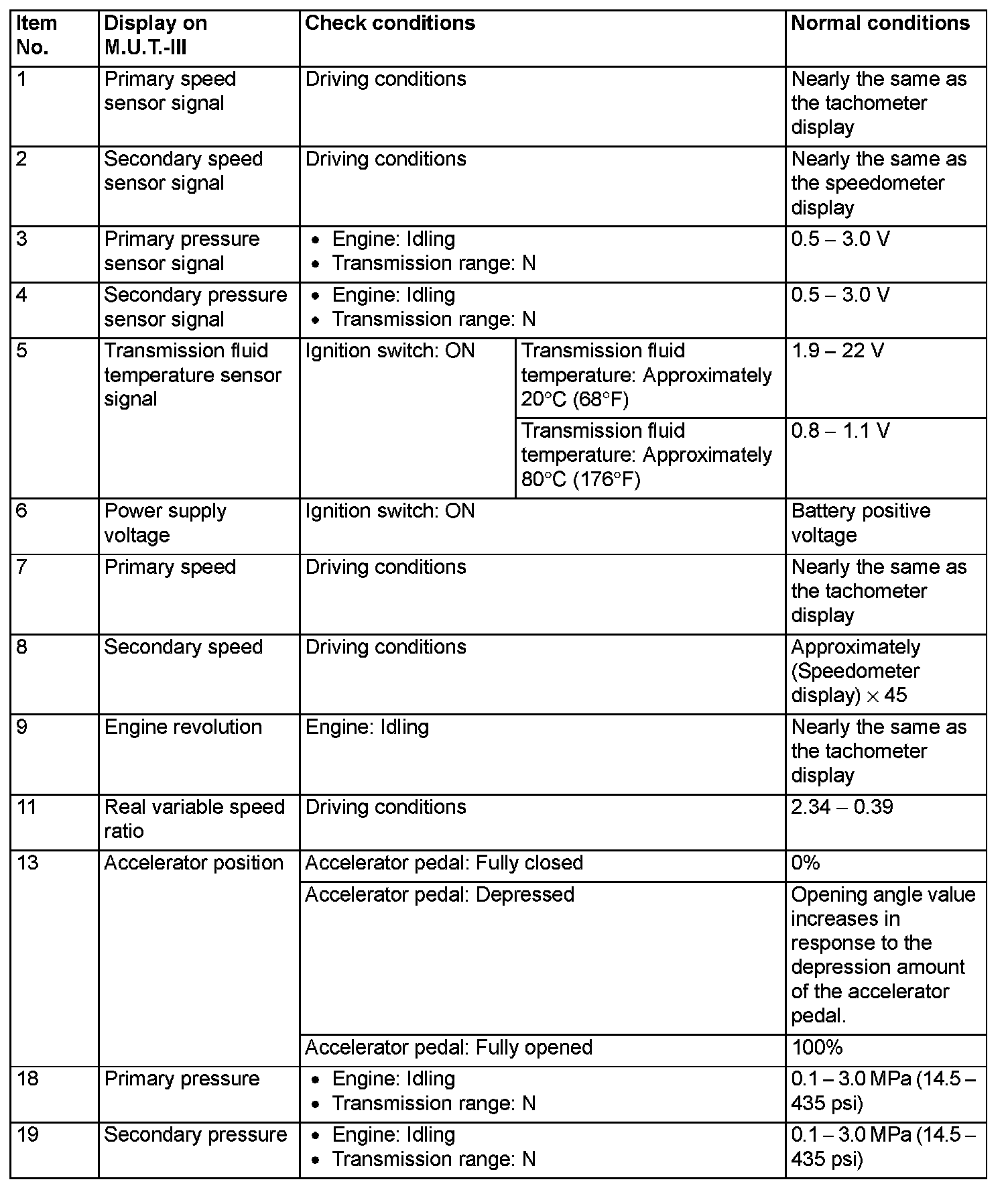

DATA LIST REFERENCE TABLE

Part 1:

Part 2:

Part 3:

Part 4:

NOTE: *: Relation between fluid temperature and COUNT is shown to the characteristics chart.
