Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]


Pre-removal & Post-installation Operation:

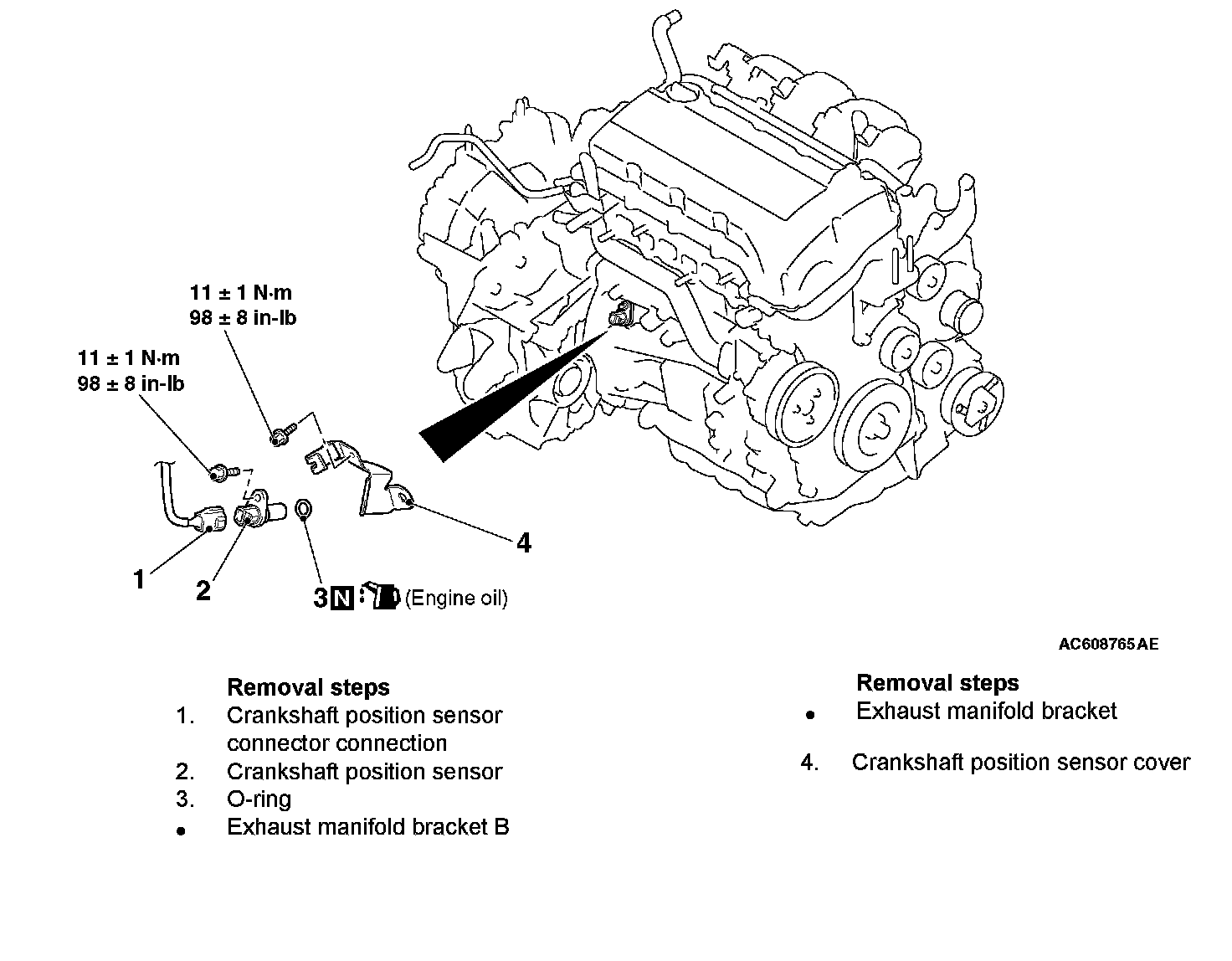

Removal Steps 1-4:
