Home >> Mitsubishi >> 2009 >> Lancer L4-2.4L (4B12) >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Overhaul

Overhaul

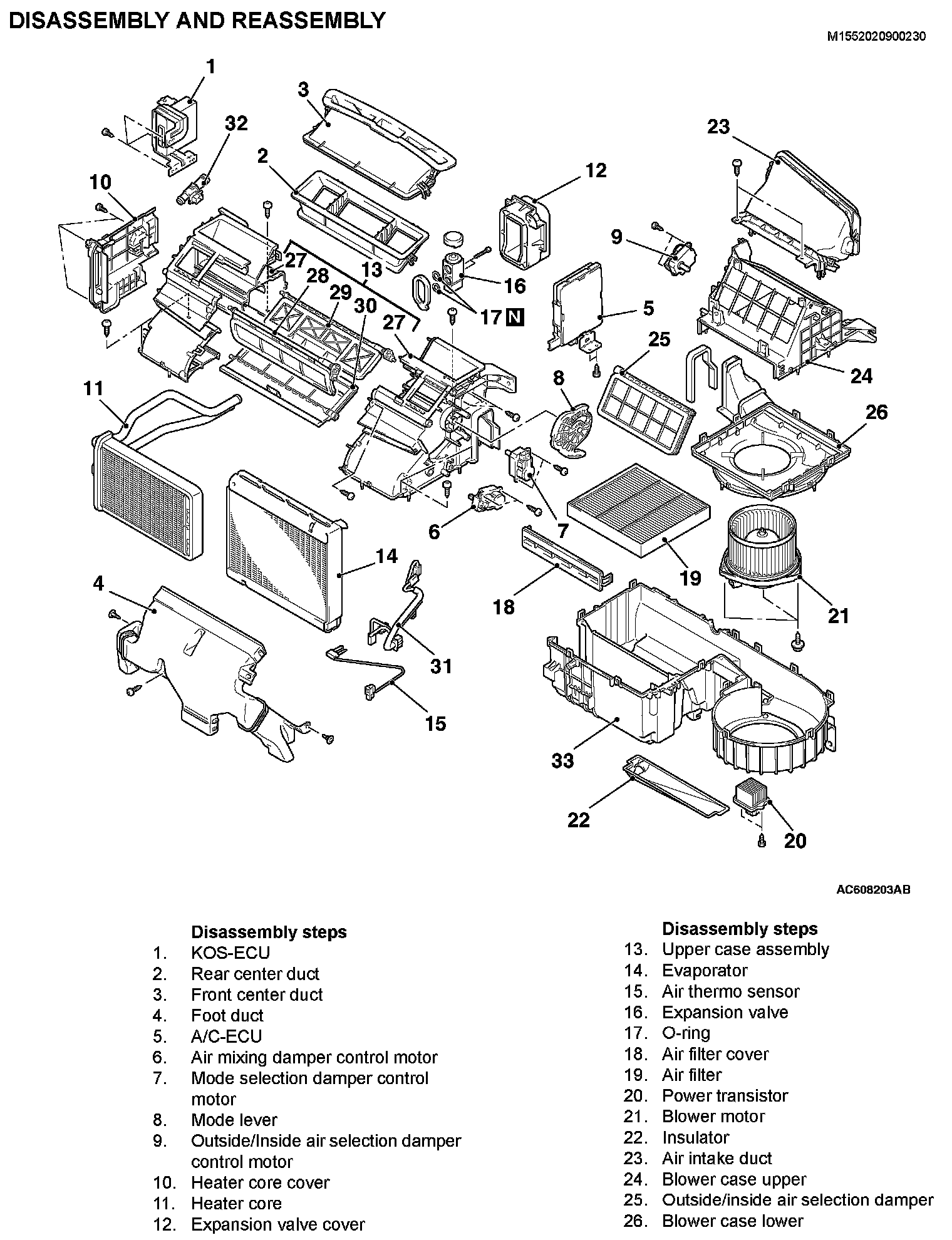

Disassembly Steps 1-33 (Part 1):

Disassembly Steps 1-33 (Part 2):
