Home >> Mitsubishi >> 2009 >> Lancer L4-2.4L (4B12) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data List Reference Table >> Wireless Control Module

Wireless Control Module

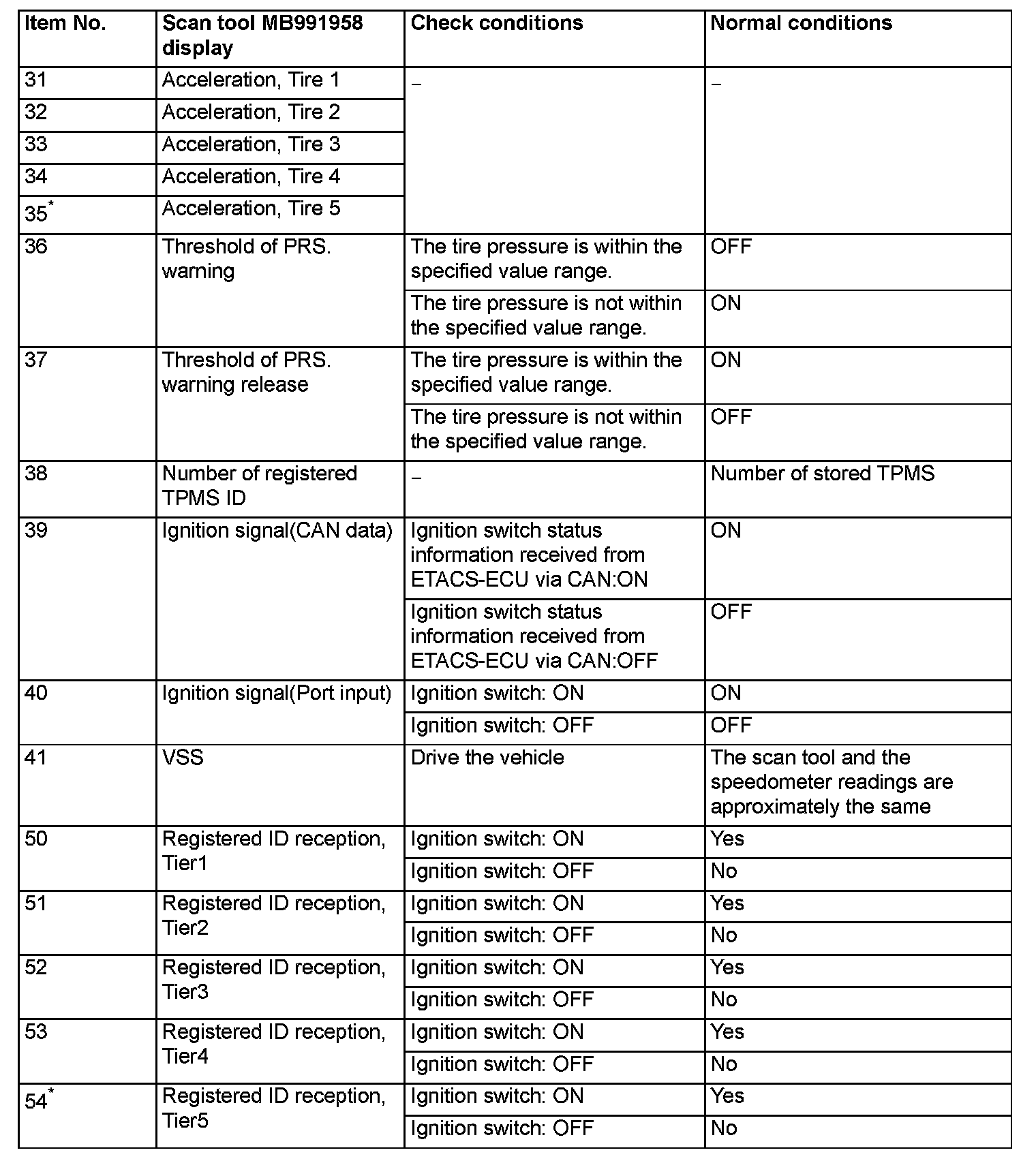

Data List Reference Table (Part 1):

Data List Reference Table (Part 2):

Data List Reference Table (Part 3):
