Lighting Control Sensor
Lighting Control Sensor

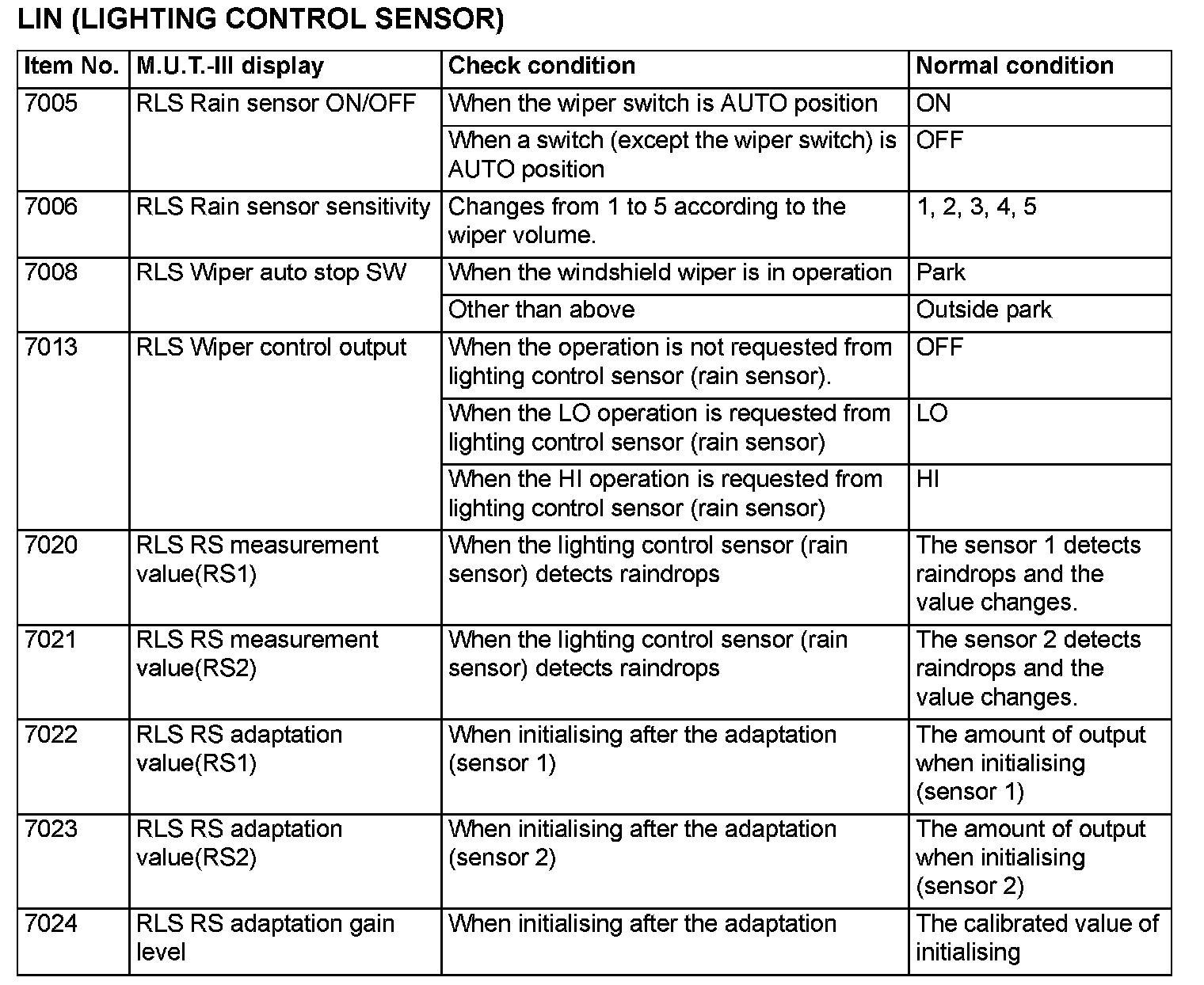

DATA LIST REFERENCE TABLE
LIN (LIGHTING CONTROL SENSOR)
Data List Reference Table:
