Power Window Switch: Testing and Inspection

POWER WINDOW SWITCH CONTINUITY CHECK

Remove the power window switch (Refer to interior, Door trim).

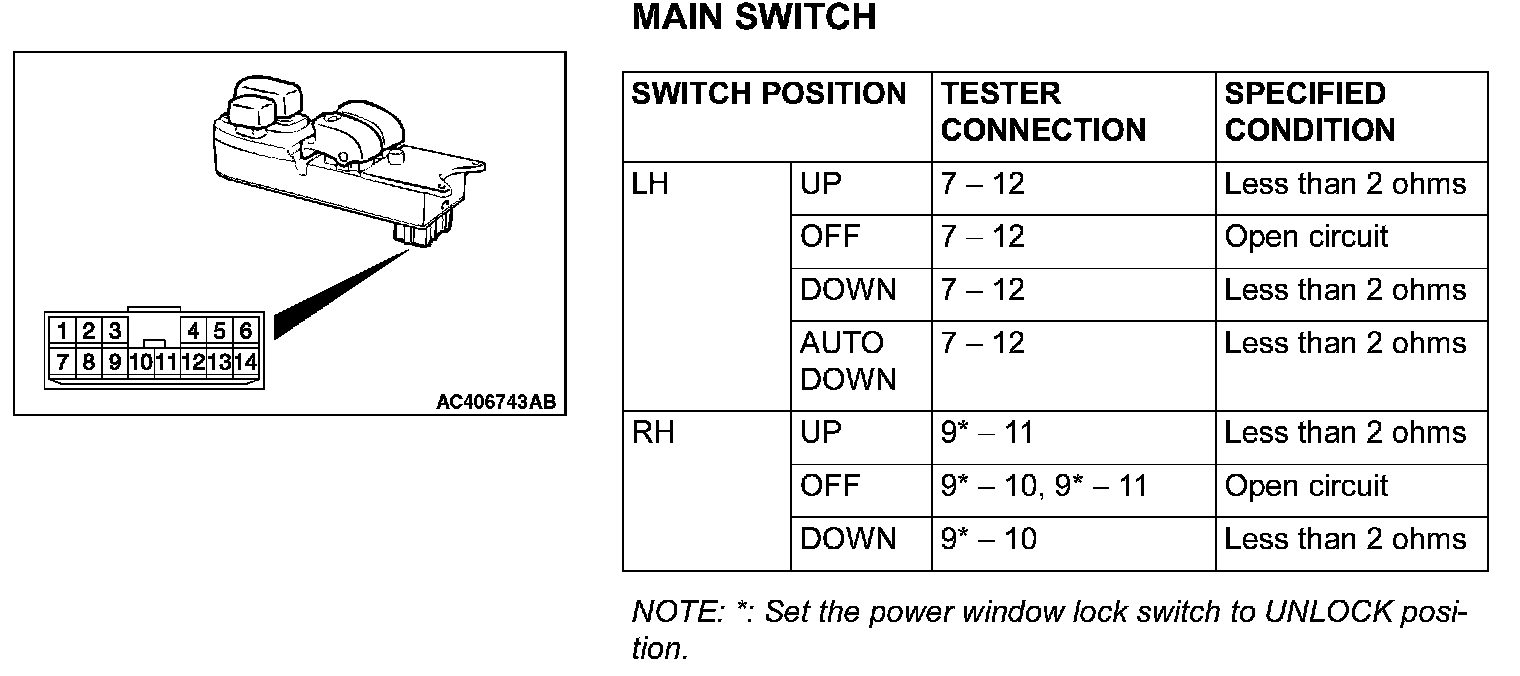

MAIN SWITCH

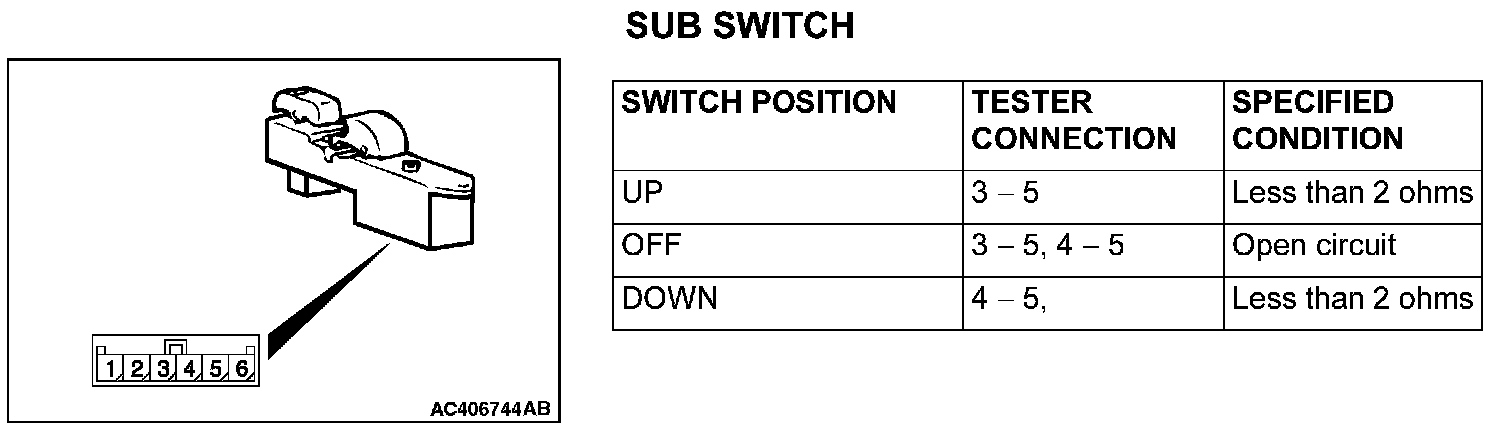

SUB SWITCH
