Ignition Switch: Testing and Inspection
INSPECTIONIGNITION SWITCH CONTINUITY CHECK

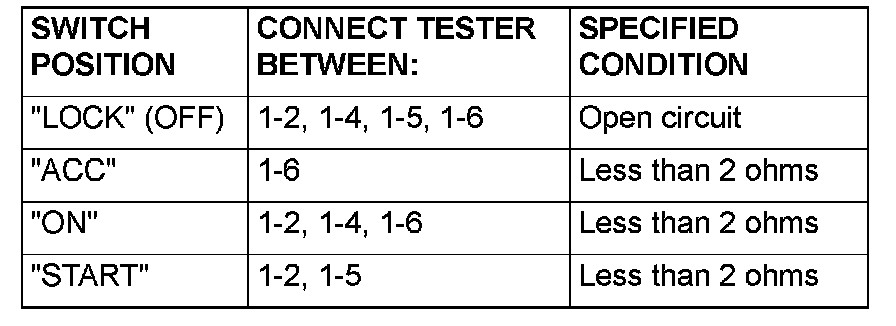

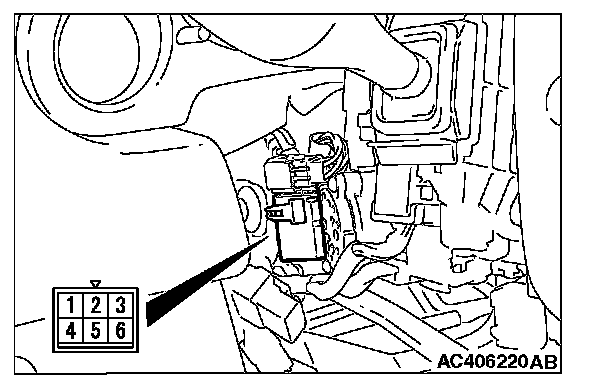

Disconnect ignition switch connector C-308 without removing the ignition switch and steering lock cylinder. Then check the continuity.
IGNITION SWITCH CONTINUITY CHECK
Disconnect ignition switch connector C-308 without removing the ignition switch and steering lock cylinder. Then check the continuity.
