Mode 6 Data

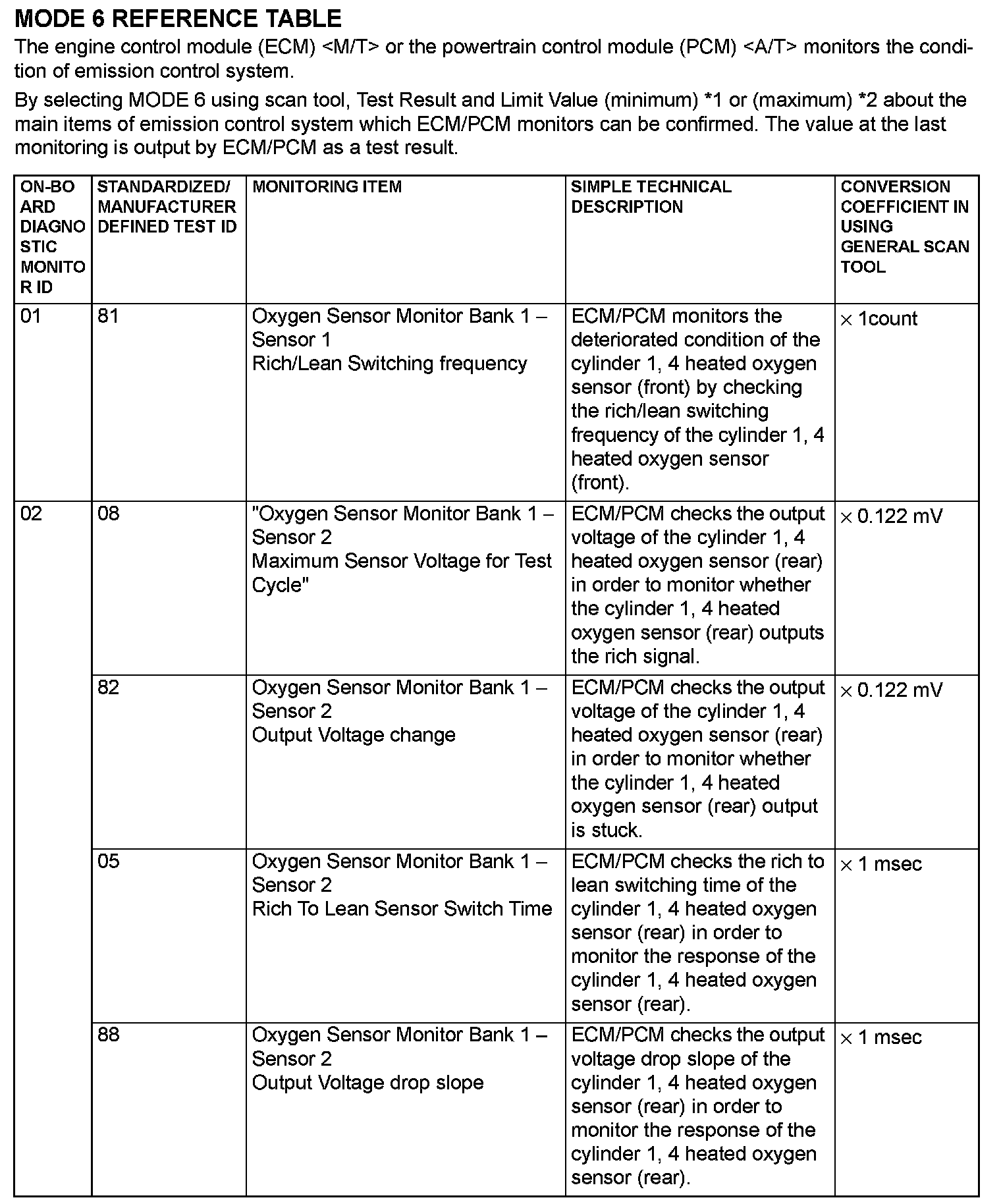

Mode 6 Reference Table (Part 1):

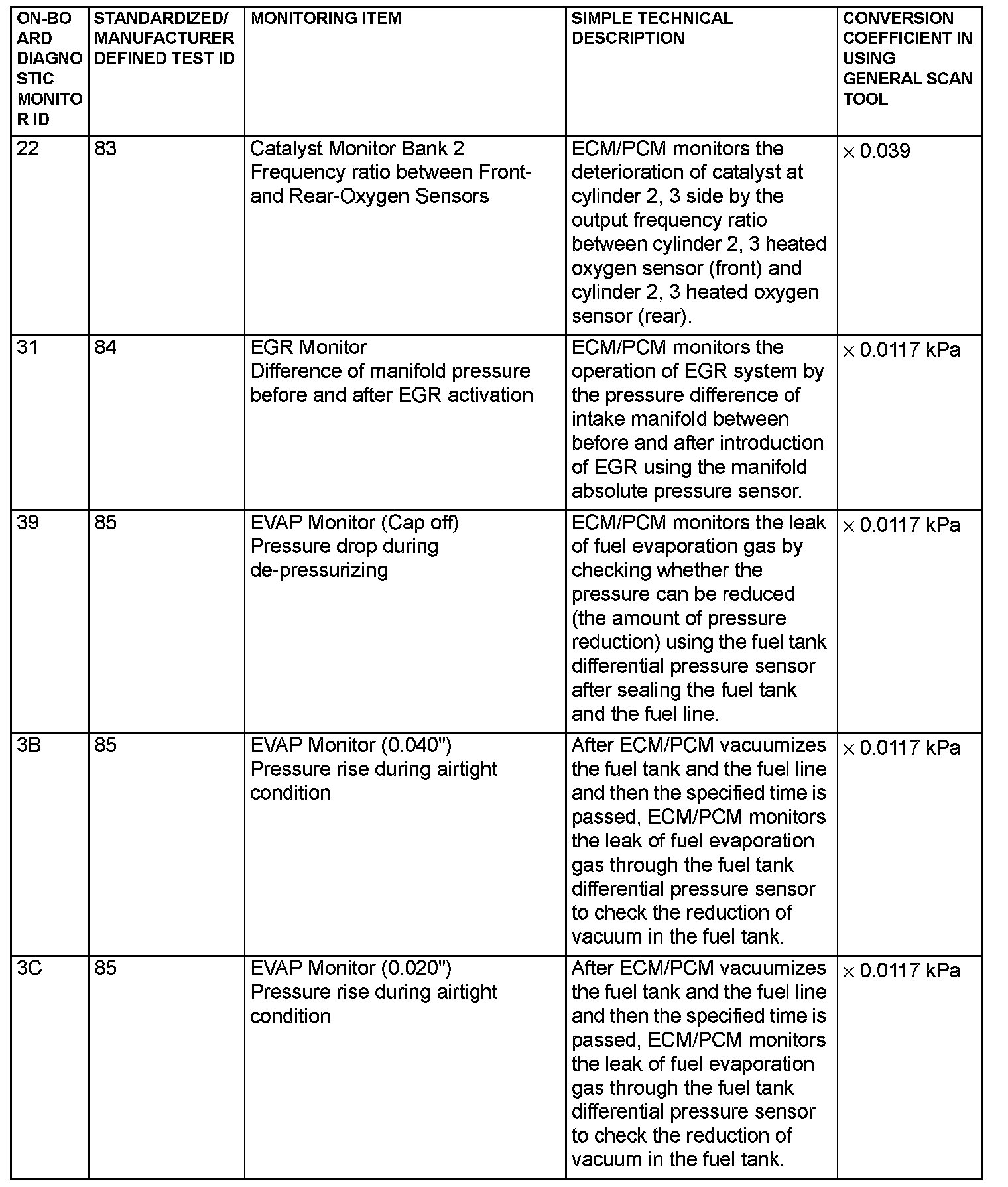

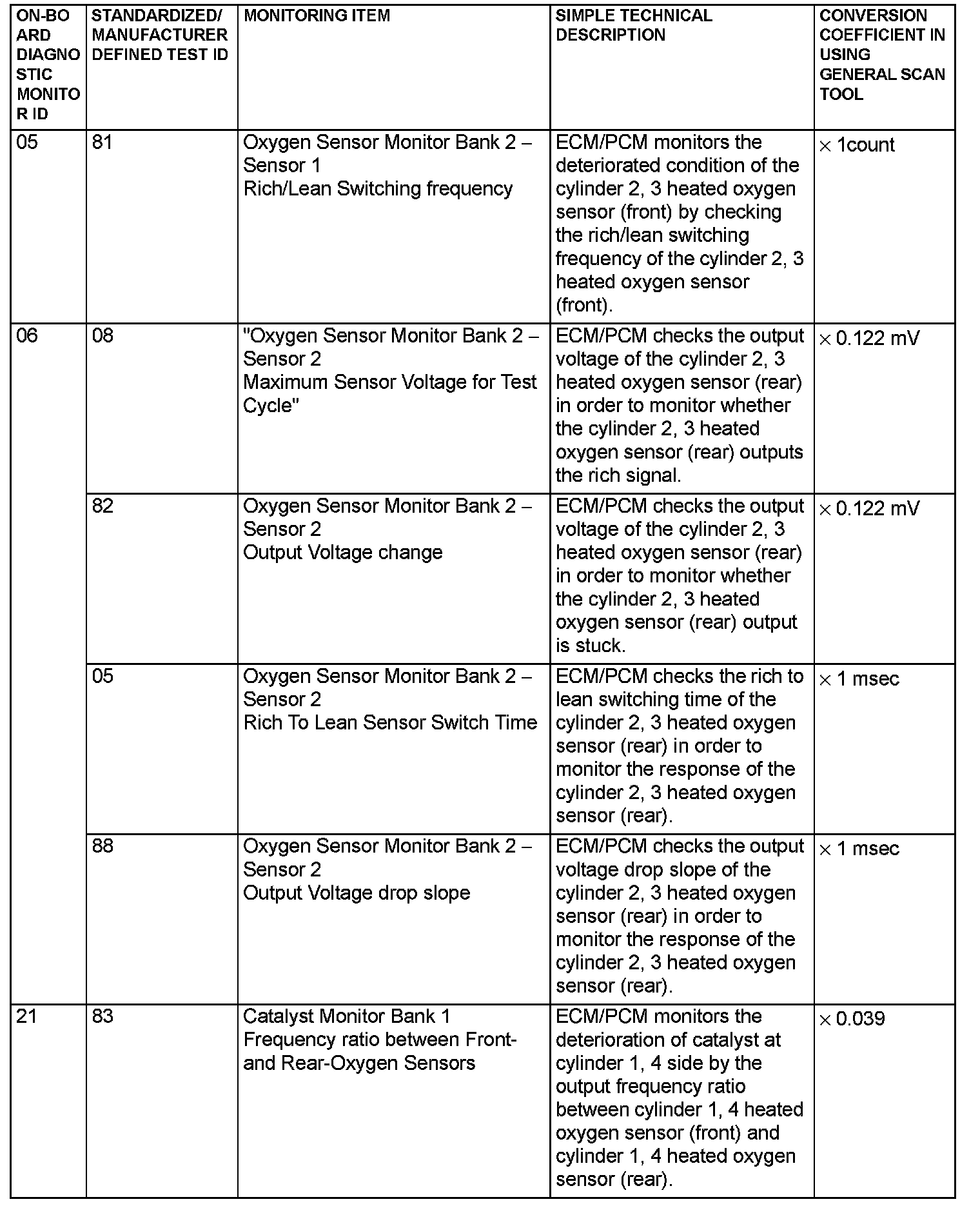

Mode 6 Reference Table (Part 2):

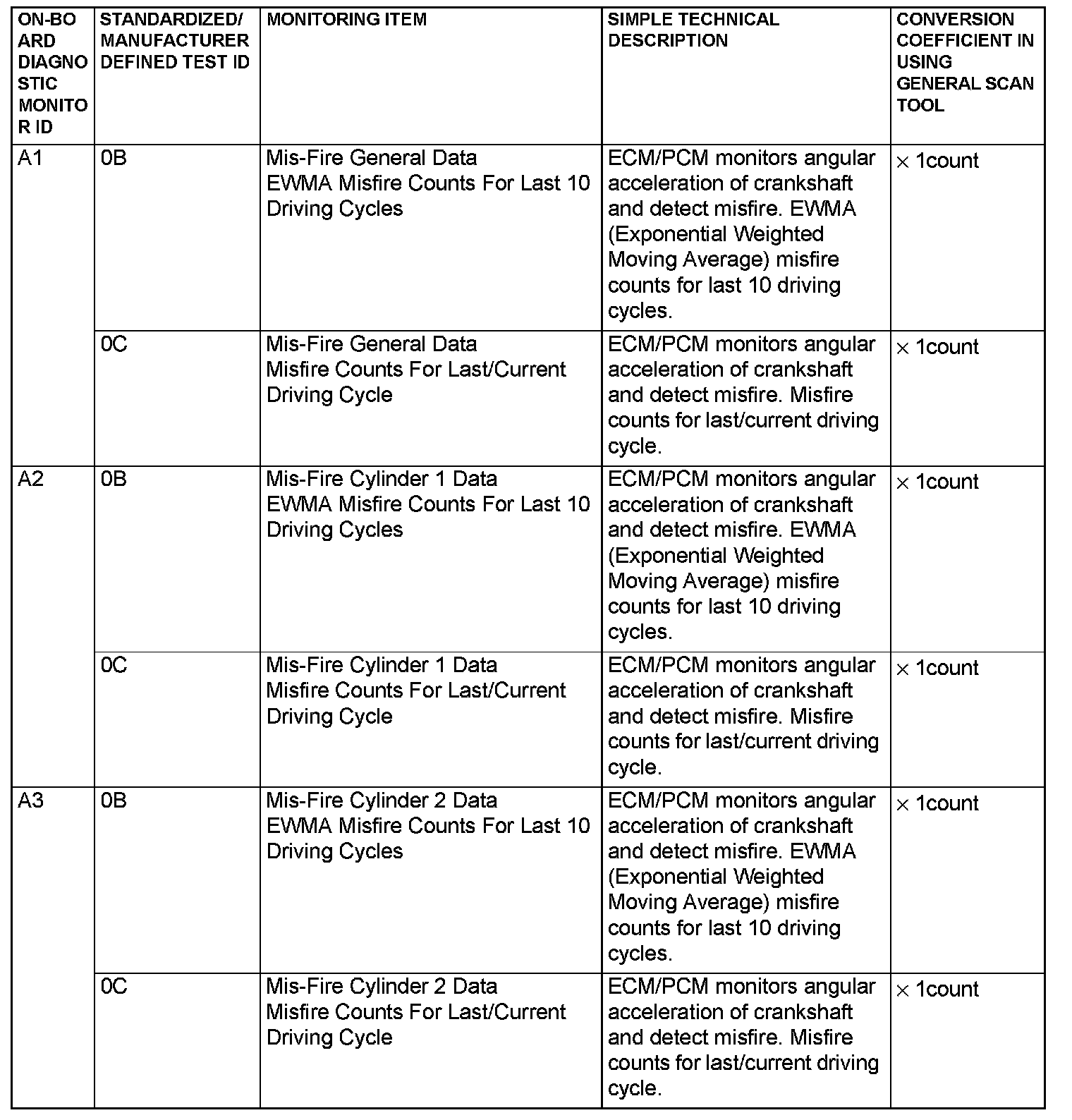

Mode 6 Reference Table (Part 3):

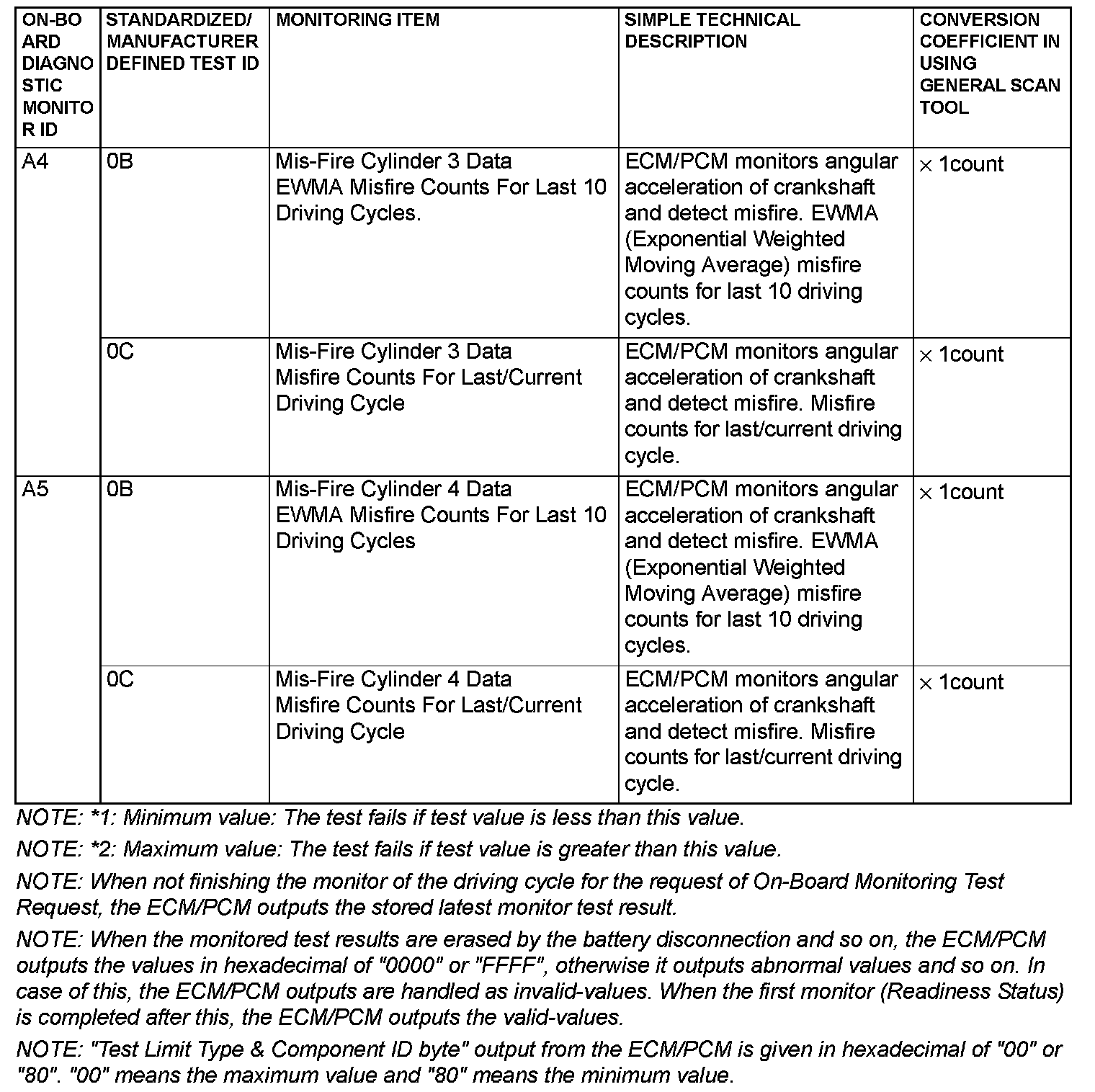

Mode 6 Reference Table (Part 4):



Mode 6 Reference Table (Part 5):
