Home >> Mitsubishi >> 2008 >> Raider 2WD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Camshaft Position Sensor >> Locations

Camshaft Position Sensor: Locations

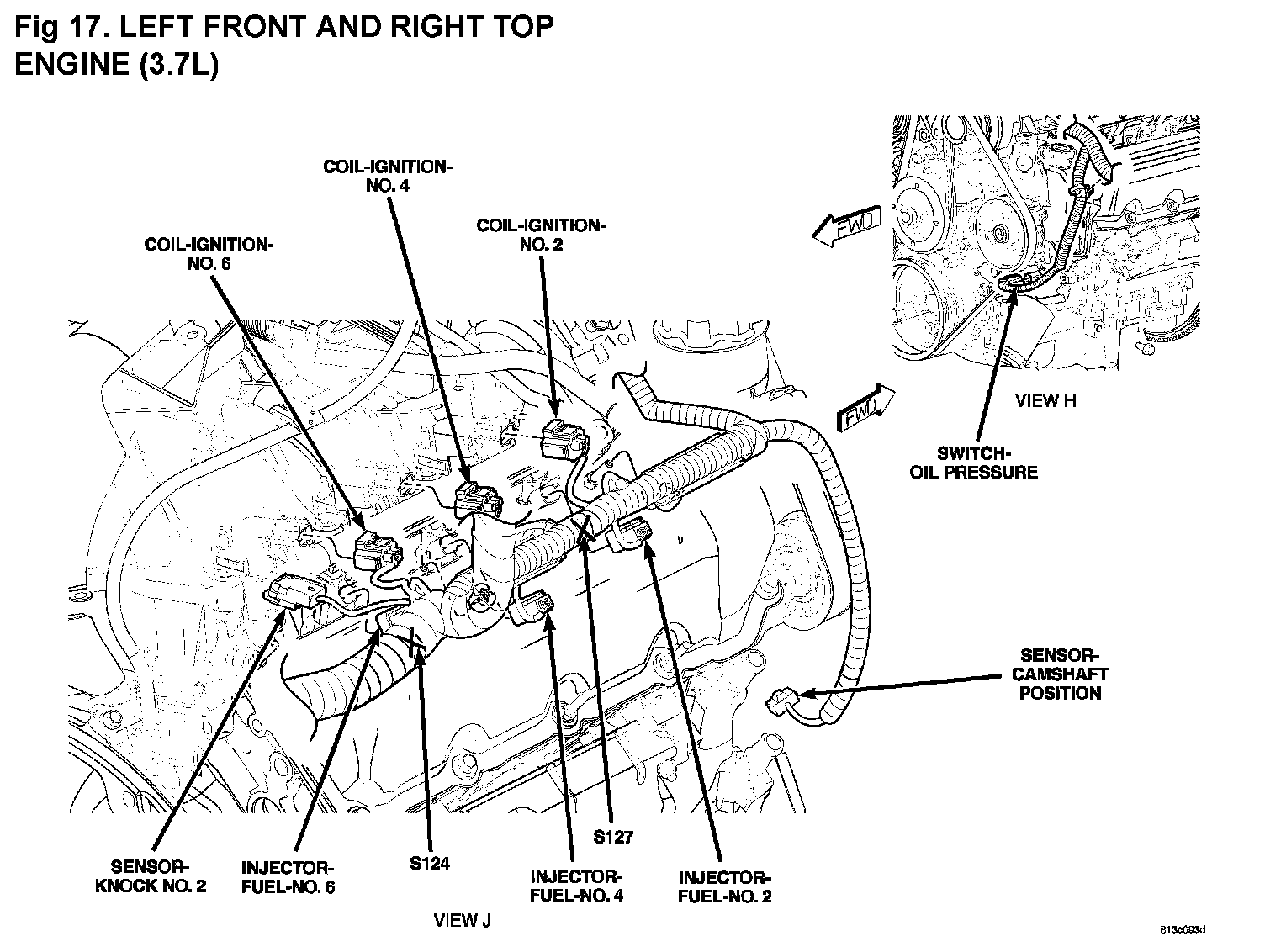

Fig. 17 Left Front And Right Top Engine:
