Removal and Replacement

KNOCK SENSOR

REMOVAL AND INSTALLATION

CAUTION
When the knock sensor is replaced, initialize the learned value using scan tool.

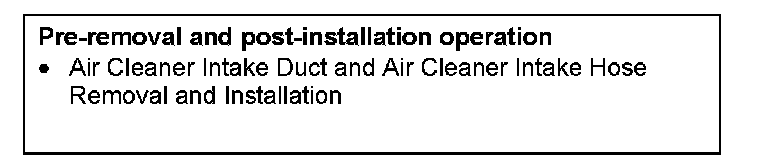

Pre-removal & Post-installation Operation:

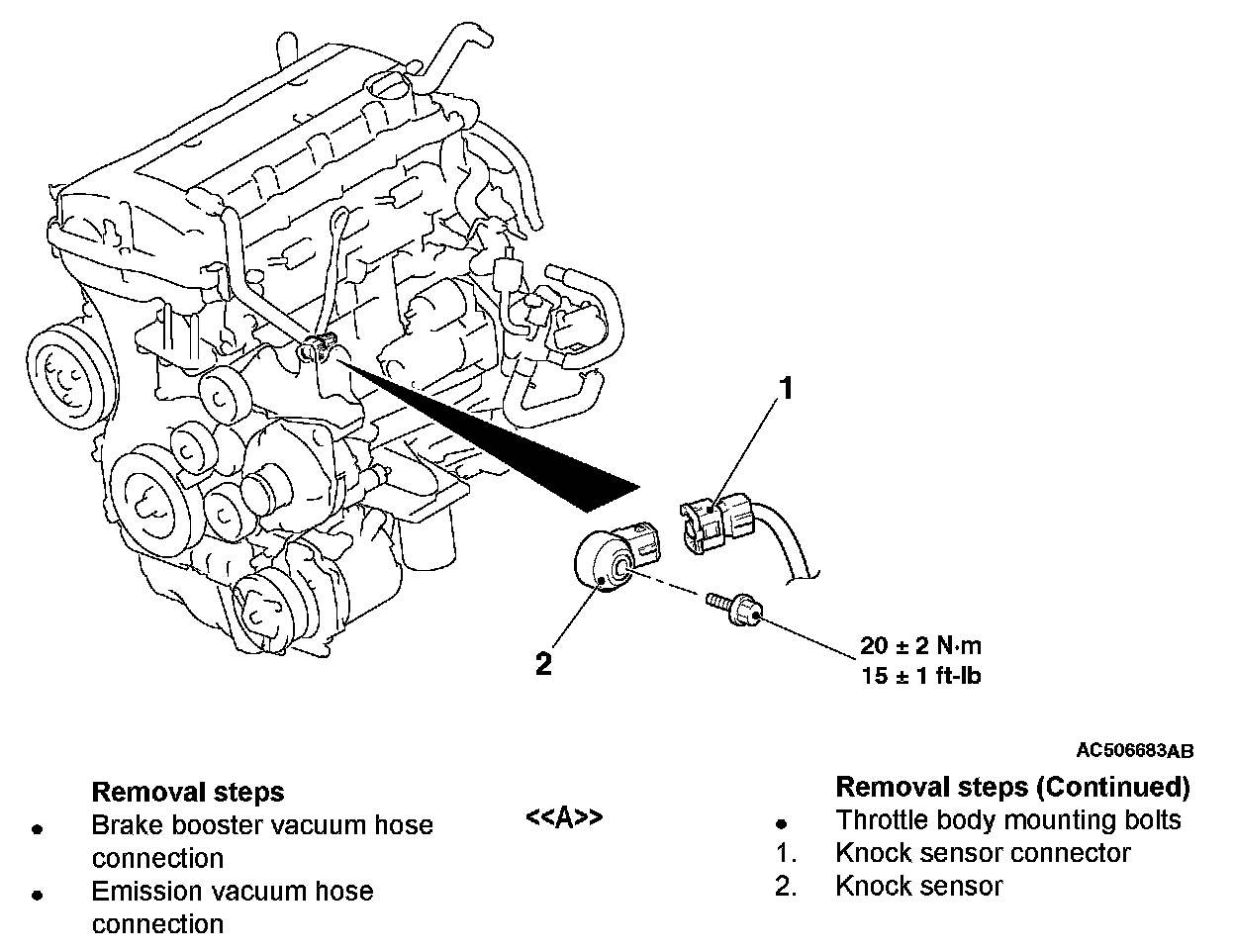

Removal Steps 1-2:

REMOVAL SERVICE POINT

[[A]] THROTTLE BODY MOUNTING BOLTS REMOVAL
Remove the throttle body mounting bolts and put the throttle body aside so as not to interfere the knock sensor connector disconnection.
