Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION SENSOR
REMOVAL AND INSTALLATION

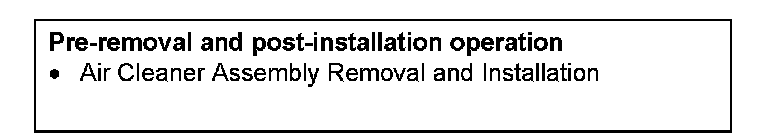

Pre-removal & Post-installation Operation:

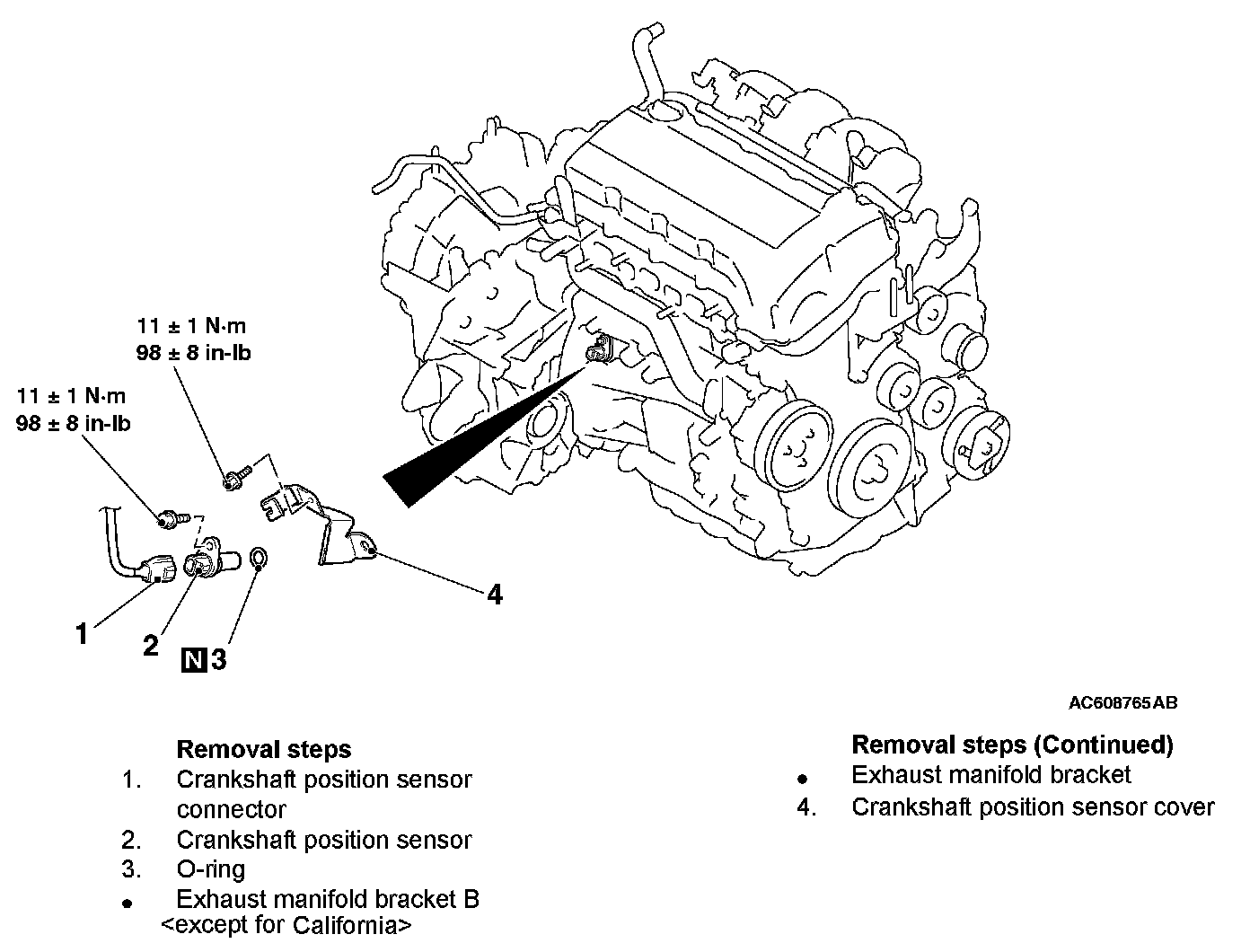

Removal Steps 1-4:
