Camshaft Position Sensor: Service and Repair

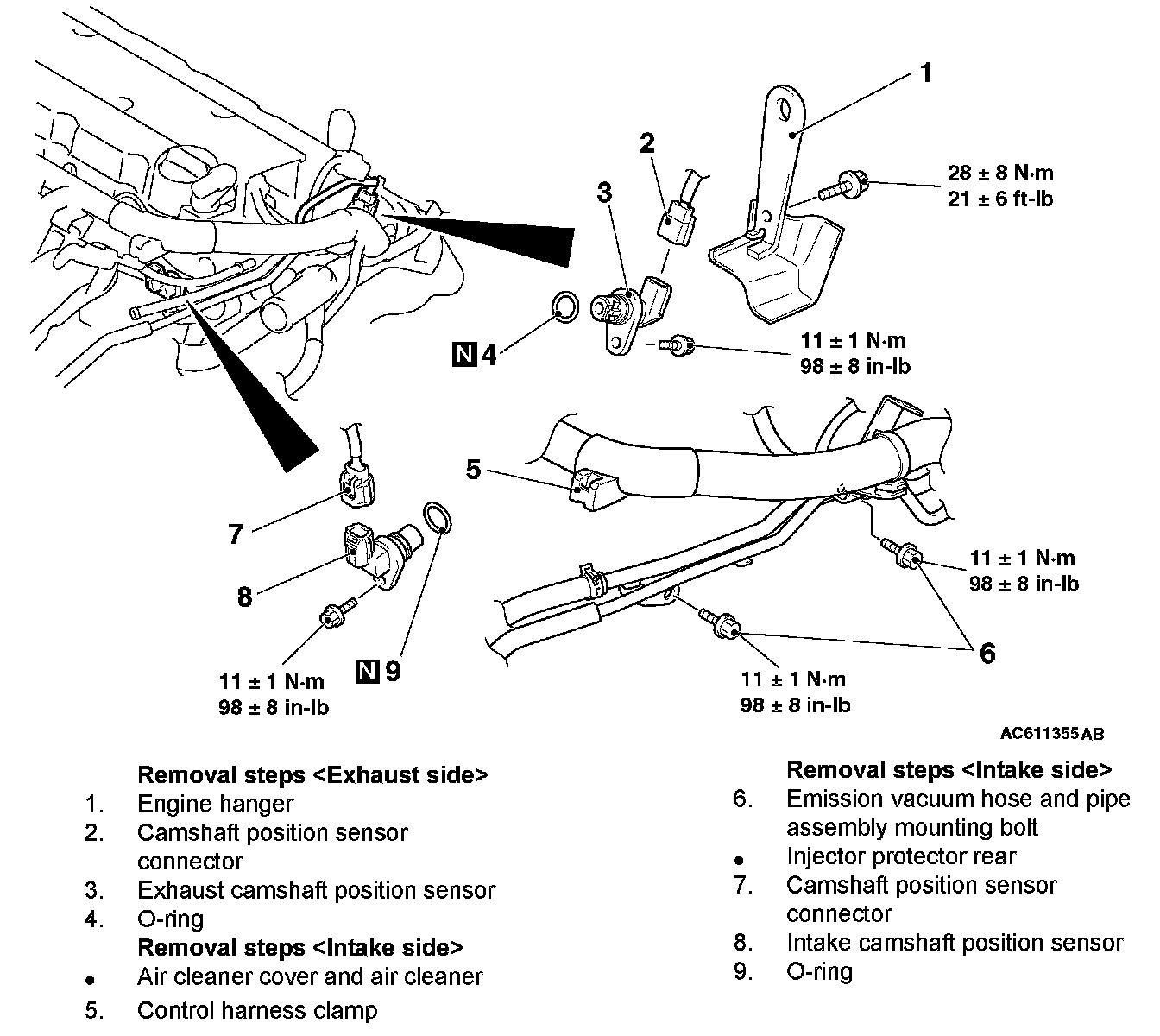

CAMSHAFT POSITION SENSOR
REMOVAL AND INSTALLATION
Removal Steps 1-9:
