Home >> Mitsubishi >> 2008 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

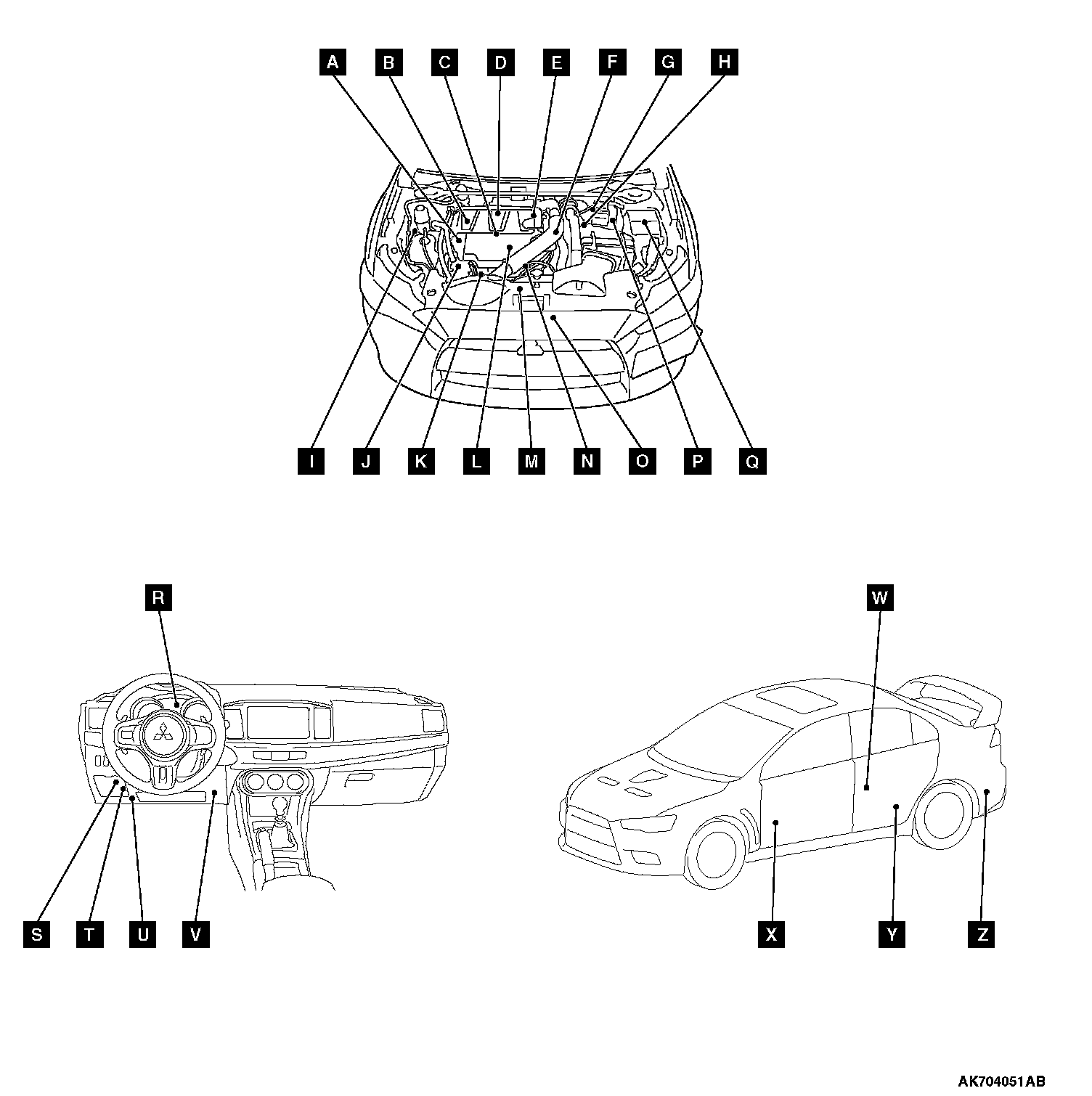

Overall View:

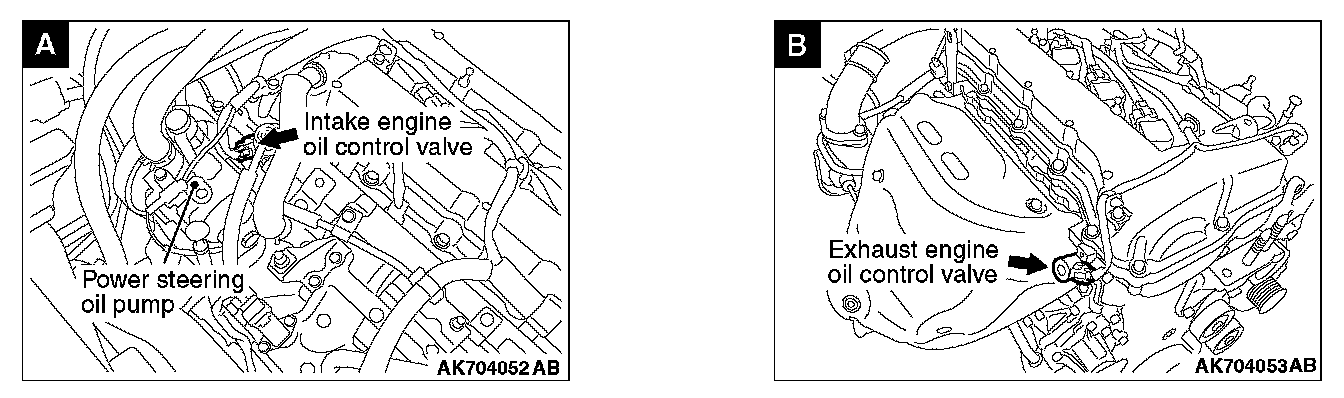

View A-B:

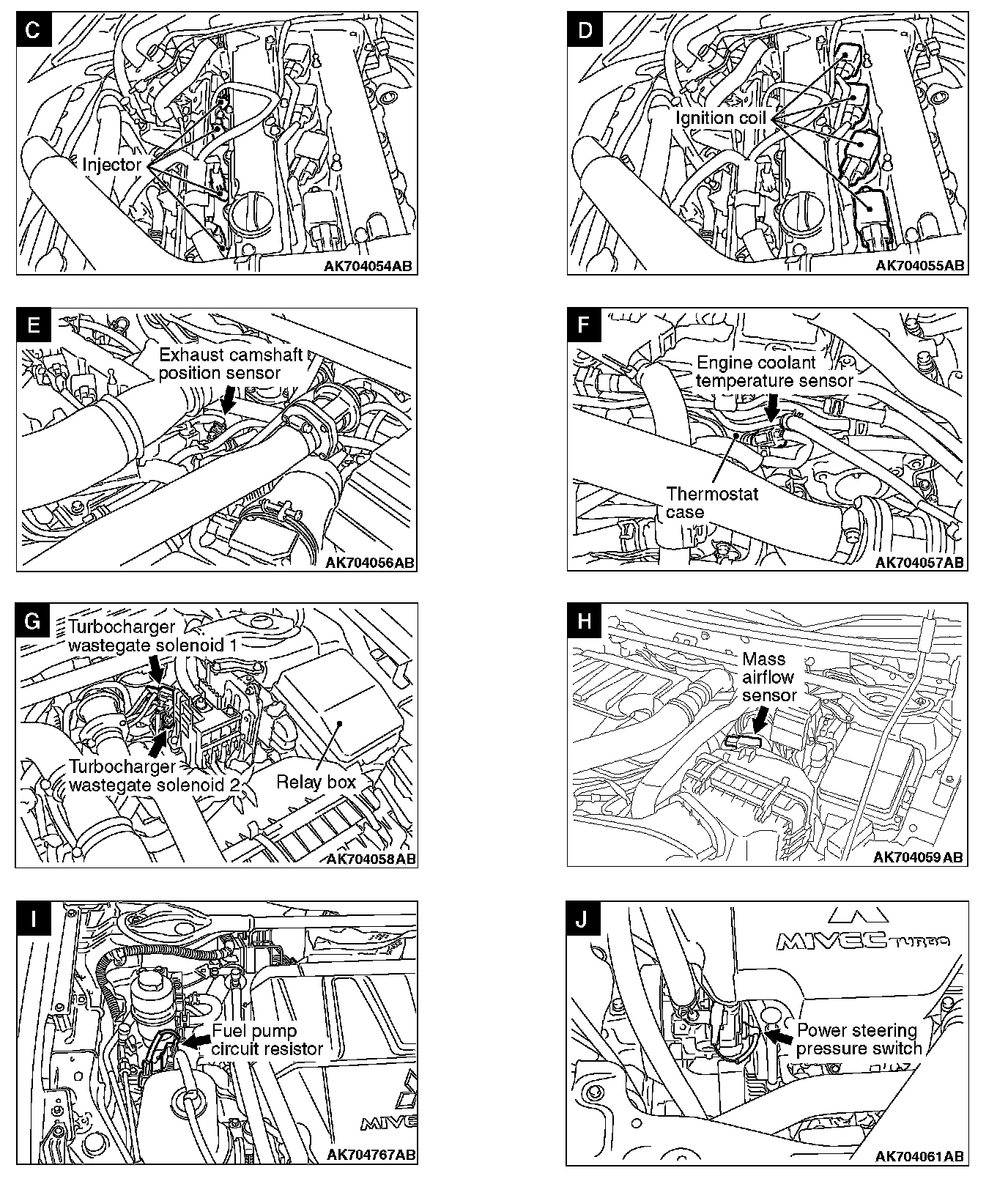

View C-J:

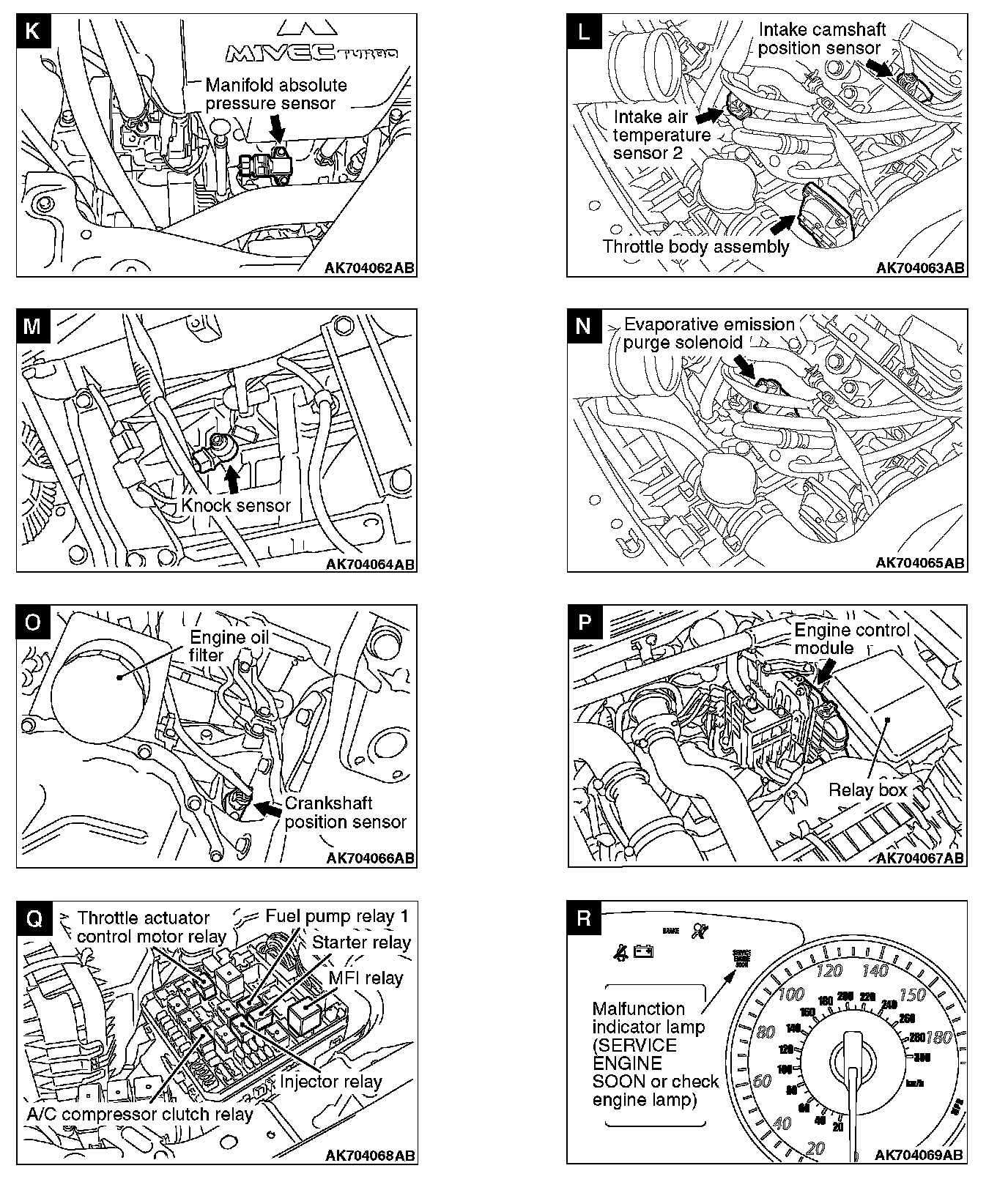

View K-R:

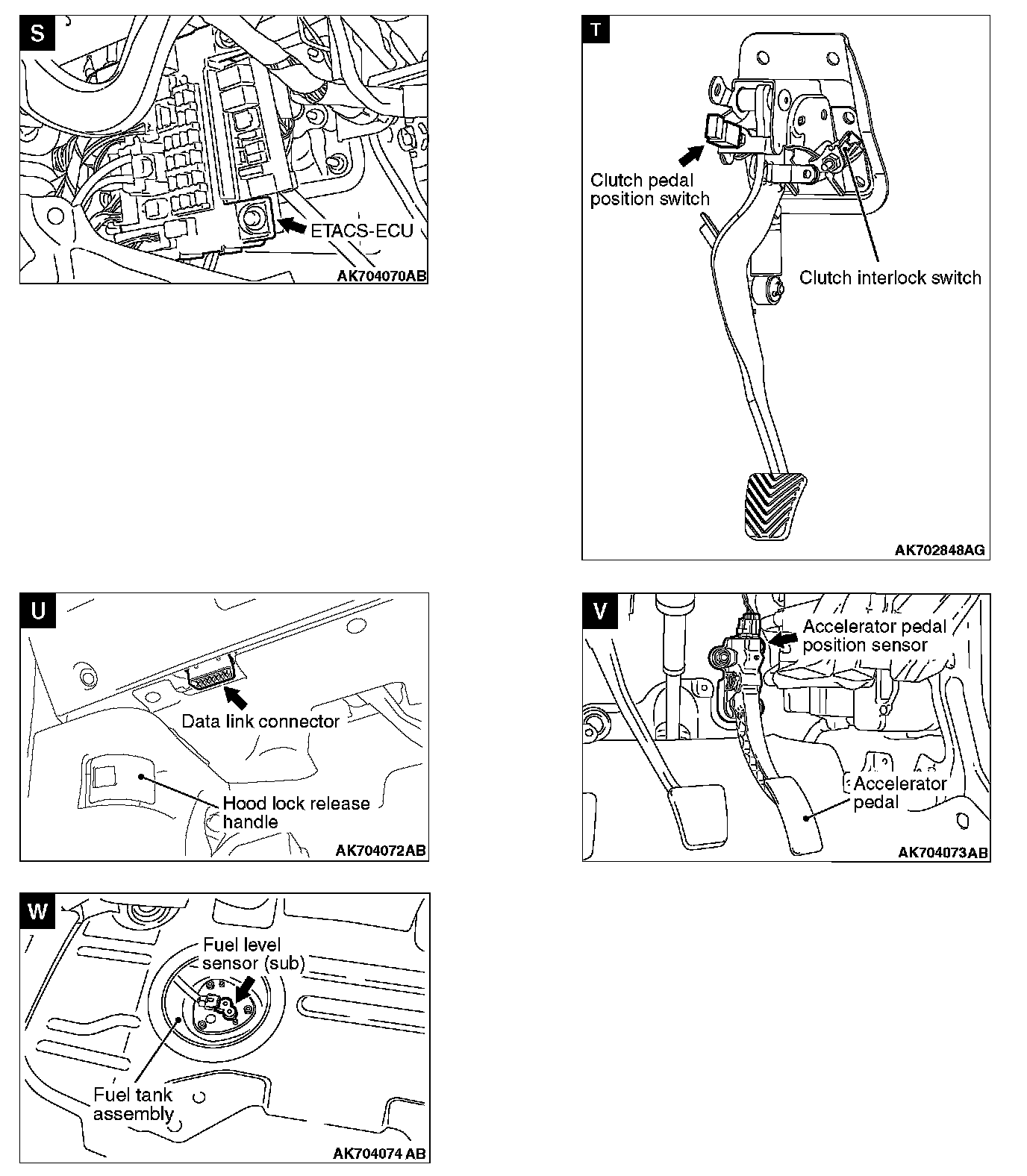

View S-W:

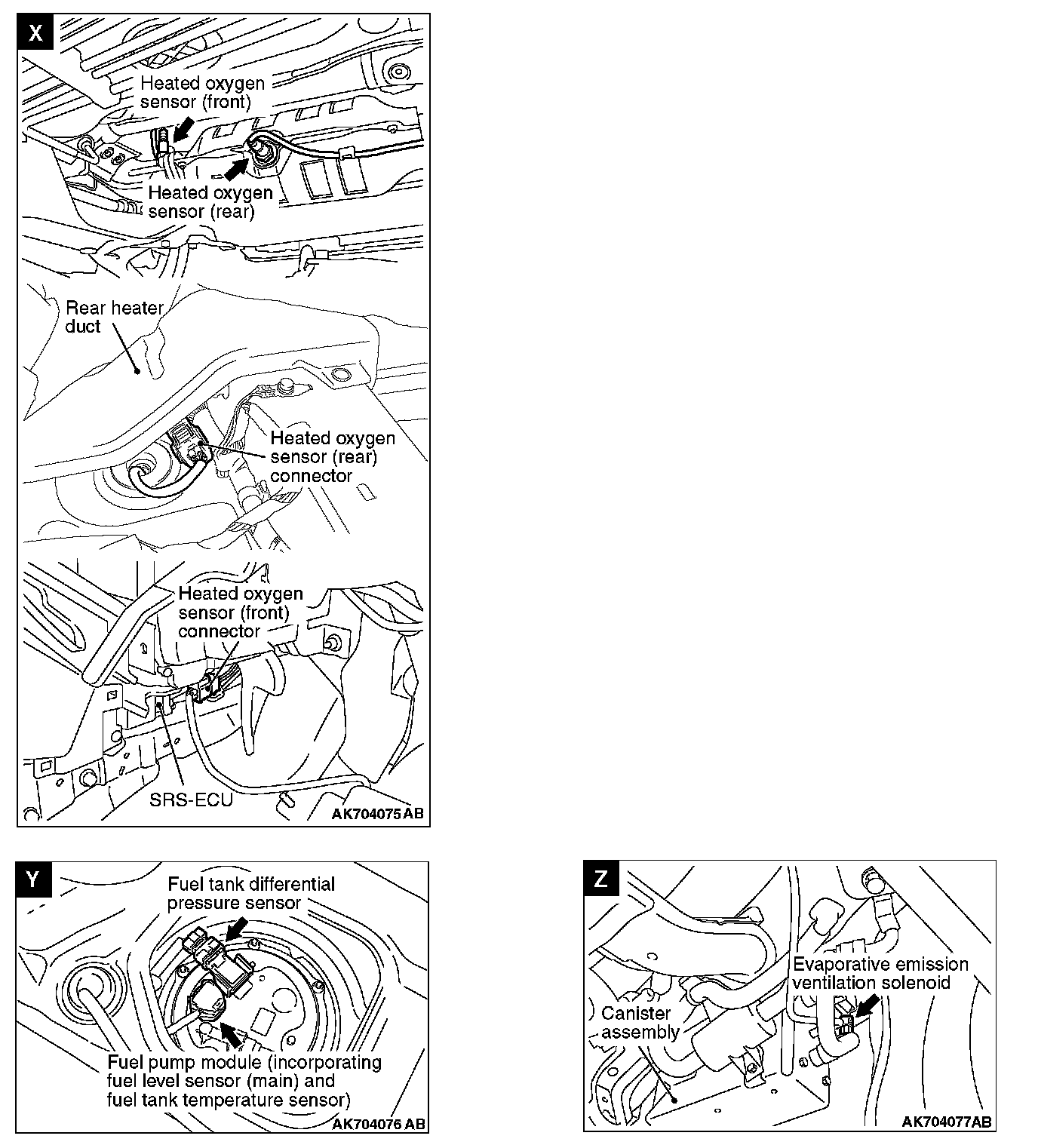

View X-Z:
