Accelerator Pedal Position Sensor: Service and Repair

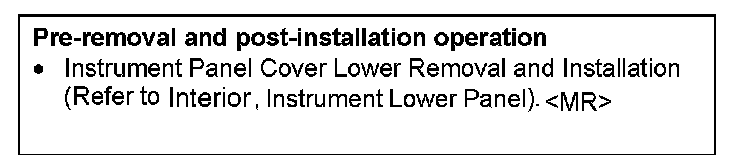

Pre-Removal And Post-Installation Operation:

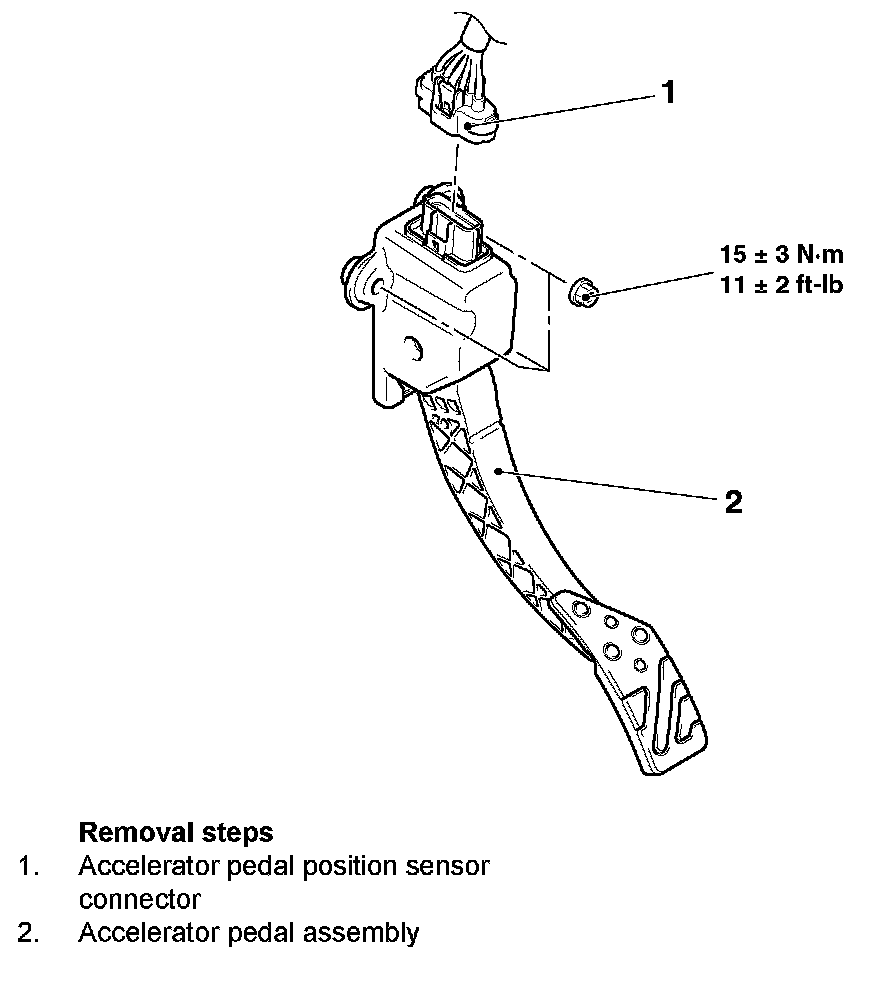

Removal Steps 1-2:
