Heater Control Unit
HEATER CONTROL UNIT
REMOVAL AND INSTALLATION

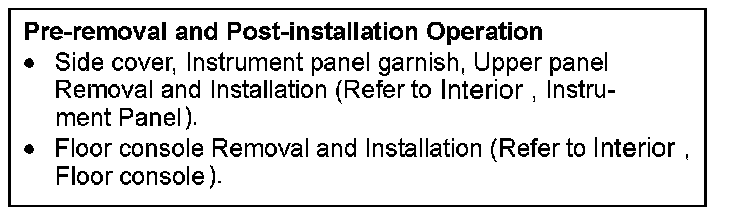

Pre-removal & Post-installation Operation:

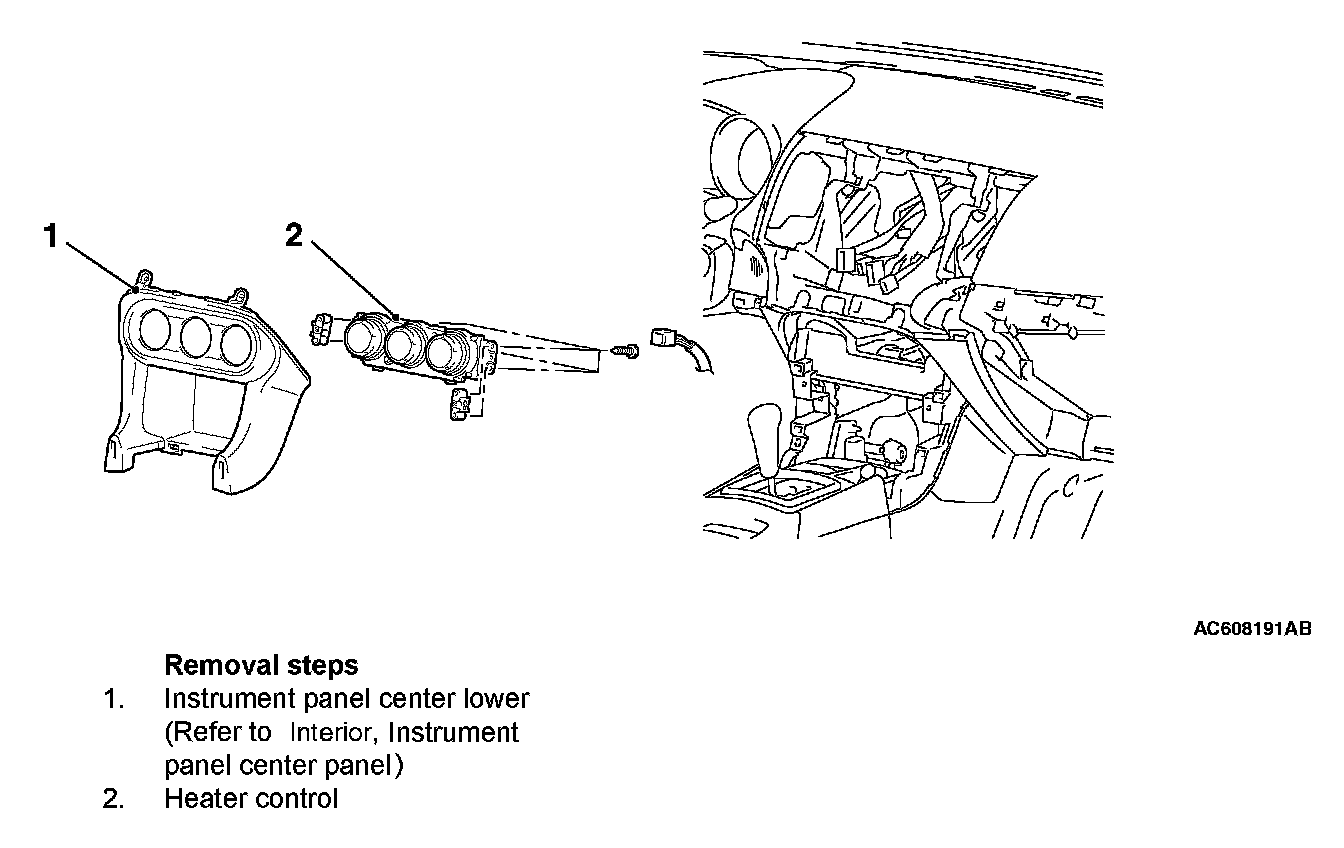

Removal Steps 1-2:
