Home >> Mitsubishi >> 2008 >> Galant ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Instrument Panel Assembly >> Disassembly And Assembly

Disassembly And Assembly

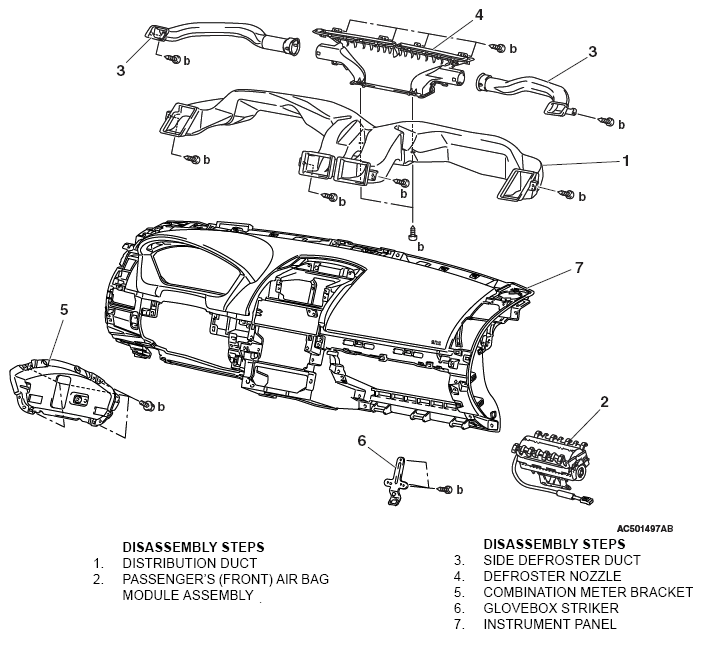

Fig 1: Disassembling And Assembling Instrument Panel Assembly

G05102815

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
