A/T Control Component Layout
A/T Control Component Layout

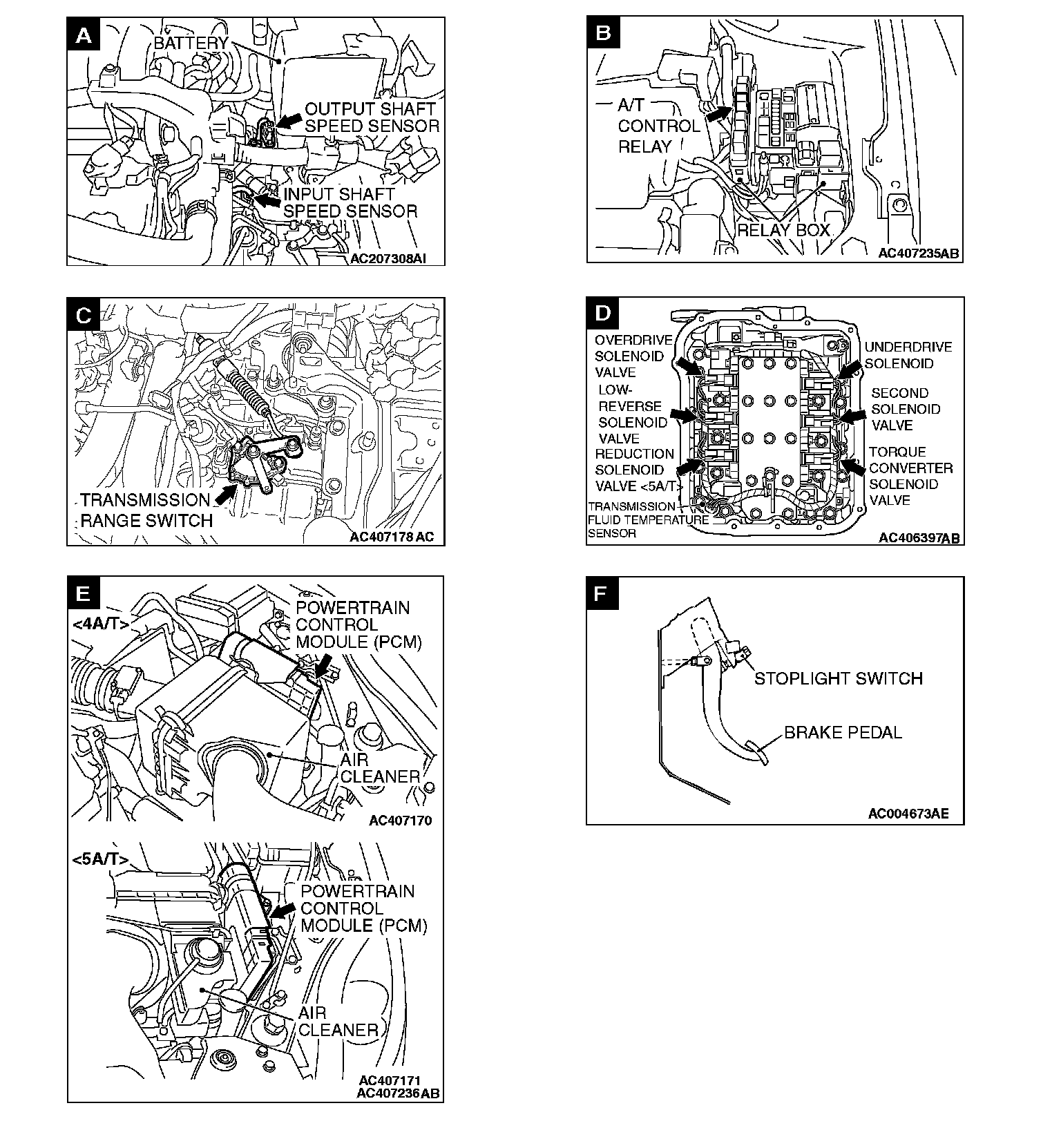

A/T Control Component Layout (Part 1):

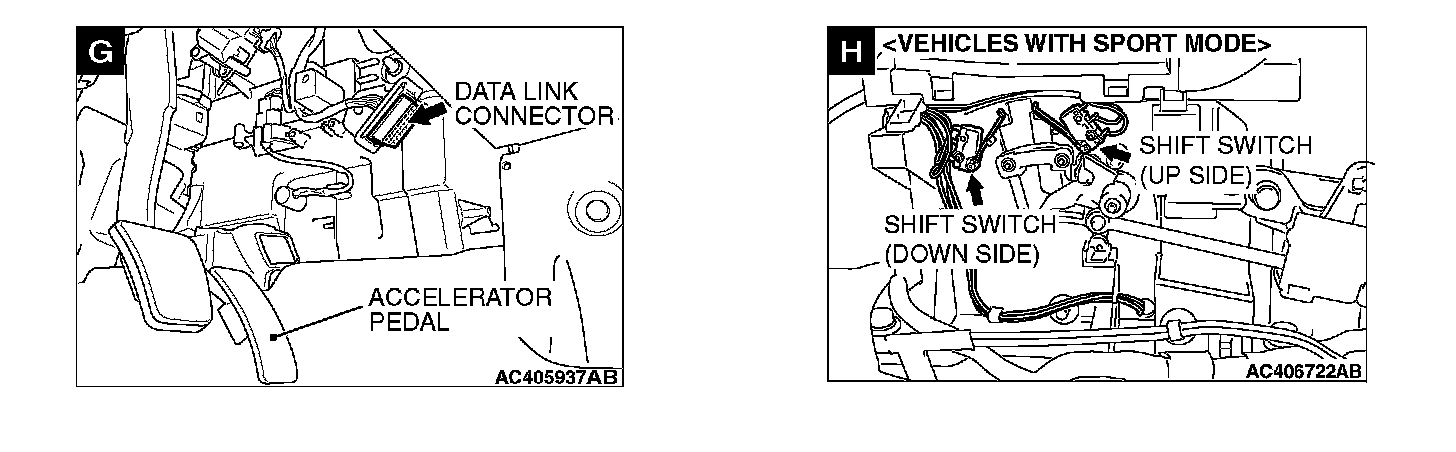

A/T Control Component Layout (Part 2):

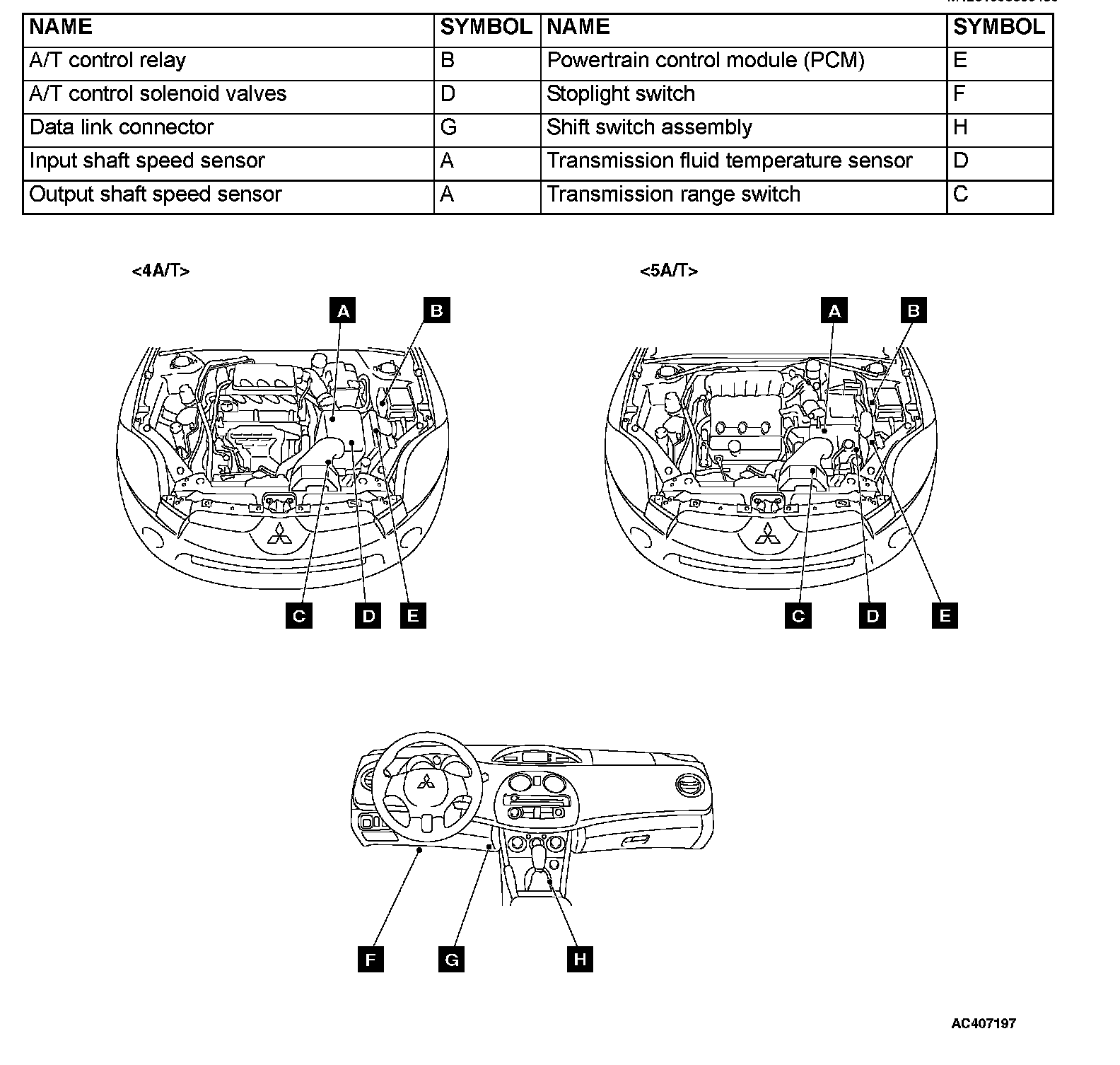

A/T Control Component Layout (Part 3):
