Home >> Mitsubishi >> 2007 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Service and Repair

Transmission Position Sensor/Switch: Service and Repair

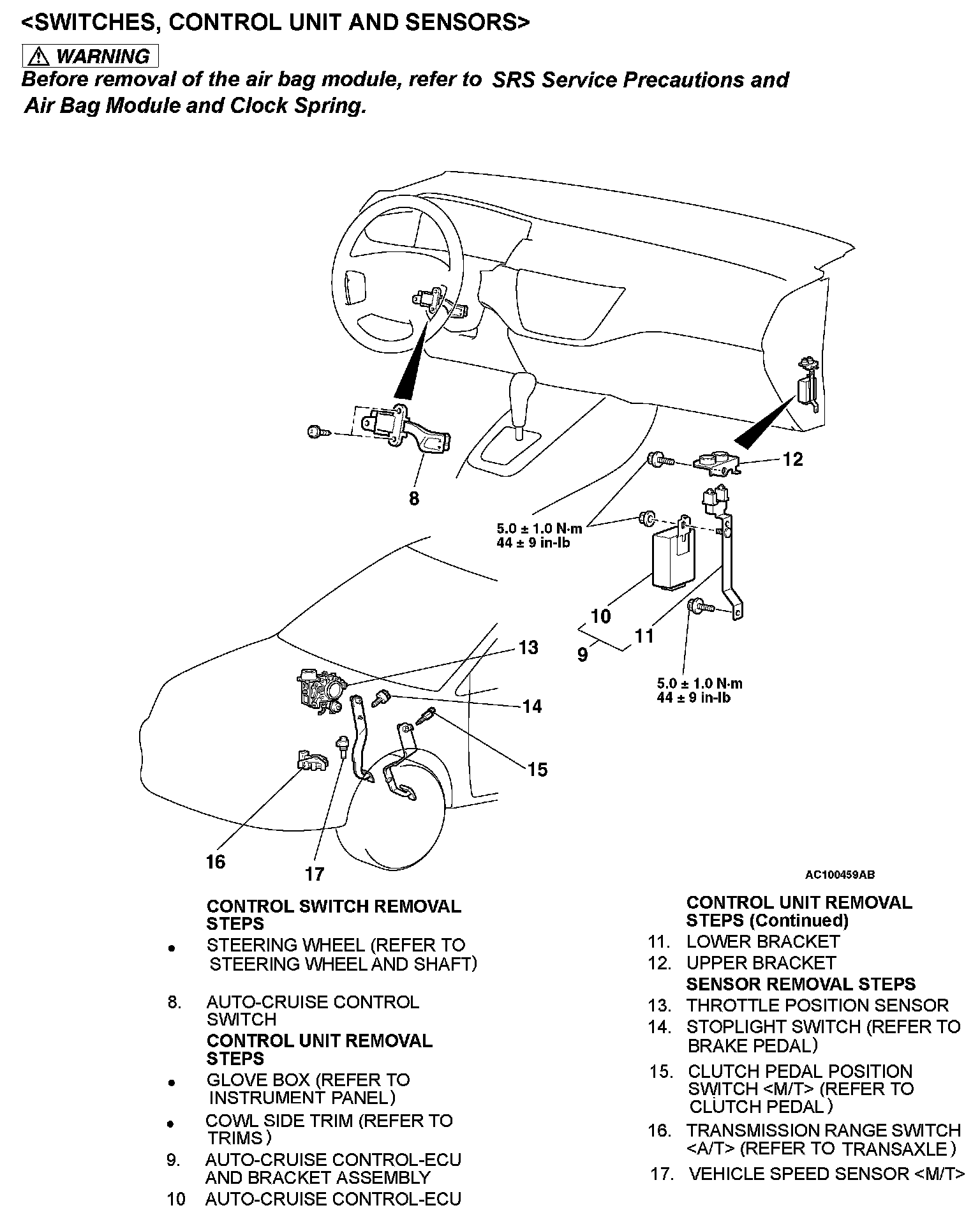

Removal Steps 7 (Continued) To 12:



Removal Steps 13 To 17:
