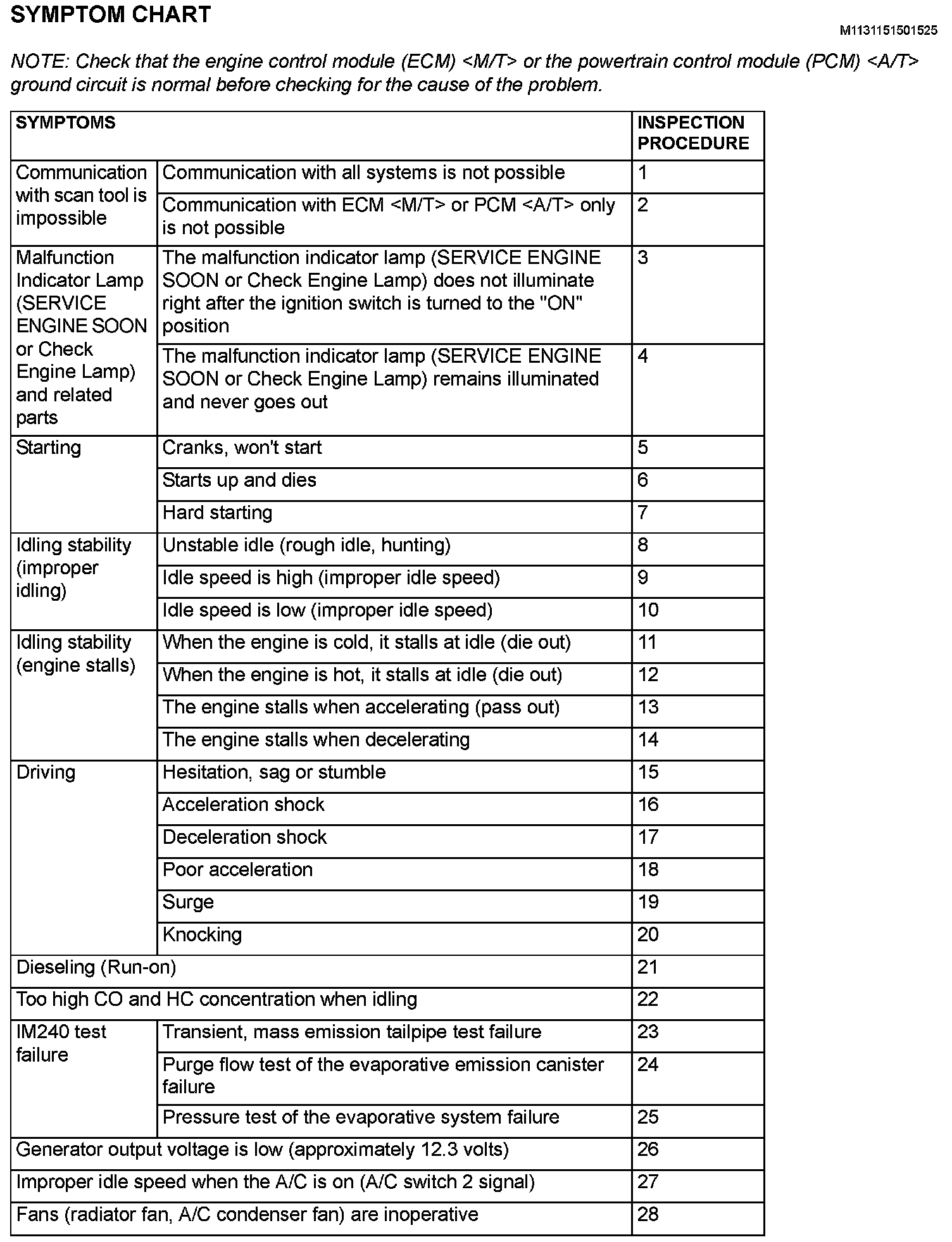

Symptom Chart

Inspection Chart For Trouble Symptoms Part 1:

Inspection Chart For Trouble Symptoms Part 2:
