Accelerator Pedal Position Sensor: Service and Repair

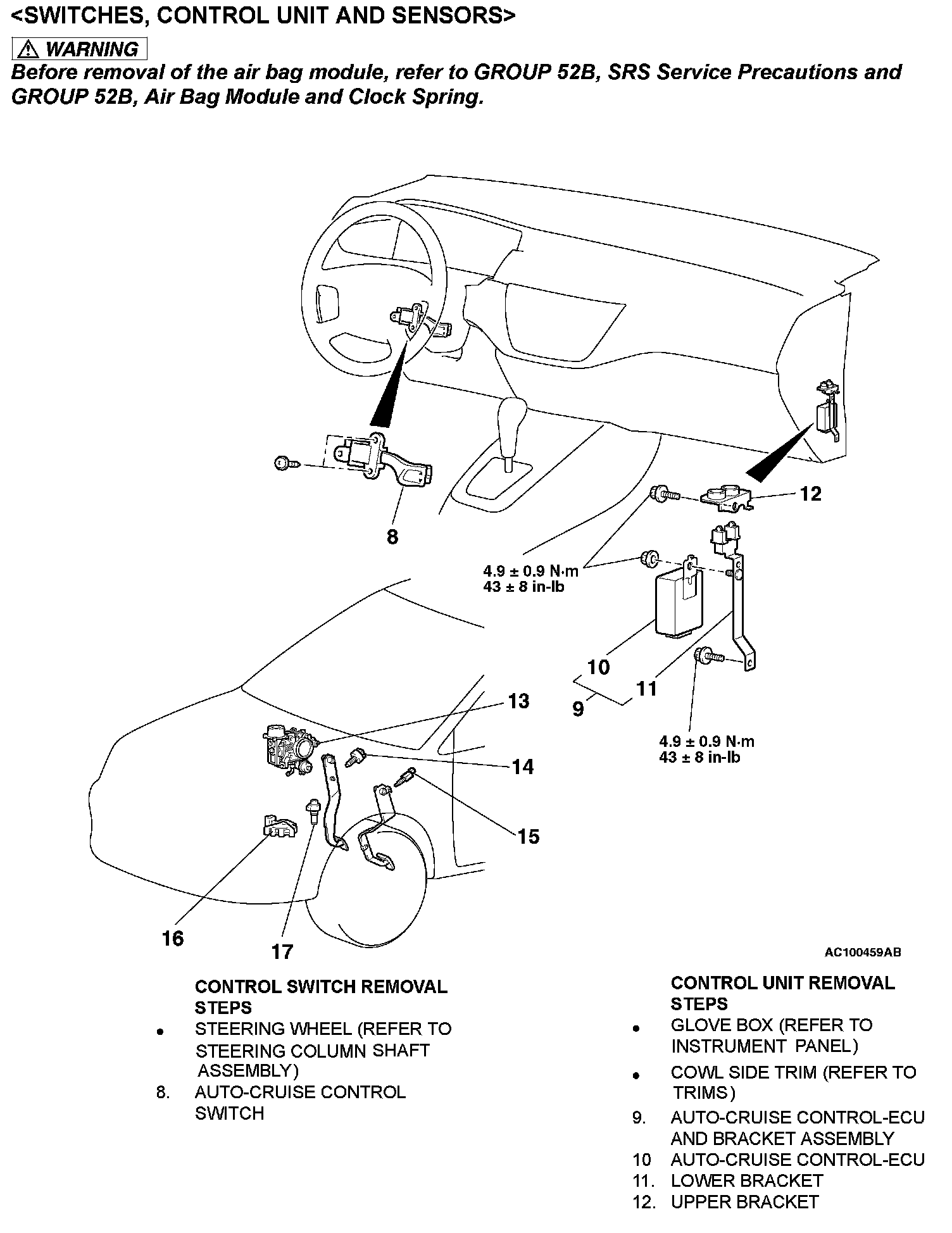

Removal Steps 1 To 7:

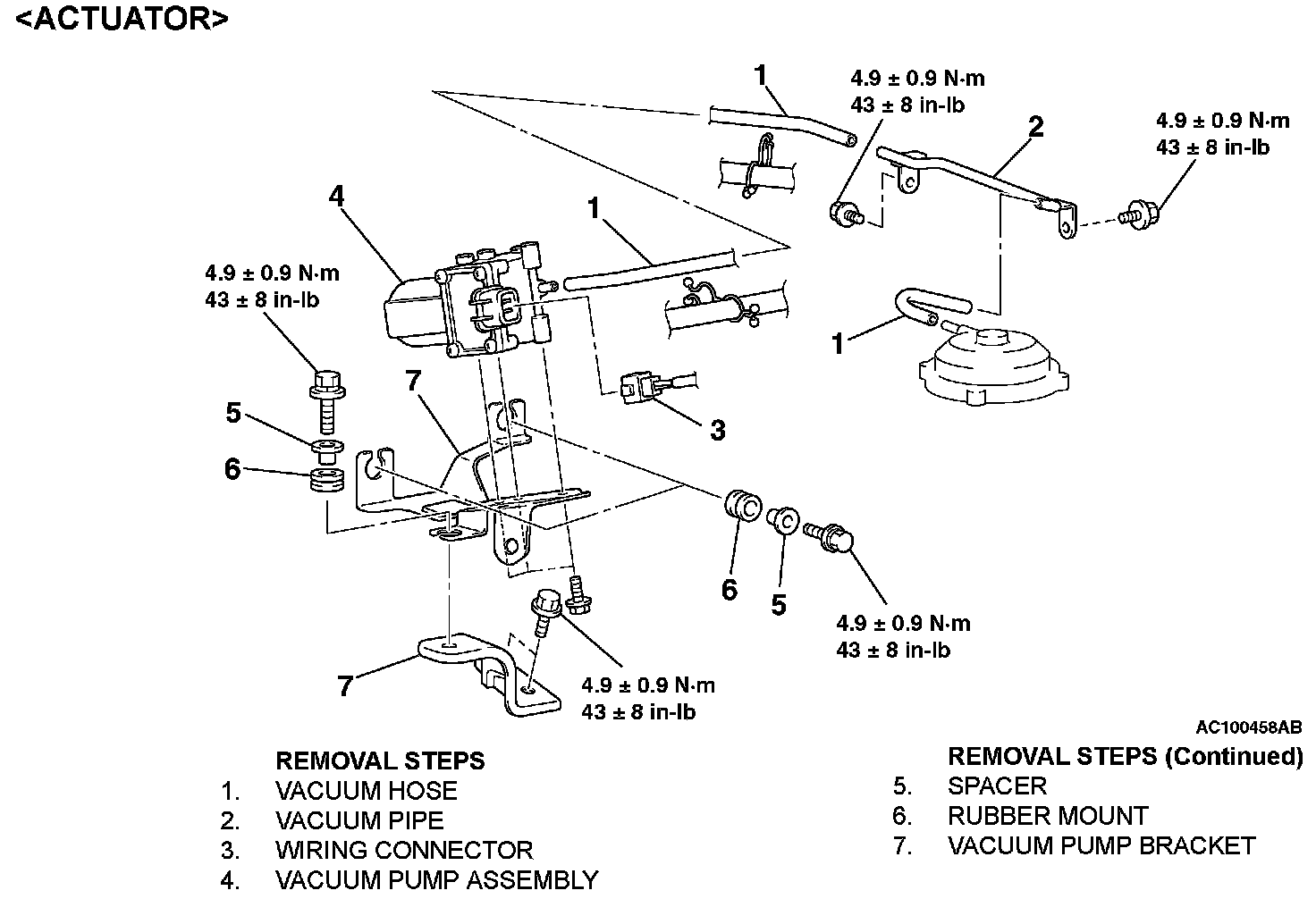

Removal Steps 7 (Continued) To 12:



Removal Steps 13 To 17:
