How to Use SWS Monitor

HOW TO USE SWS MONITOR

WHEN SCAN TOOL MB991958 IS USED

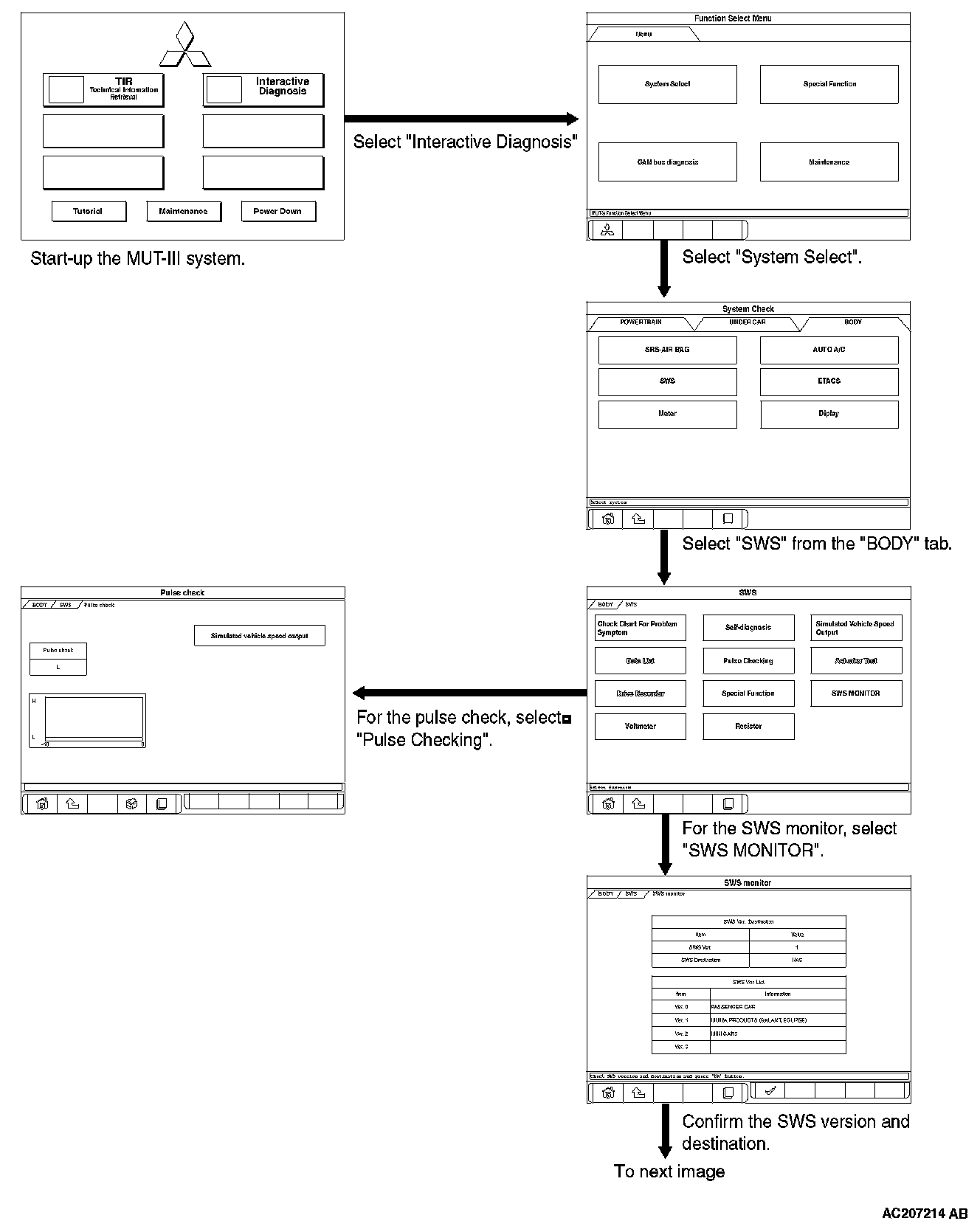

Part 1:

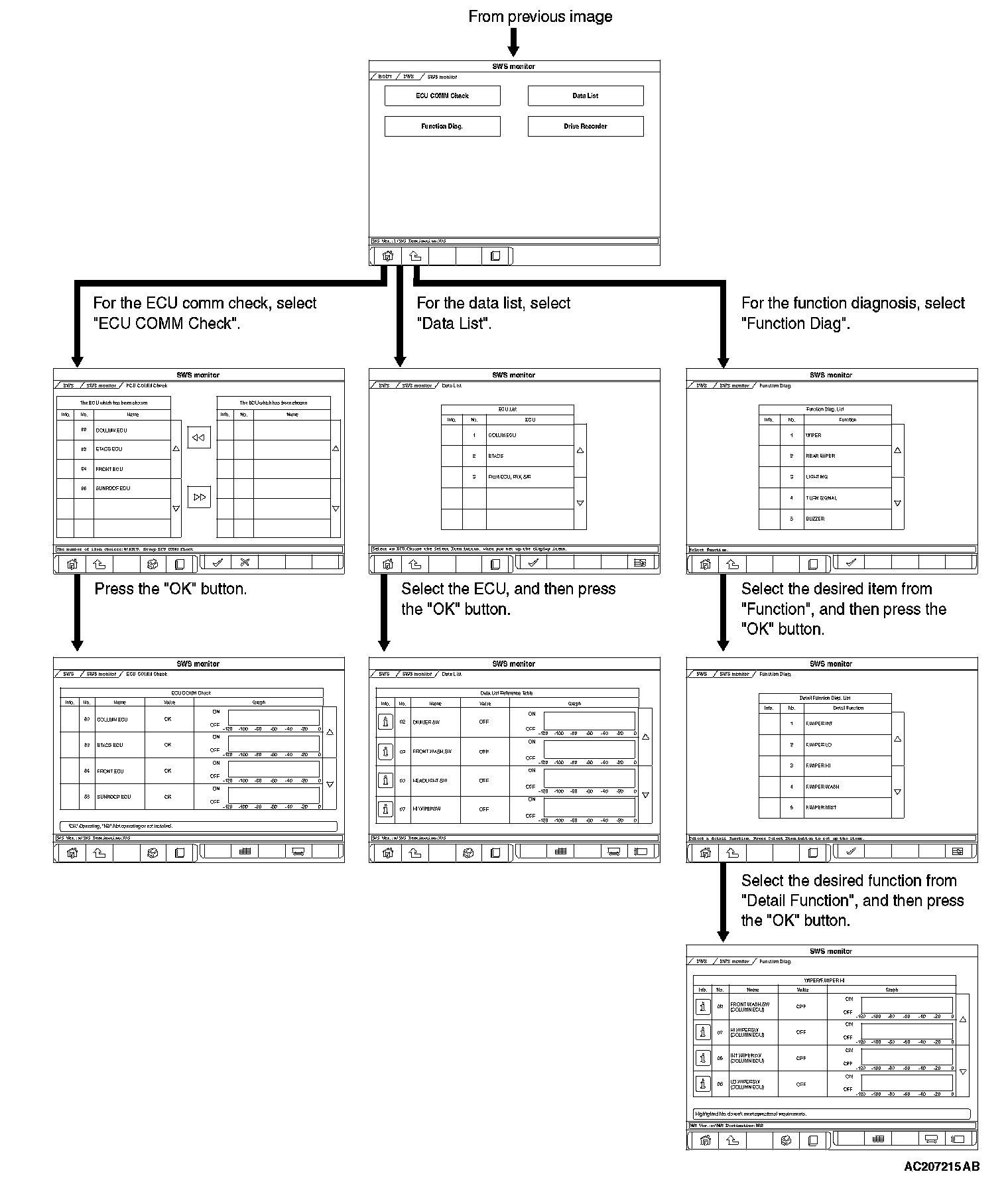

Part 2:




To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as given.
