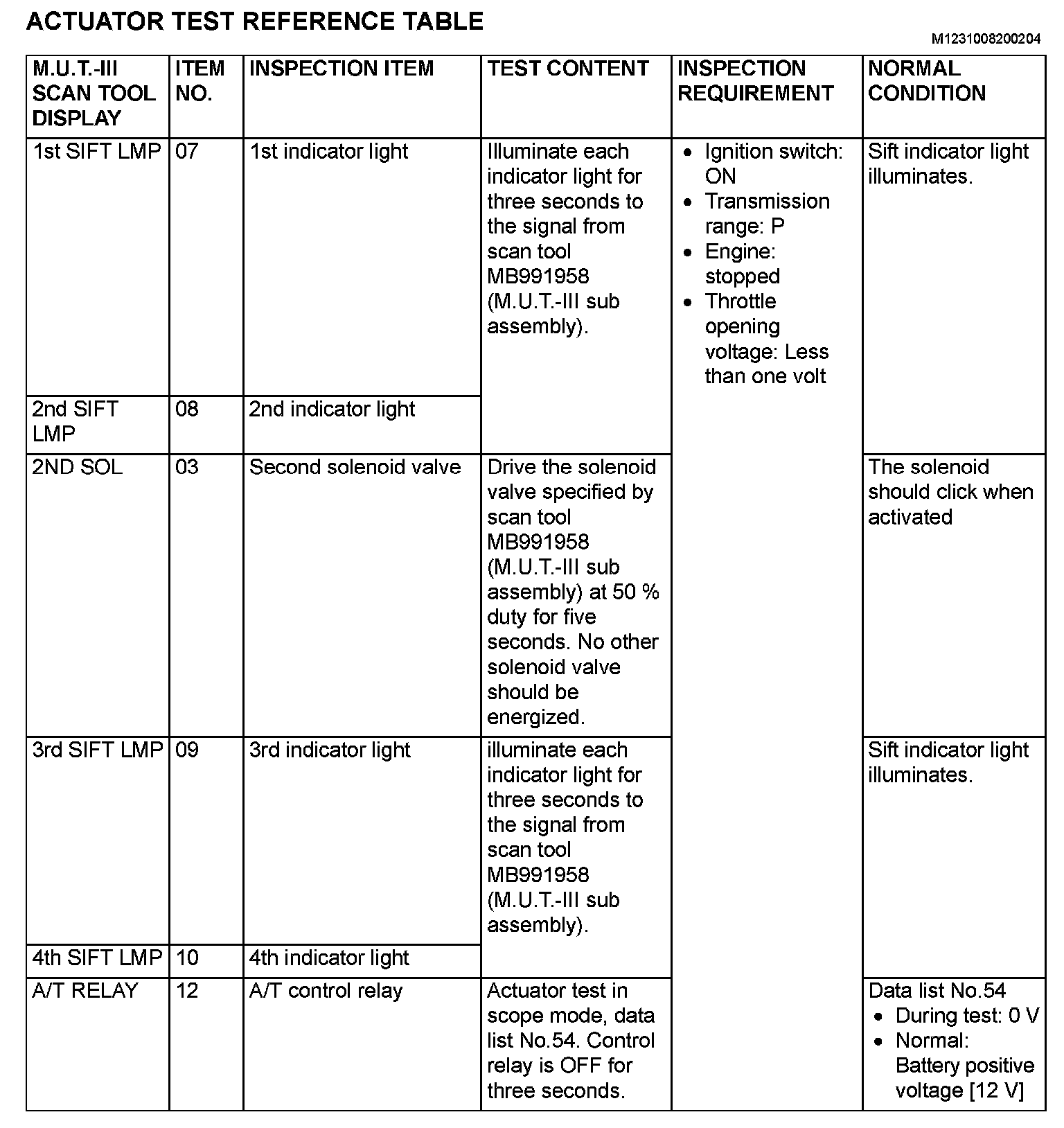

Actuator Test Reference Table

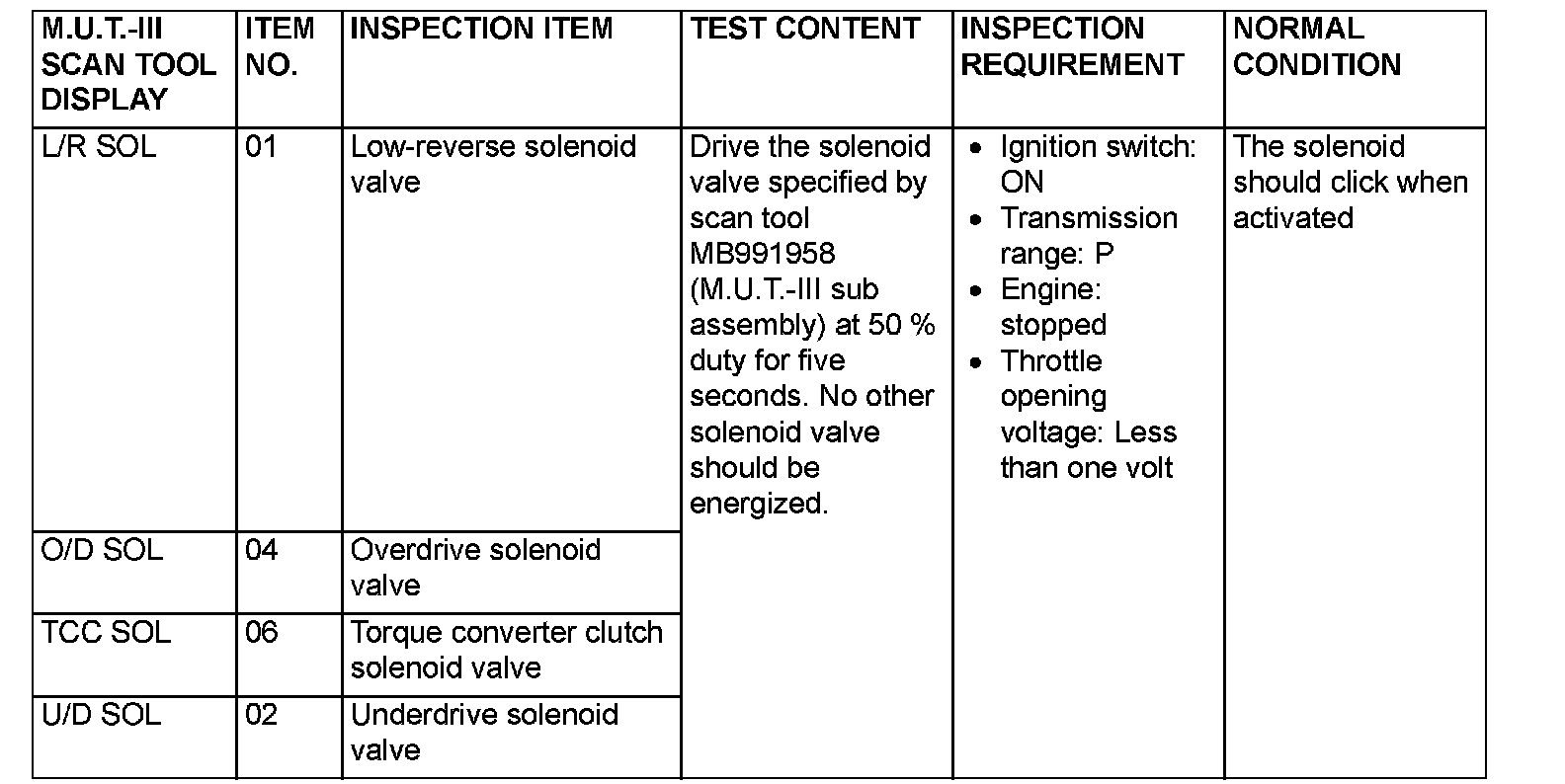

Actuator Test Reference Table (Part 1):



Data List Reference Table (Part 2):
