How to Use SWS Monitor

HOW TO USE SWS MONITOR

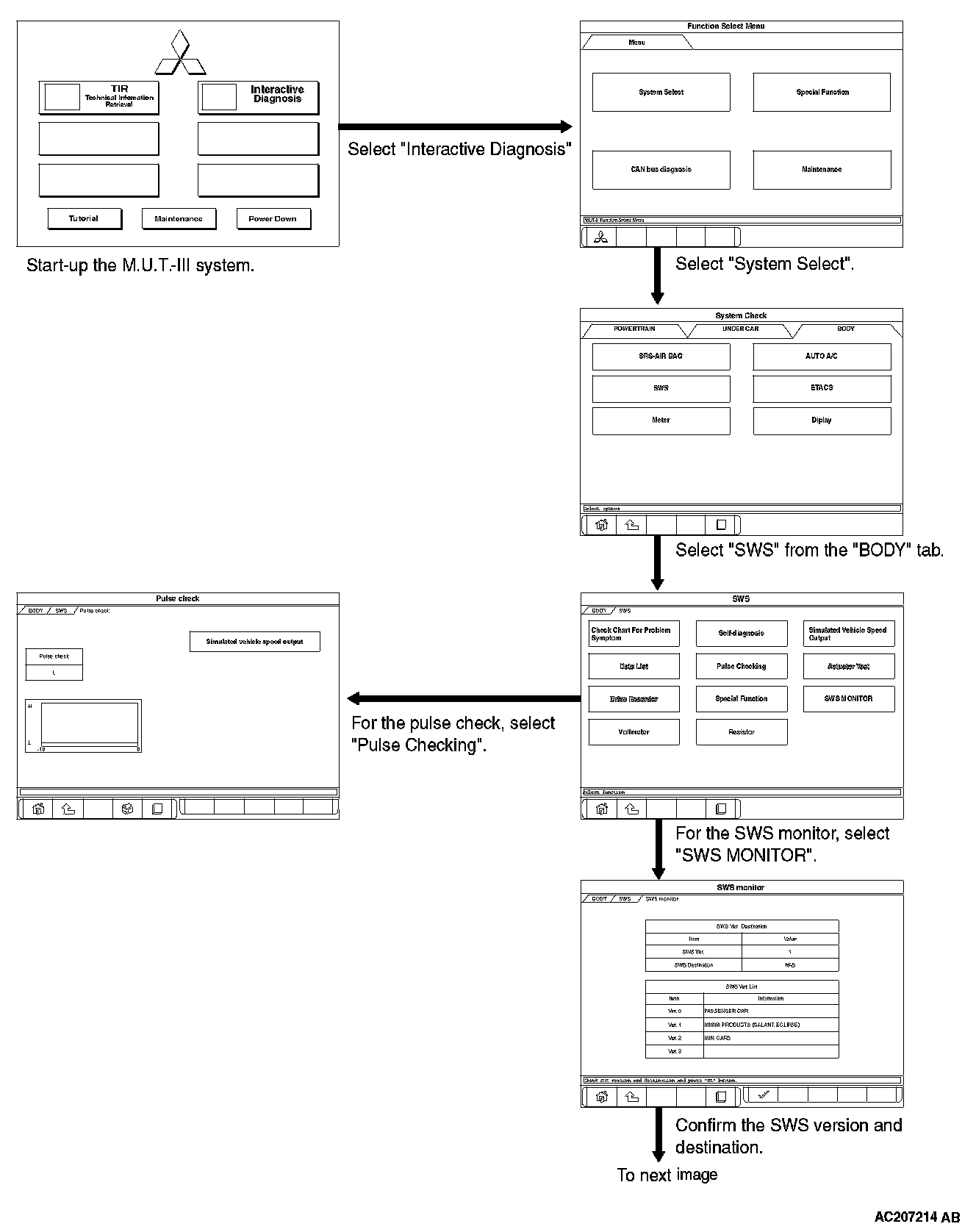

Part 1:

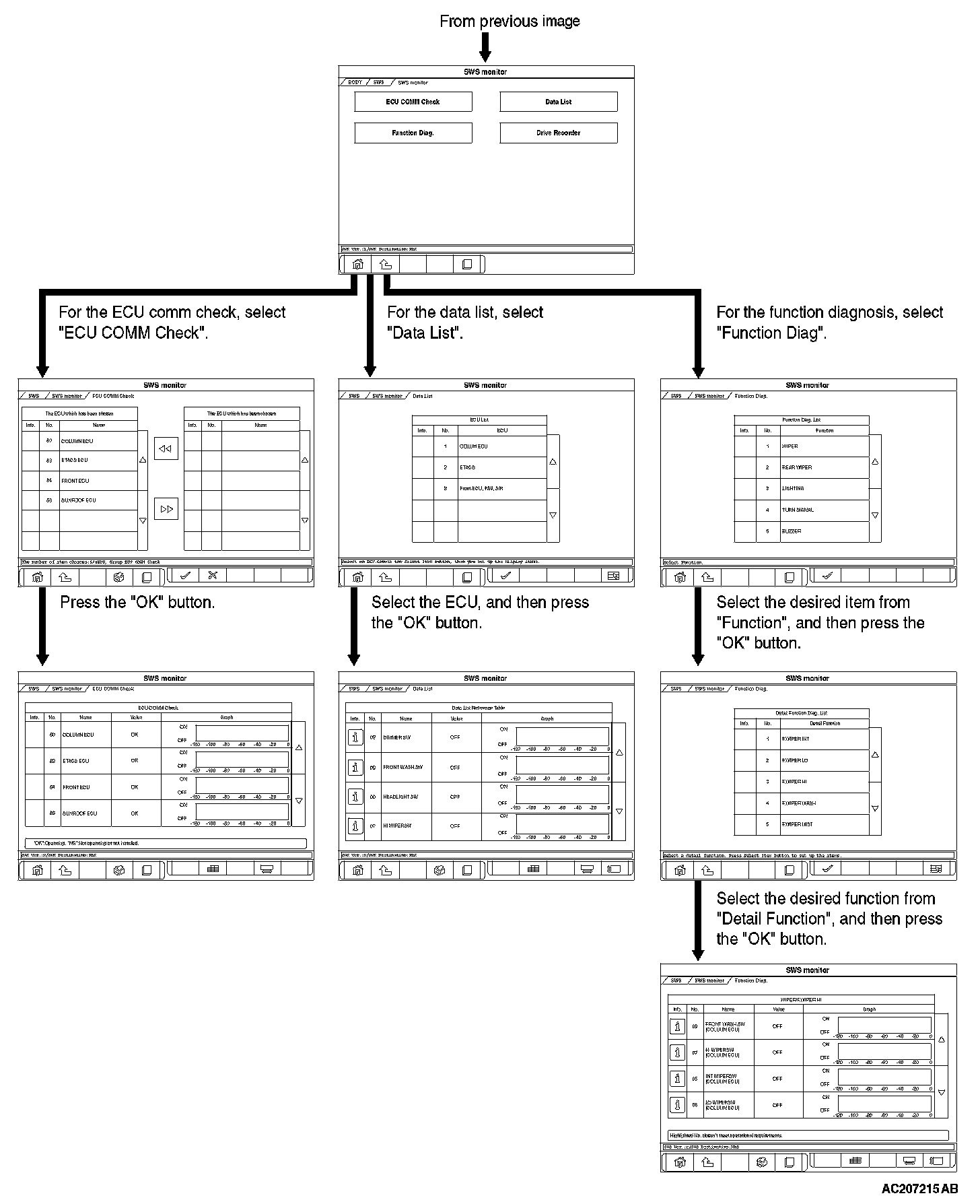

Part 2:




To carry out troubleshooting, operate scan tool MB991958 (M.U.T.-III Sub Assembly) as given.
