Home >> Mitsubishi >> 2007 >> Endeavor AWD V6-3.8L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Service and Repair

Navigation Module: Service and Repair

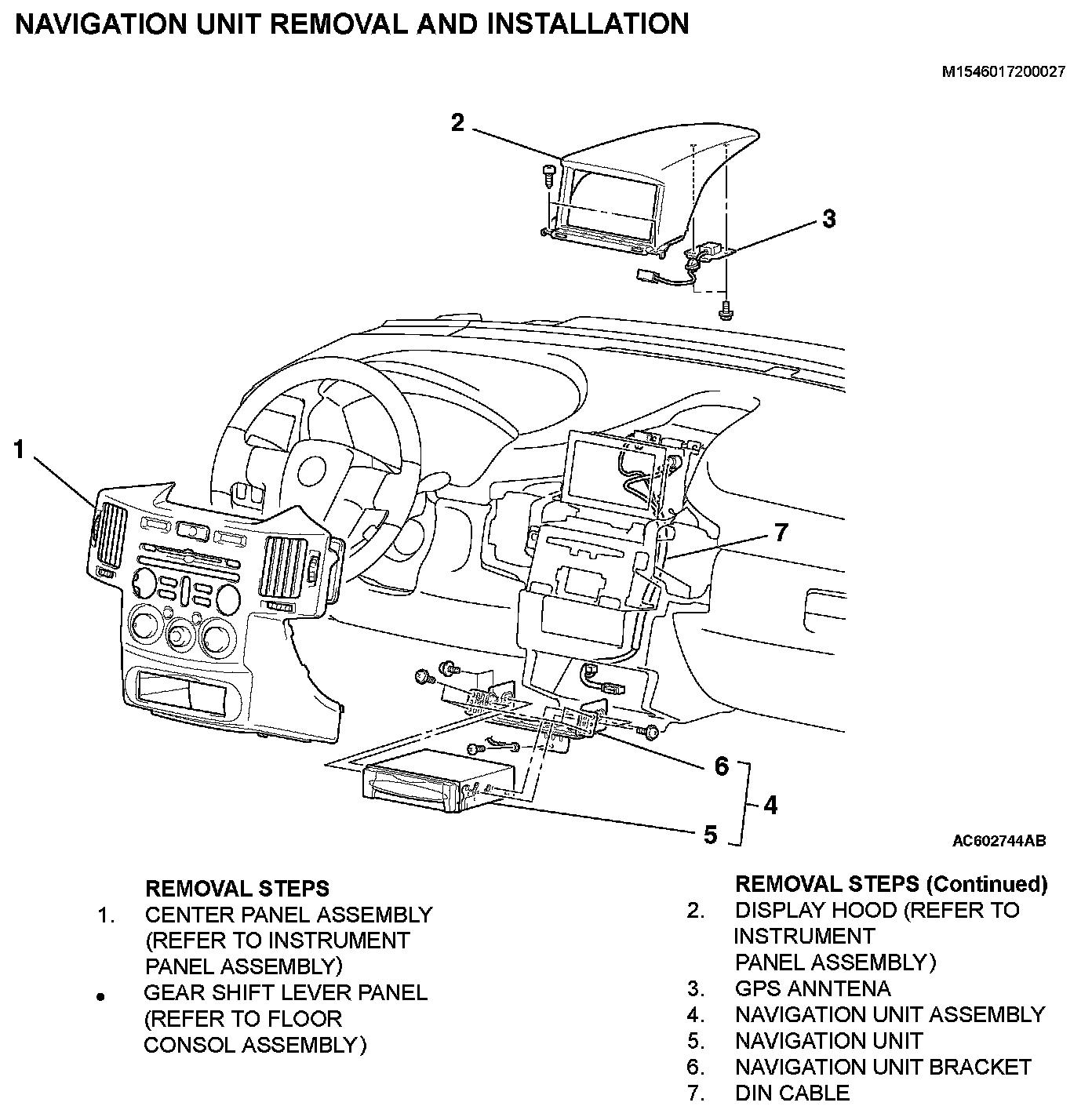

Removal Steps 1-7:
