Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

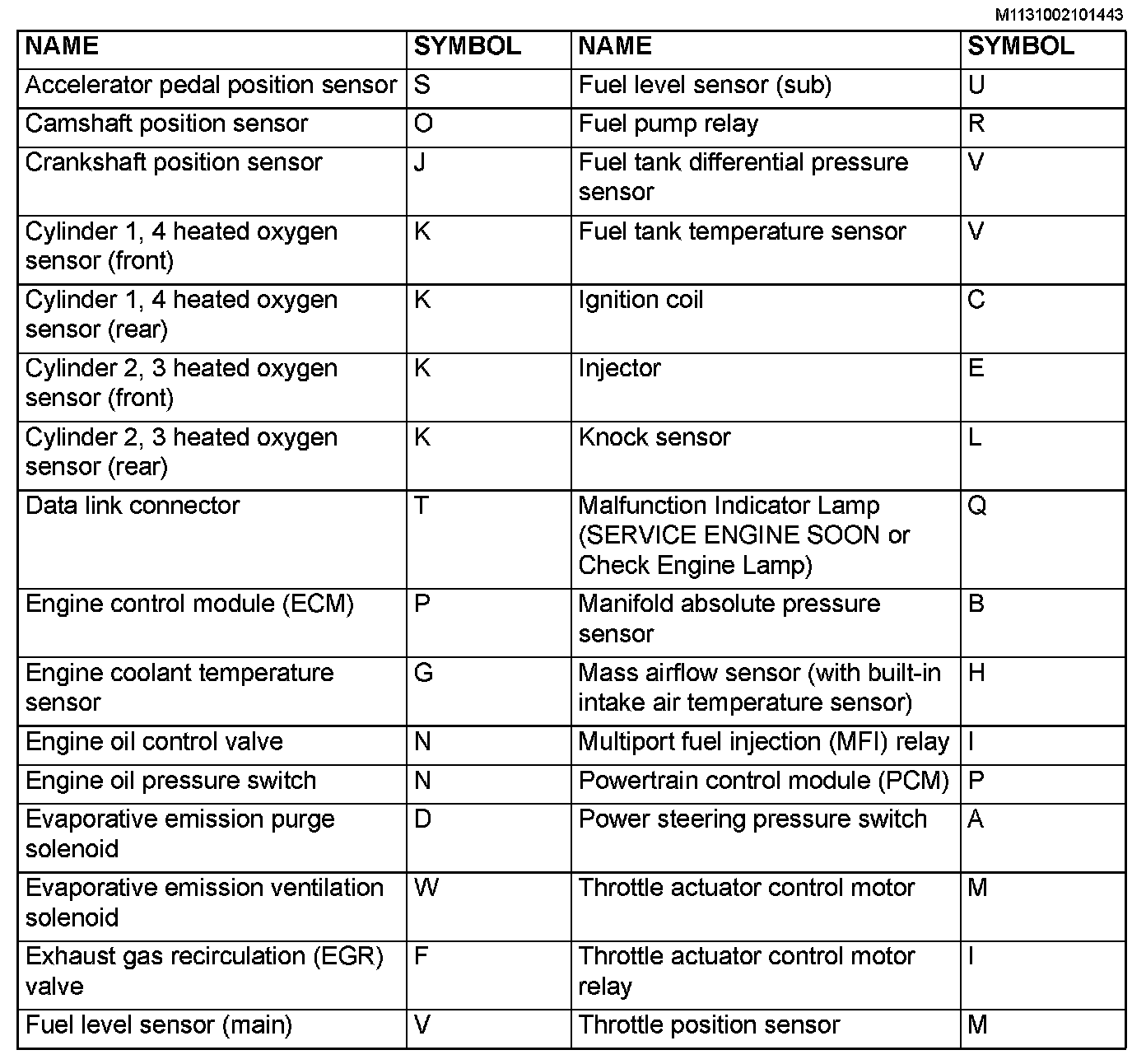

Component Location:

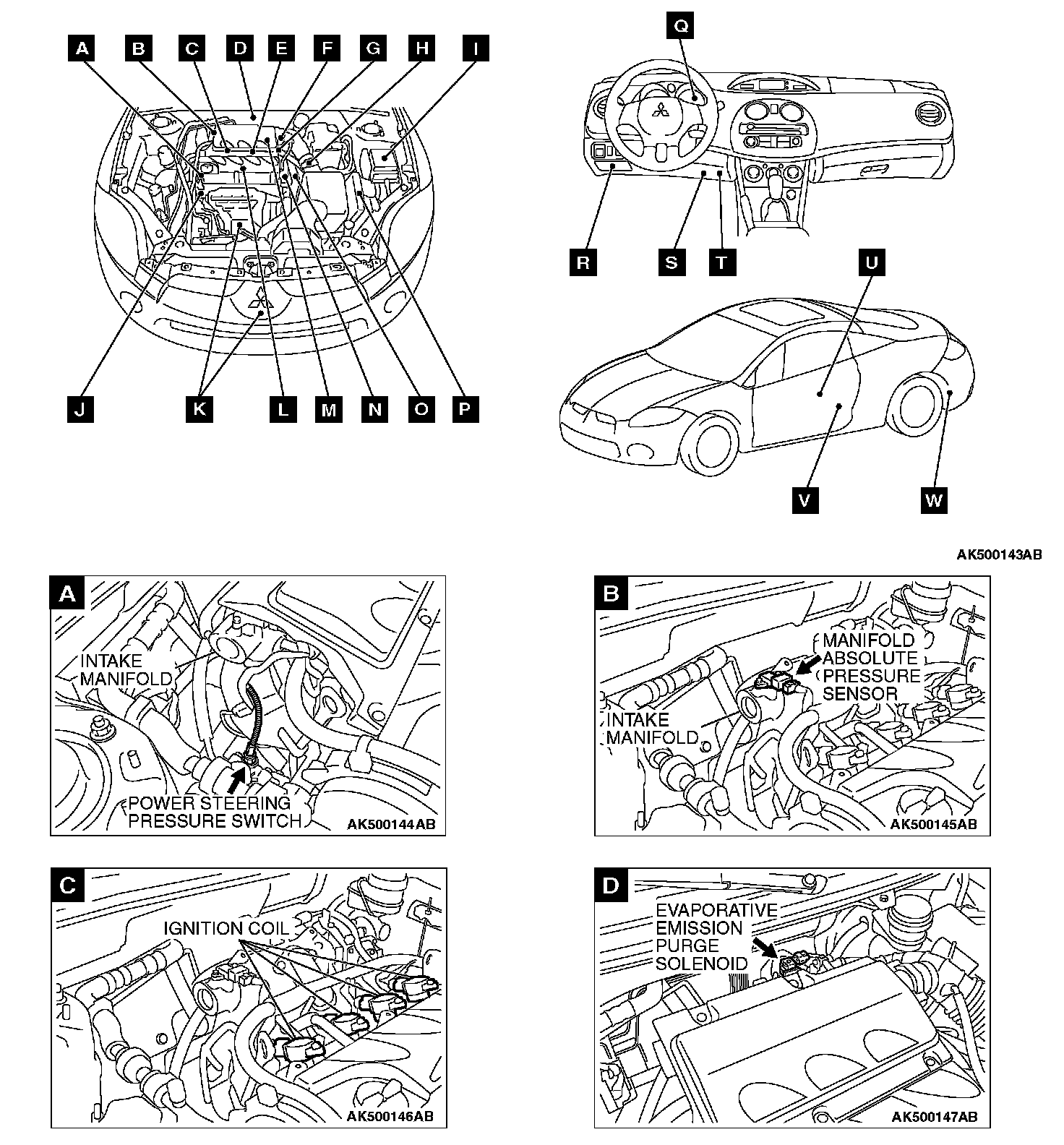

Overall View:

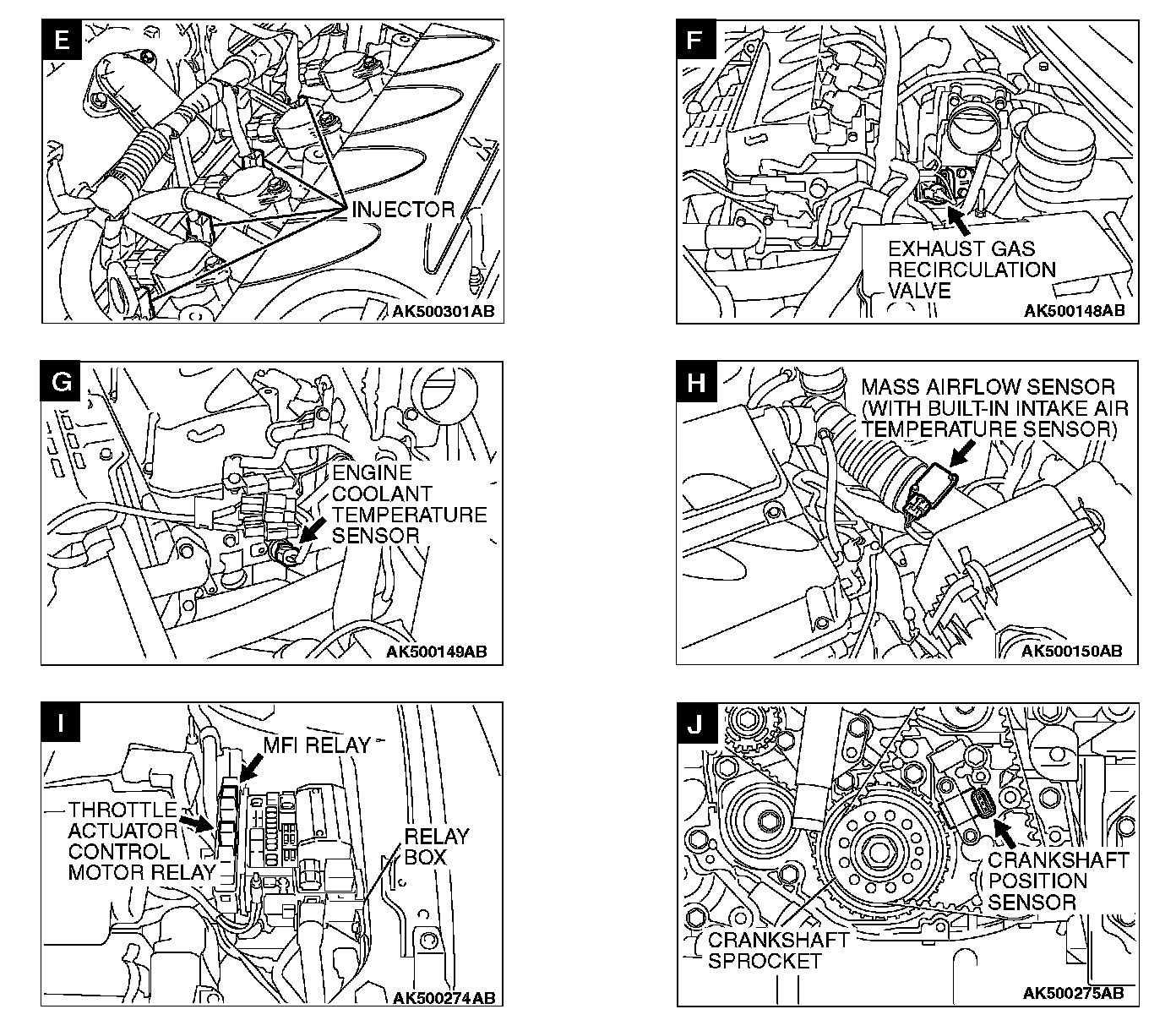

View E-J:

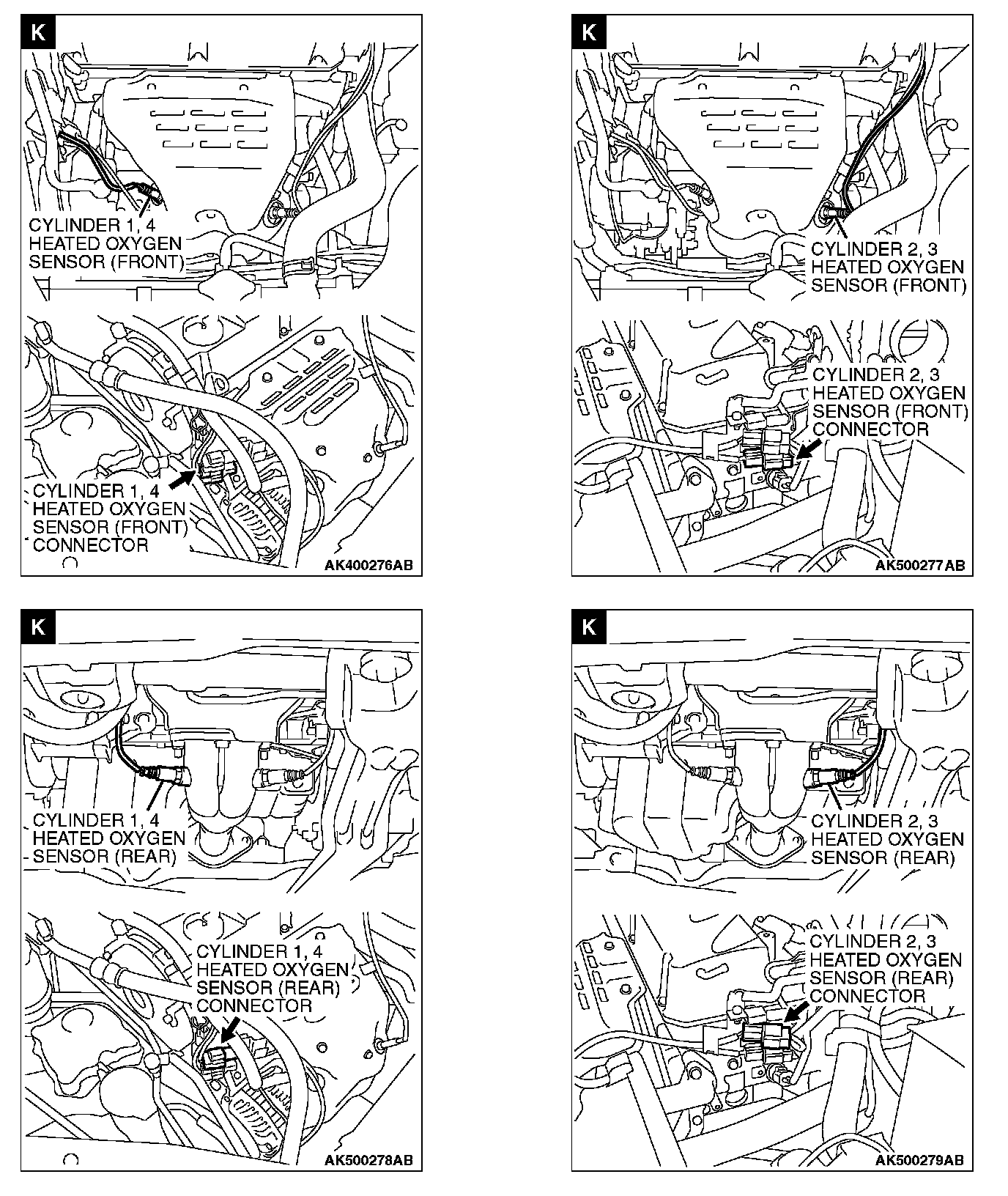

View K:

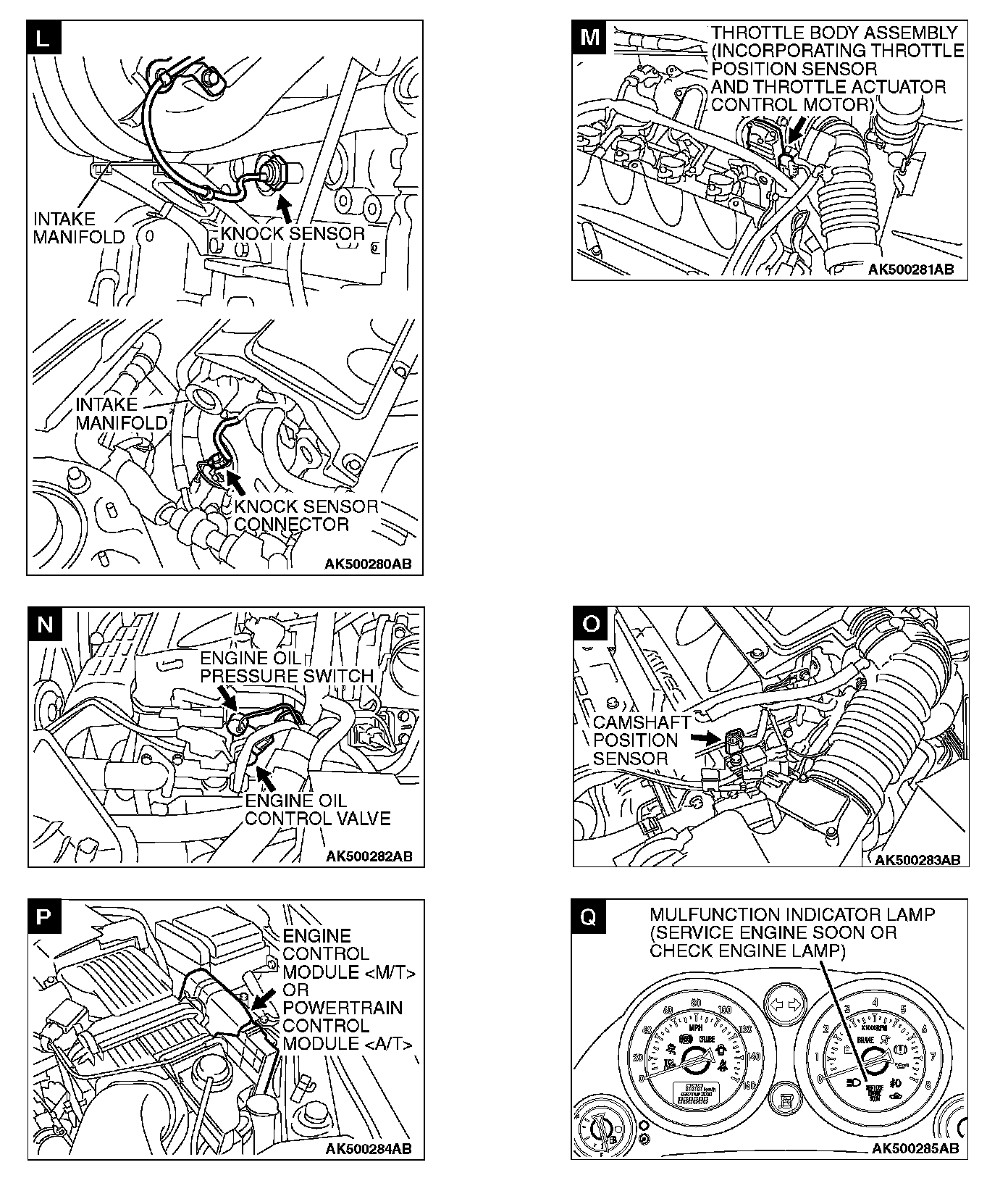

View L-Q:

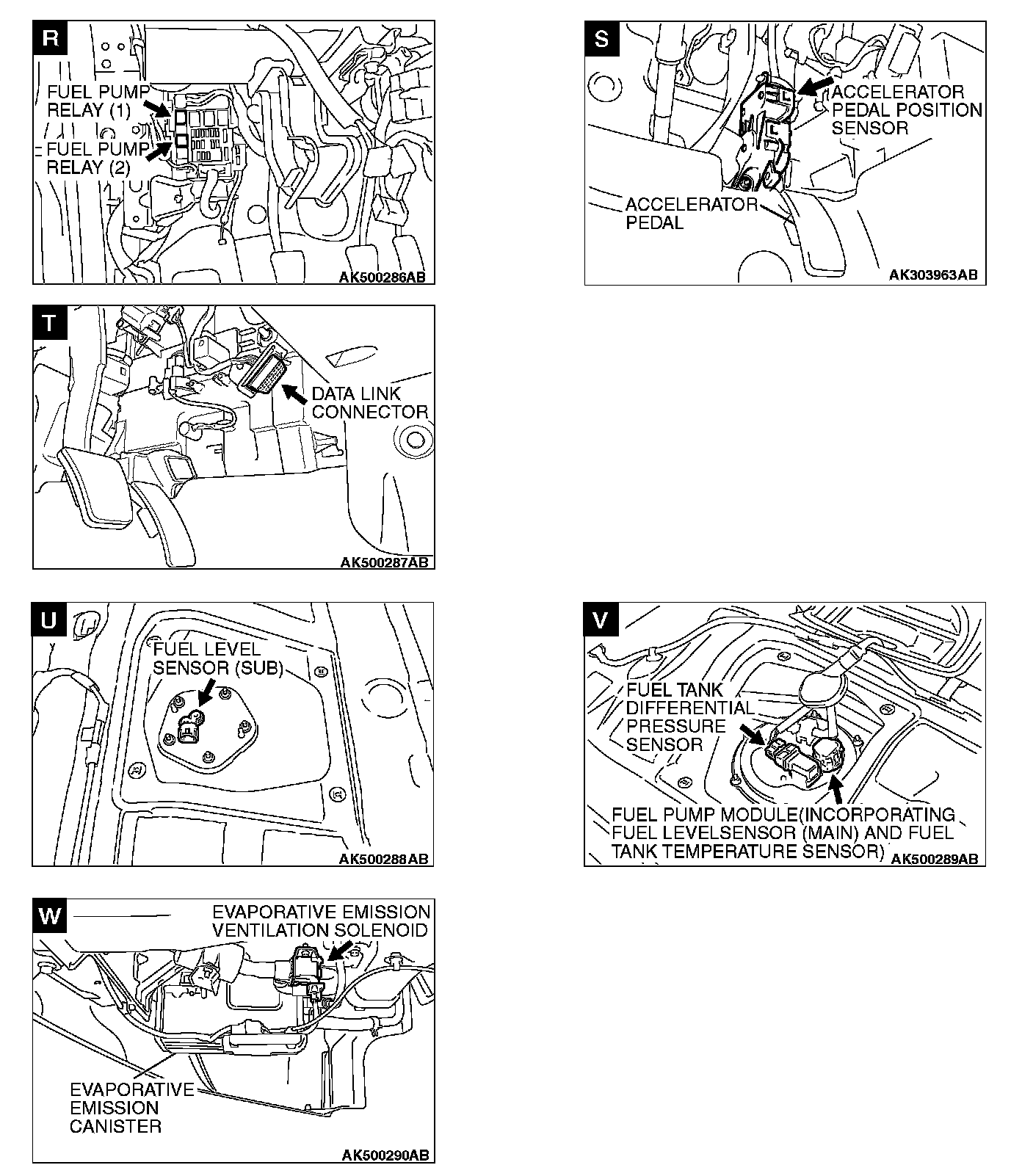

View R-V:
