Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

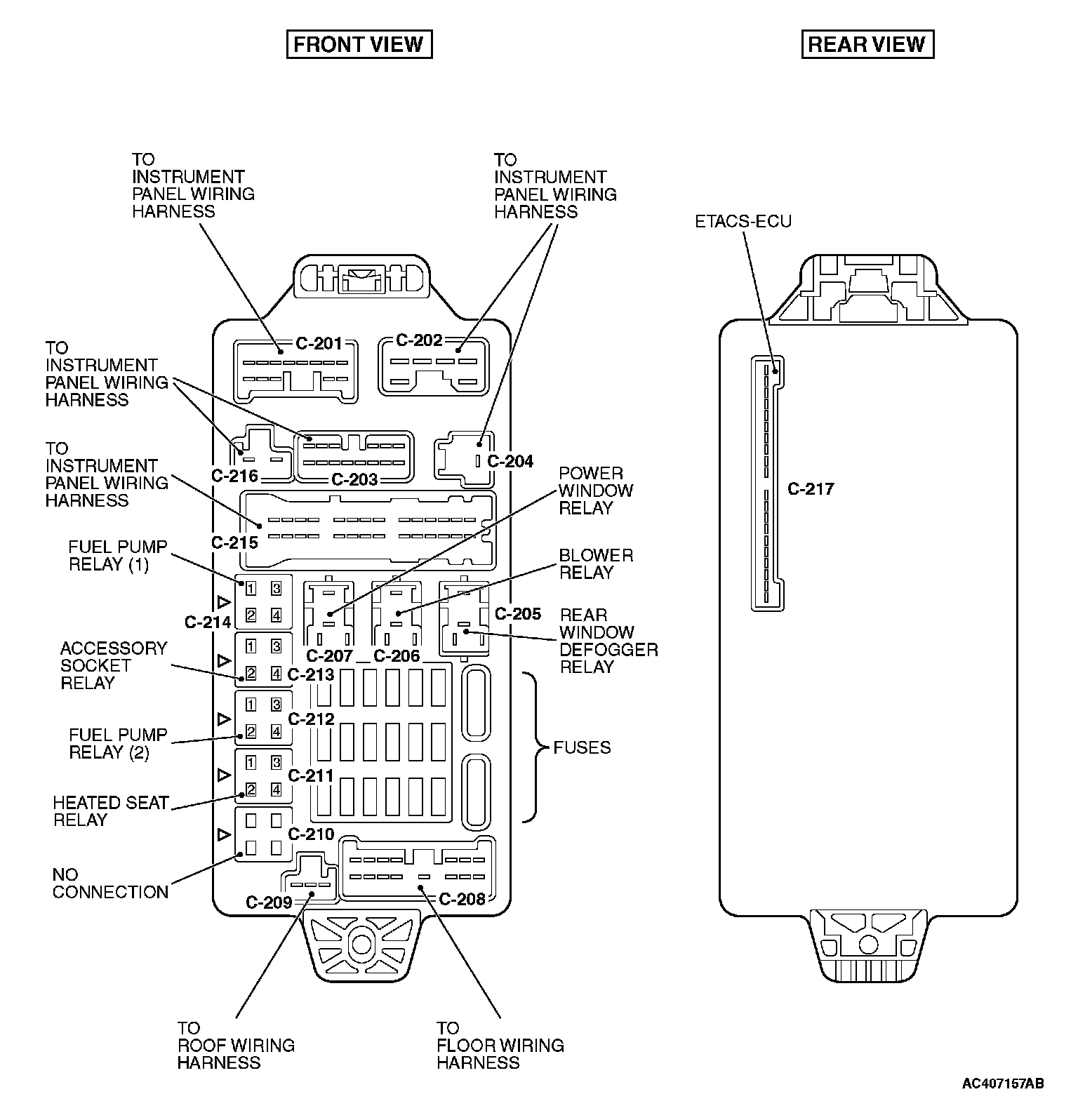

Fuse Block: Locations

Junction Block:
