Input Signal Chart

INPUT SIGNAL CHART

Input Signal Chart:

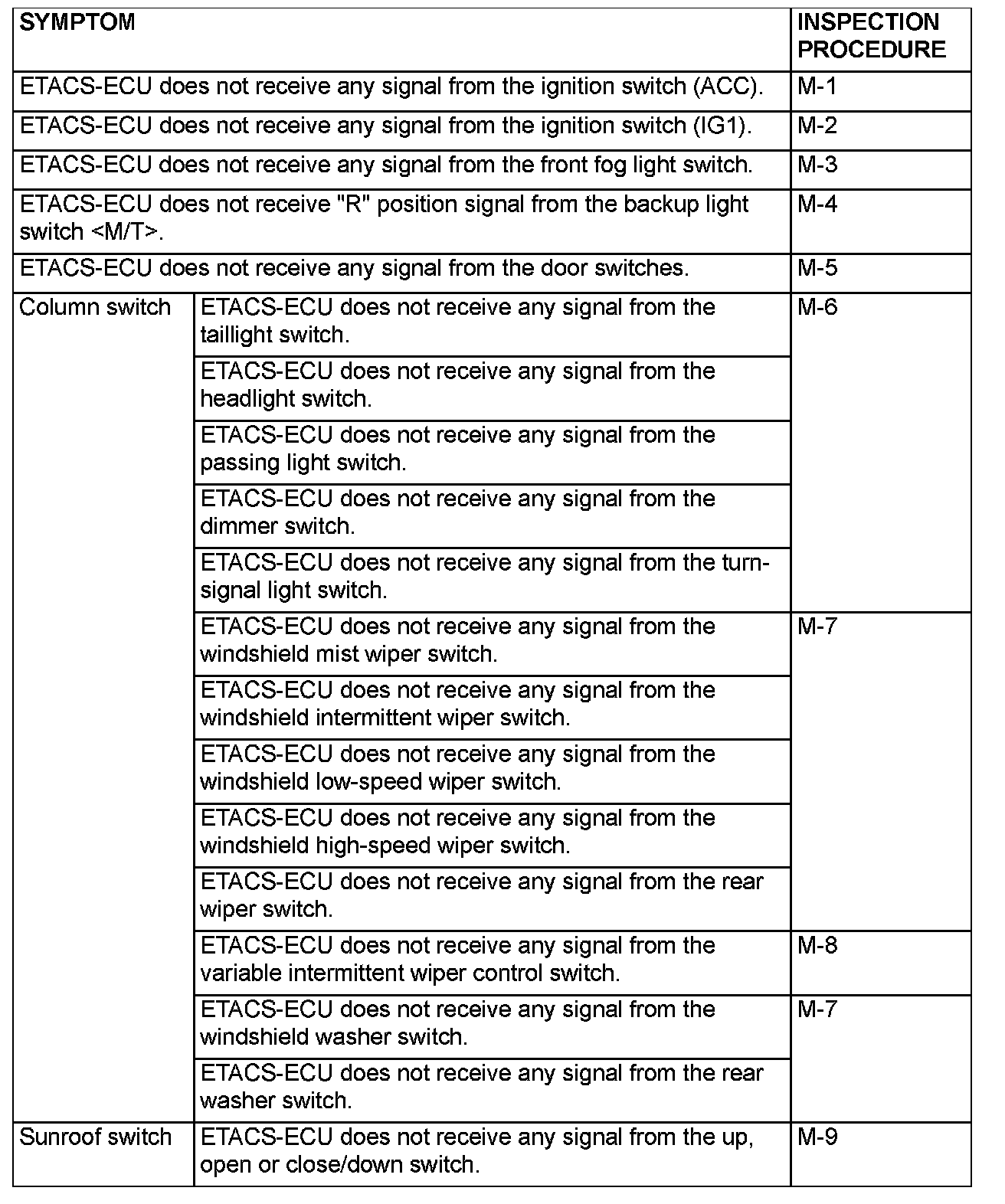

SWS MONITOR
If a problem is found in the Data List inspection, observe the table.

Scan Tool Or Voltmeter:

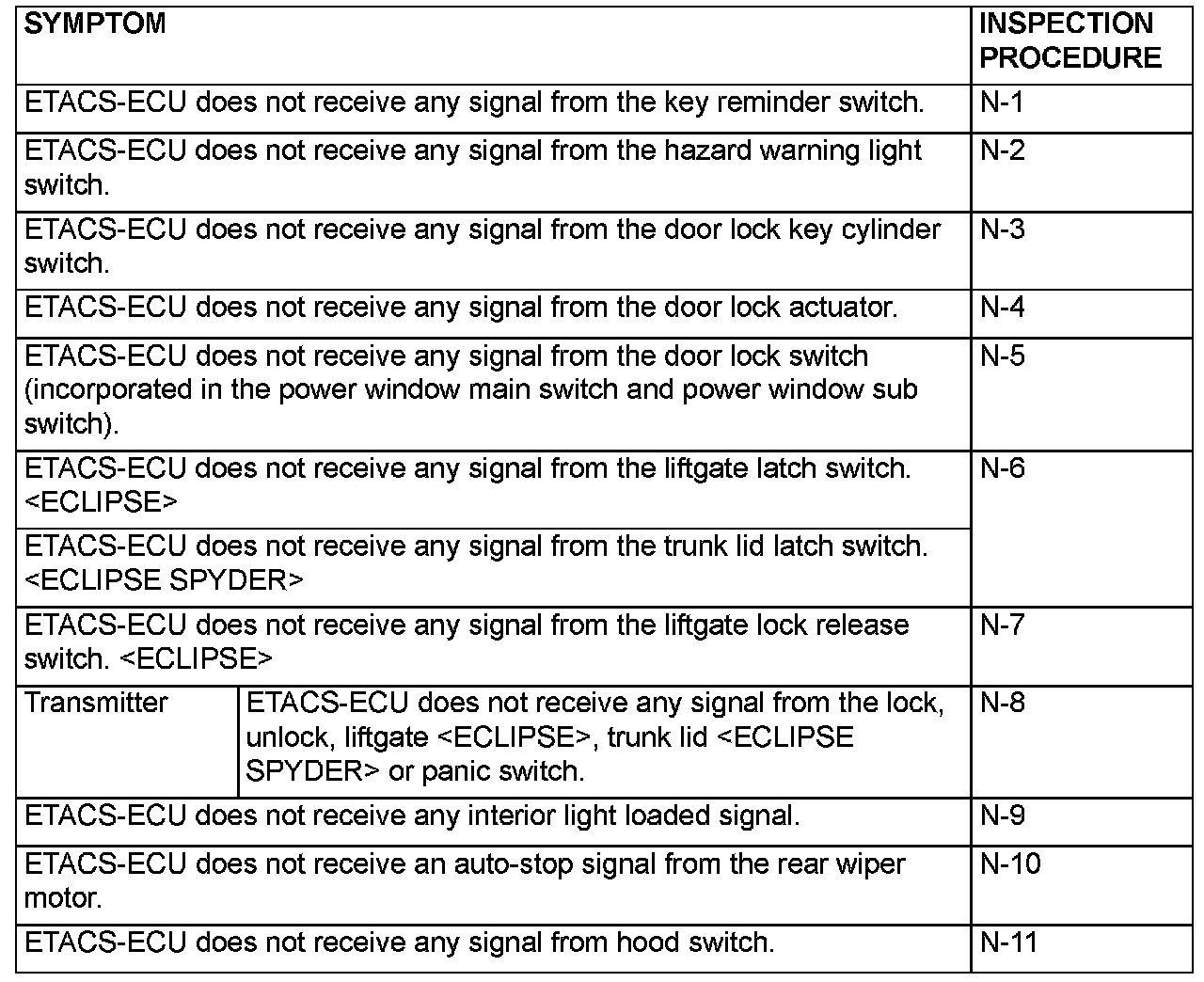

SCAN TOOL OR VOLTMETER
If a problem is found in the Pulse Check, observe the table.
