Automatic Transmission/Transaxle
>>
Differential
Differential

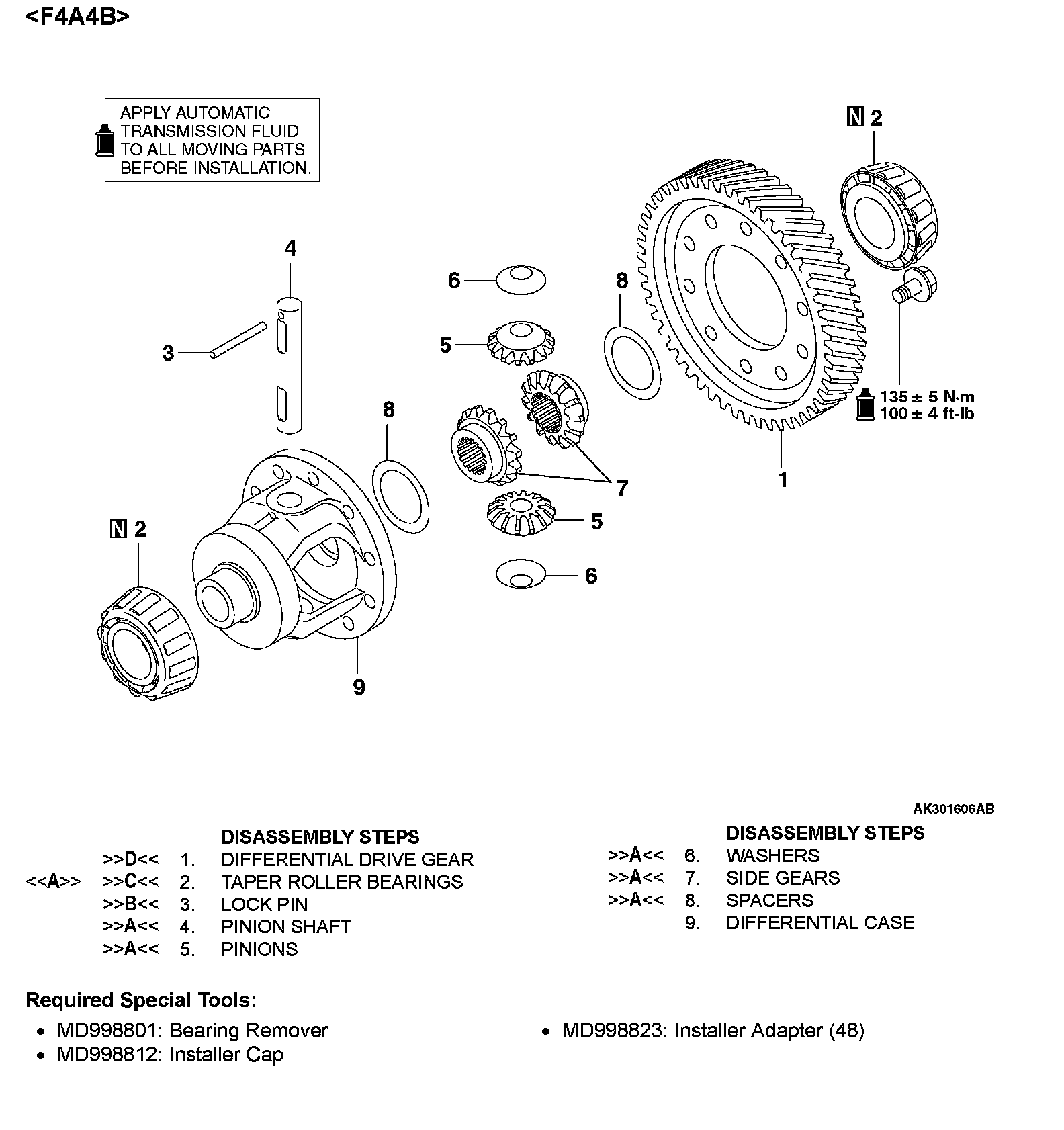

Disassembly Steps 1-9 <F4A4B> & Required Special Tools:
