Automatic Transmission/Transaxle
>>
Center Differential

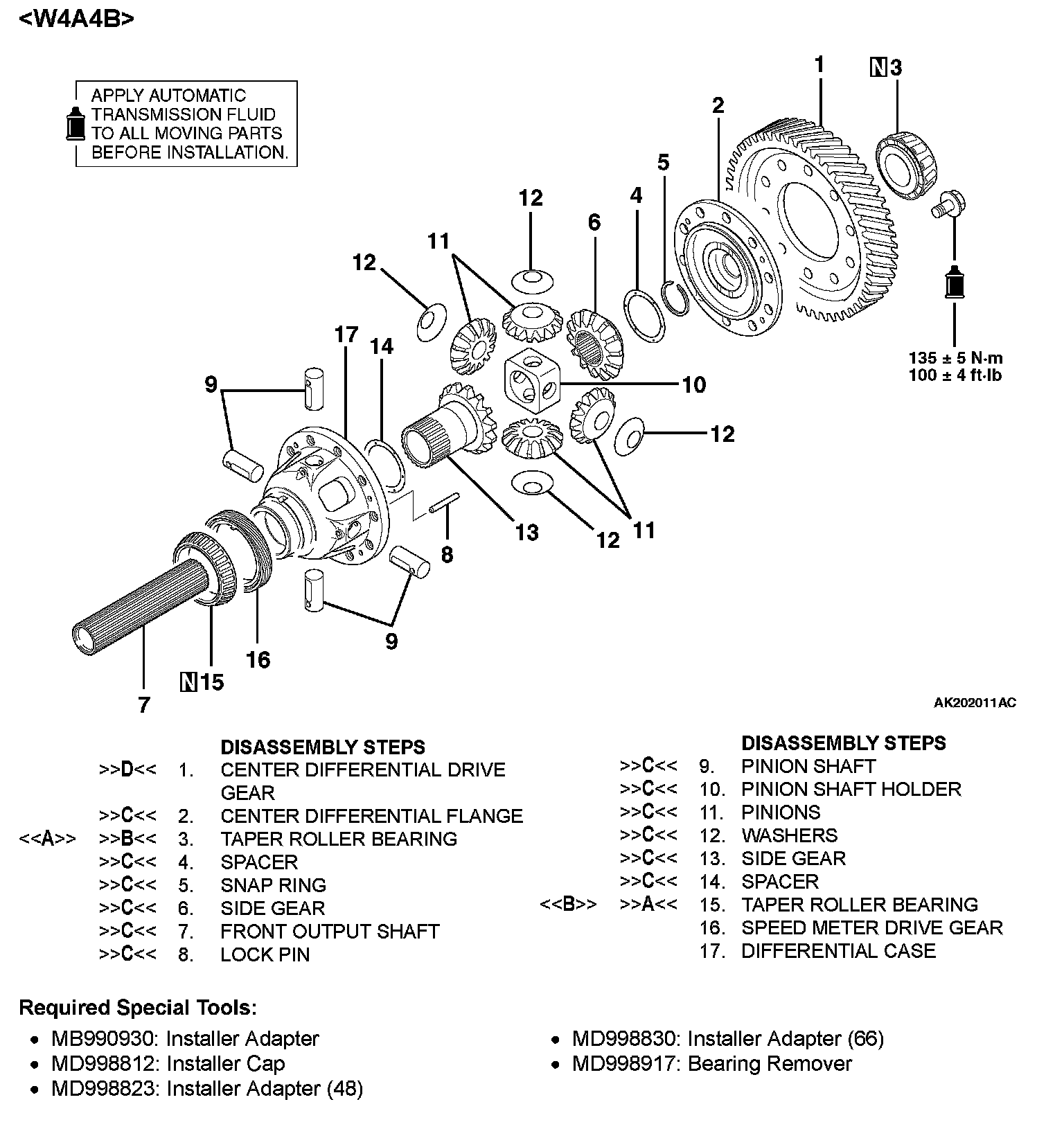

Center Differential
Disassembly Steps 1-17 <W4A4B> & Required Special Tools:
