Home >> Mitsubishi >> 2006 >> Lancer L4-2.4L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations

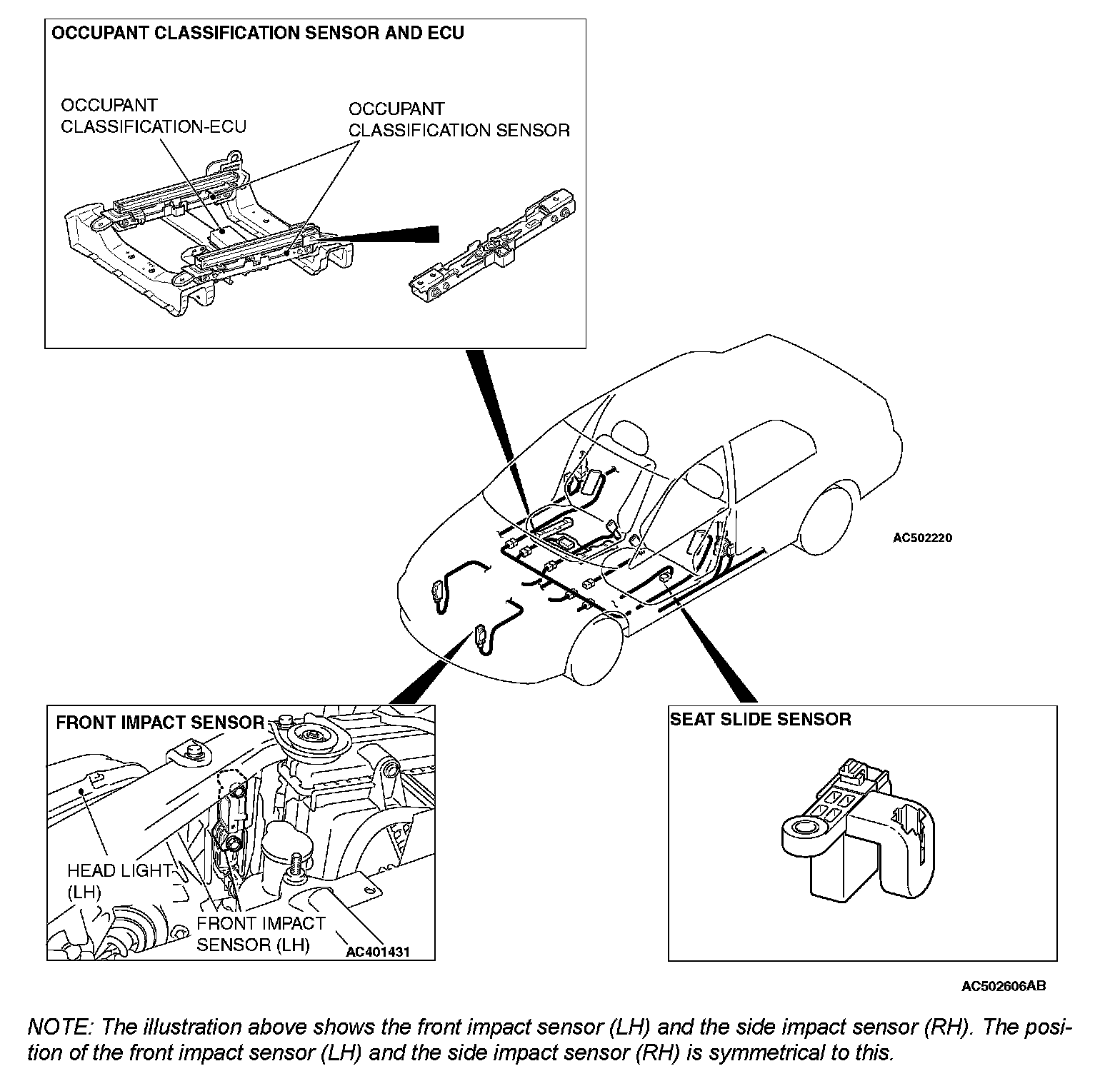

Construction Diagram:



Component Location Part 2:
