Anti-Lock Braking System (Abs) - Lancer Evolution
>>
G-Sensor
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
CAUTION:
Do not drop or apply a shock on the G-sensor.

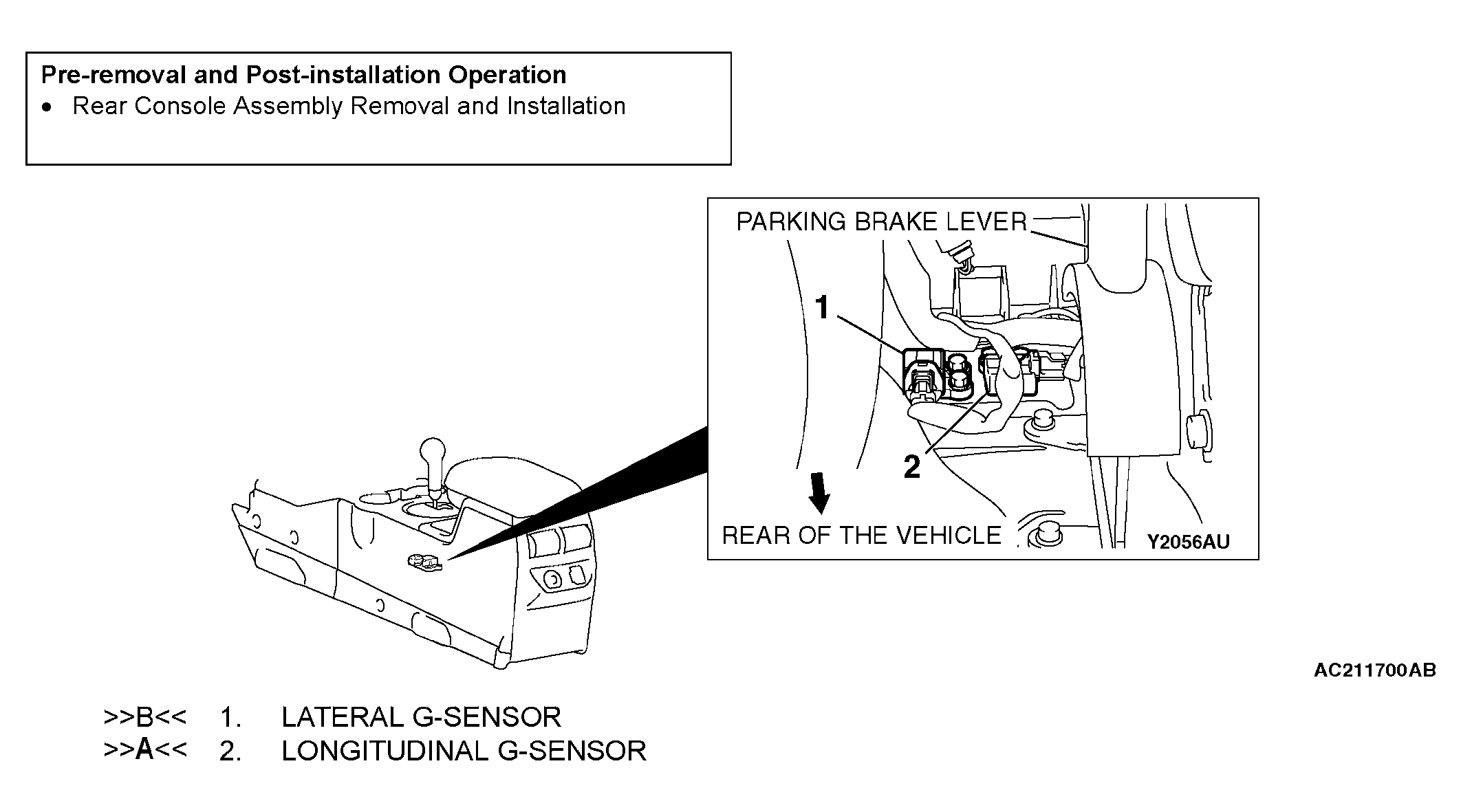

Fig 1: Removing/Installing G-Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
