Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations >> Component Locations

Component Locations

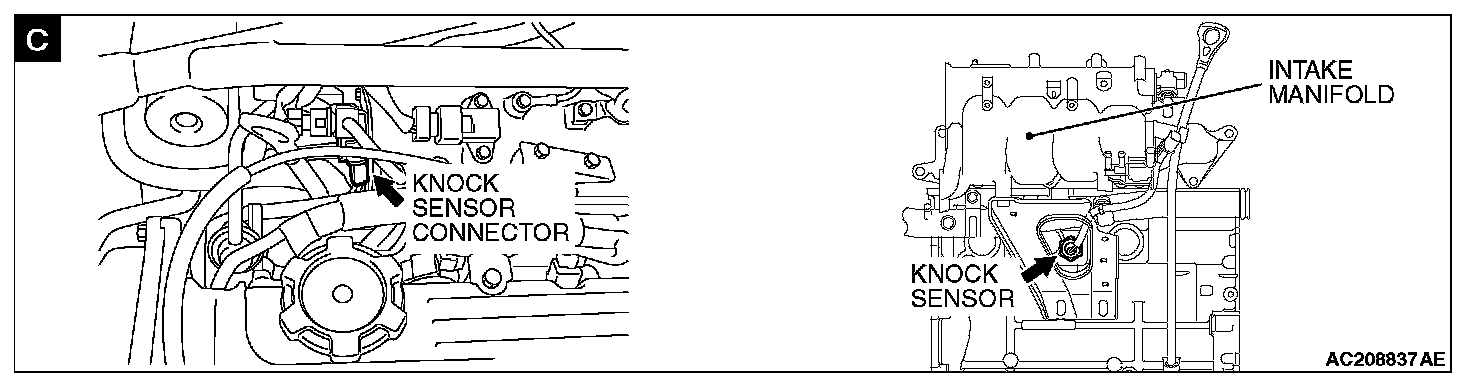

View C:

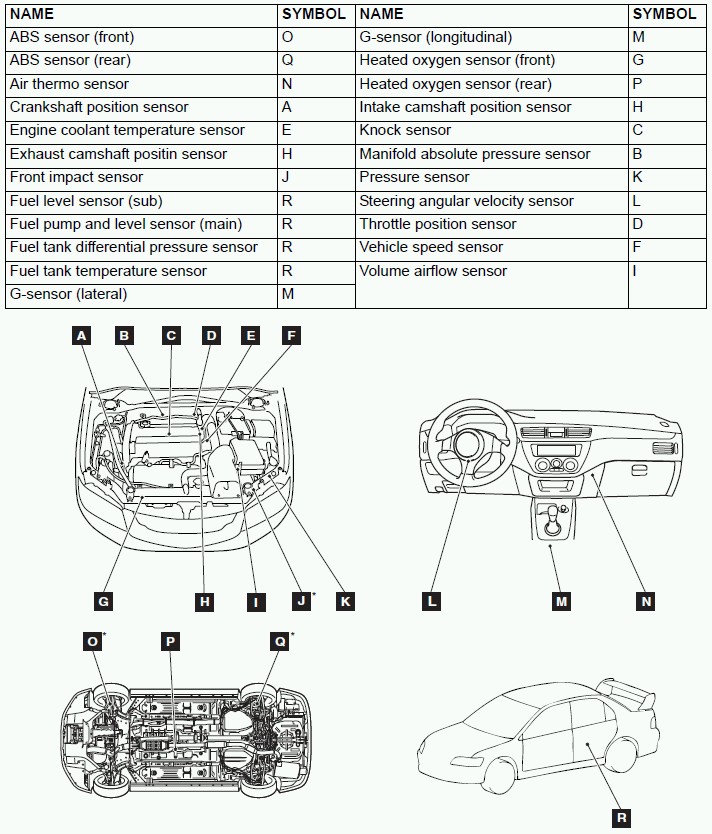

Overall View:
