Disassembly And Assembly

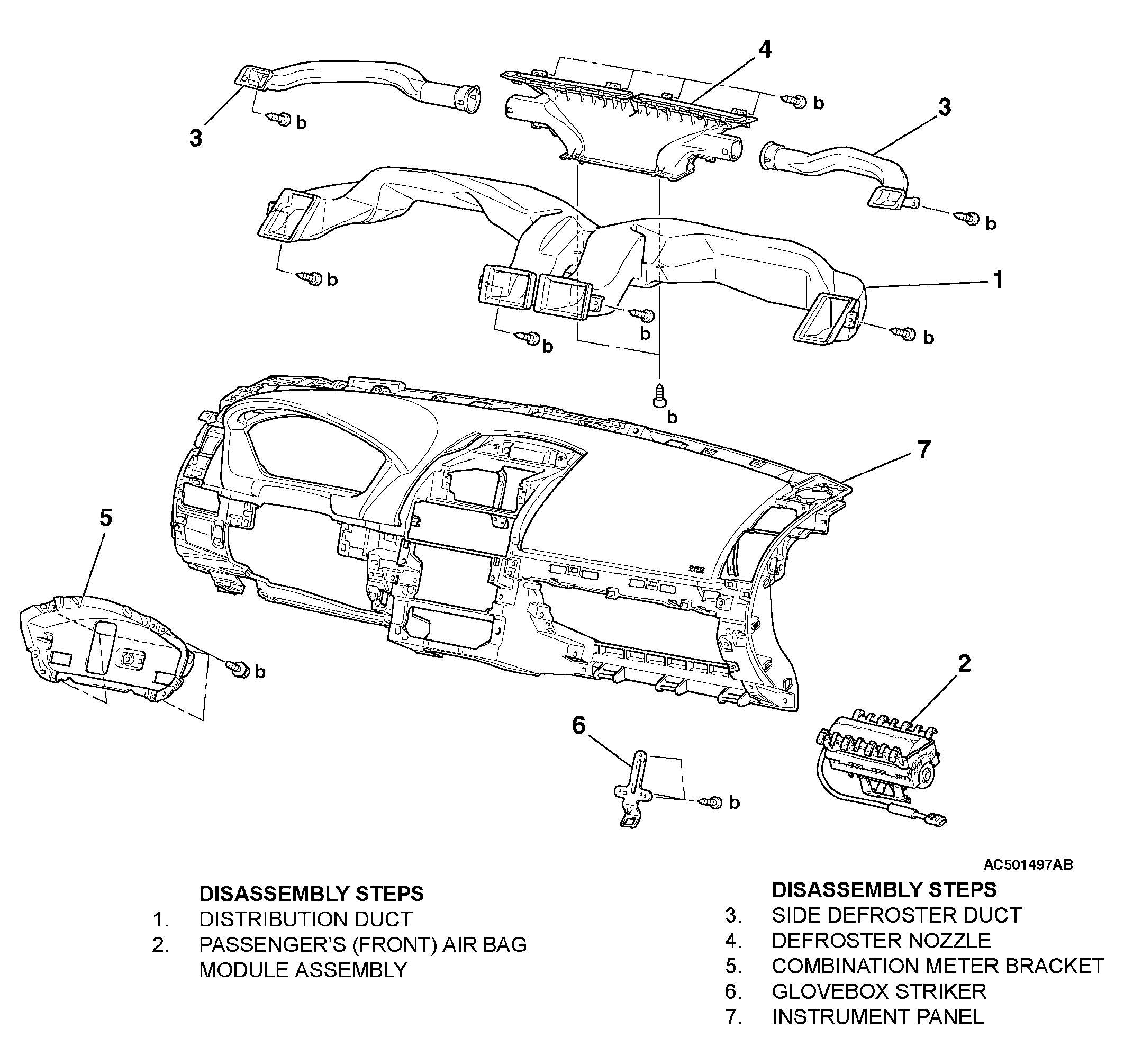

Fig 1: Disassembling/Assembling Instrument Panel Assembly

G04255814

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
