Data List Reference Table

The table shows the service data and their normal condition, which are displayed during the "Data List."

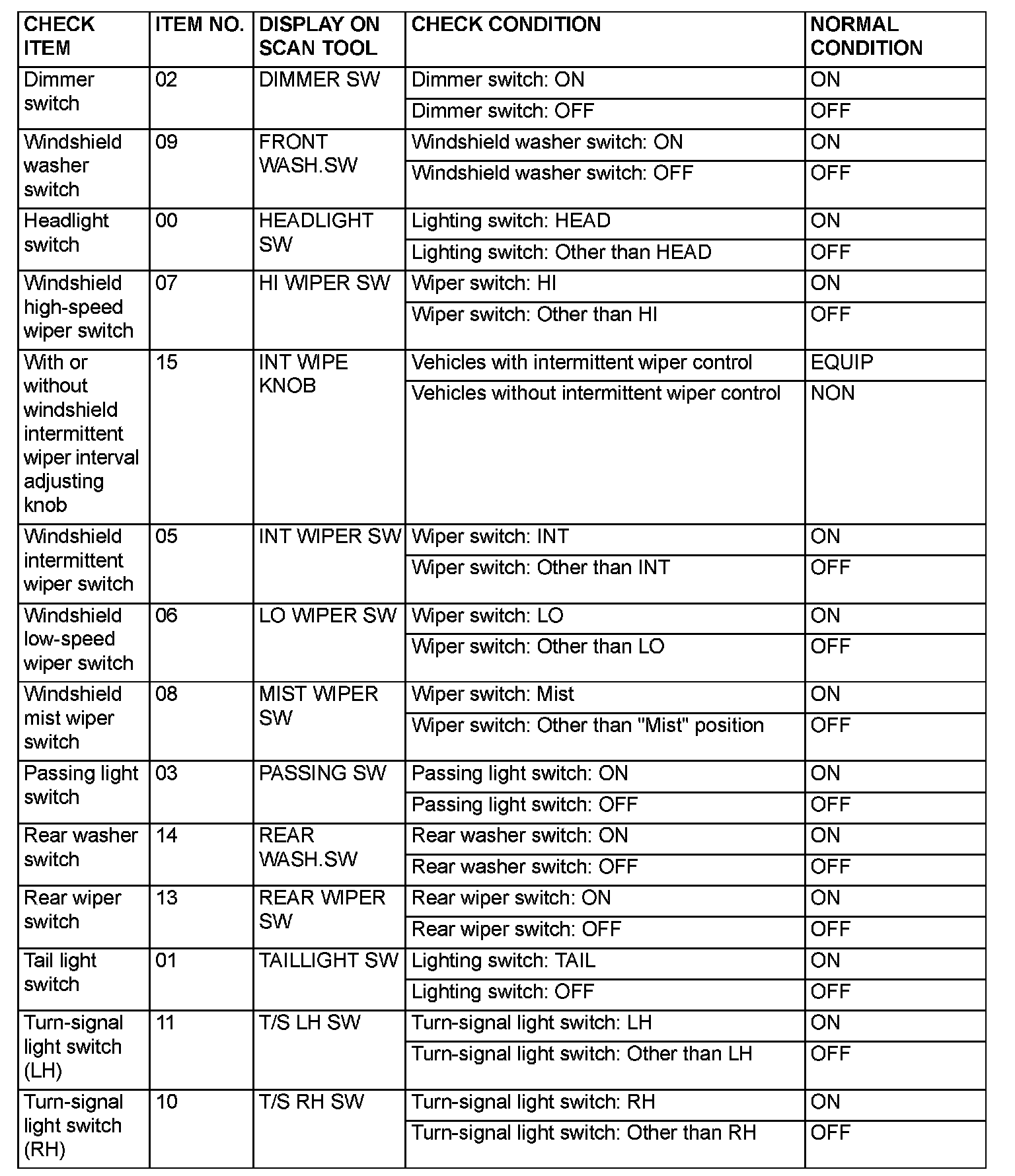

Data List Reference Table - Column ECU:

COLUMN ECU

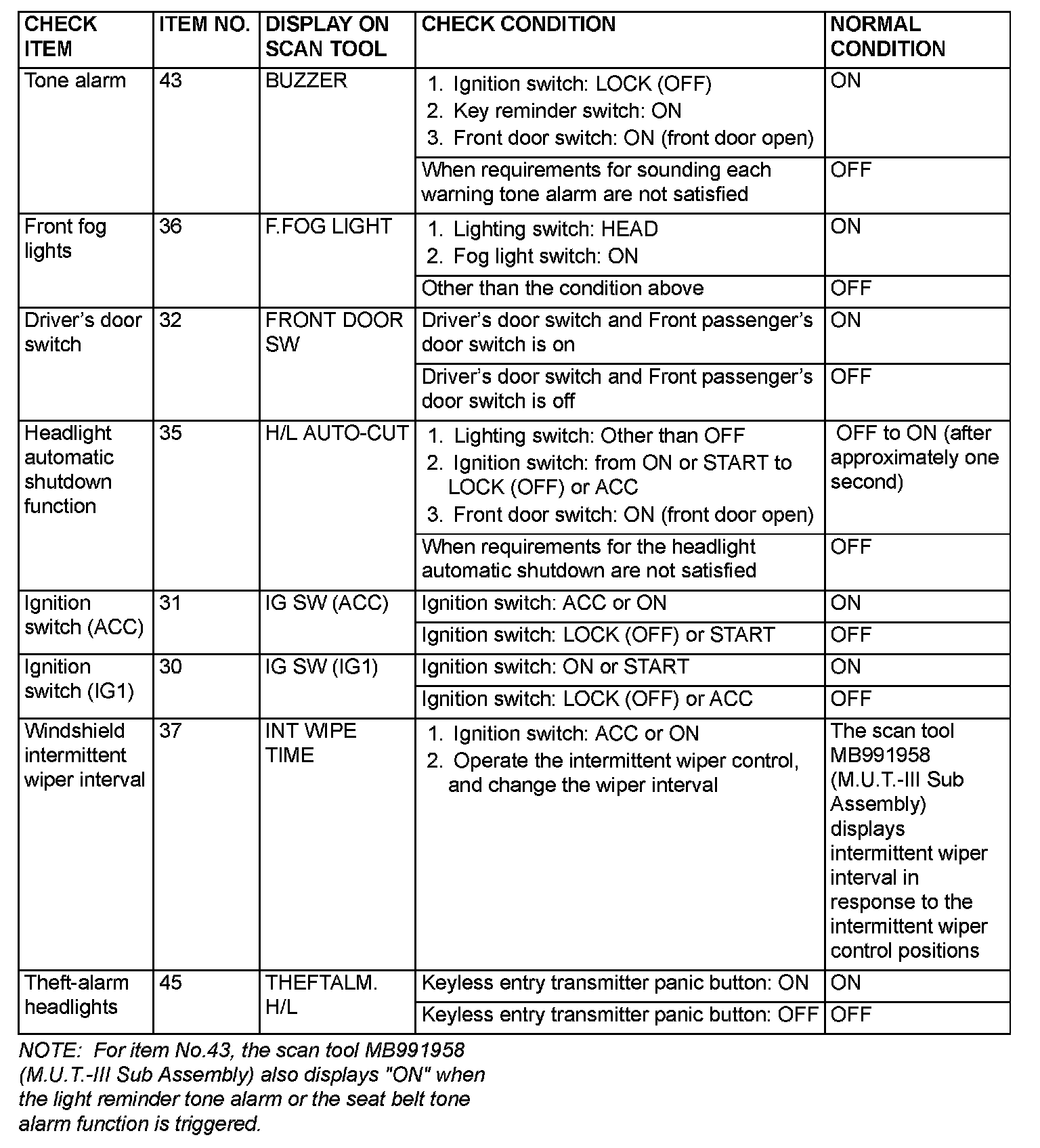

Data List Reference Table - ETACS:

ETACS

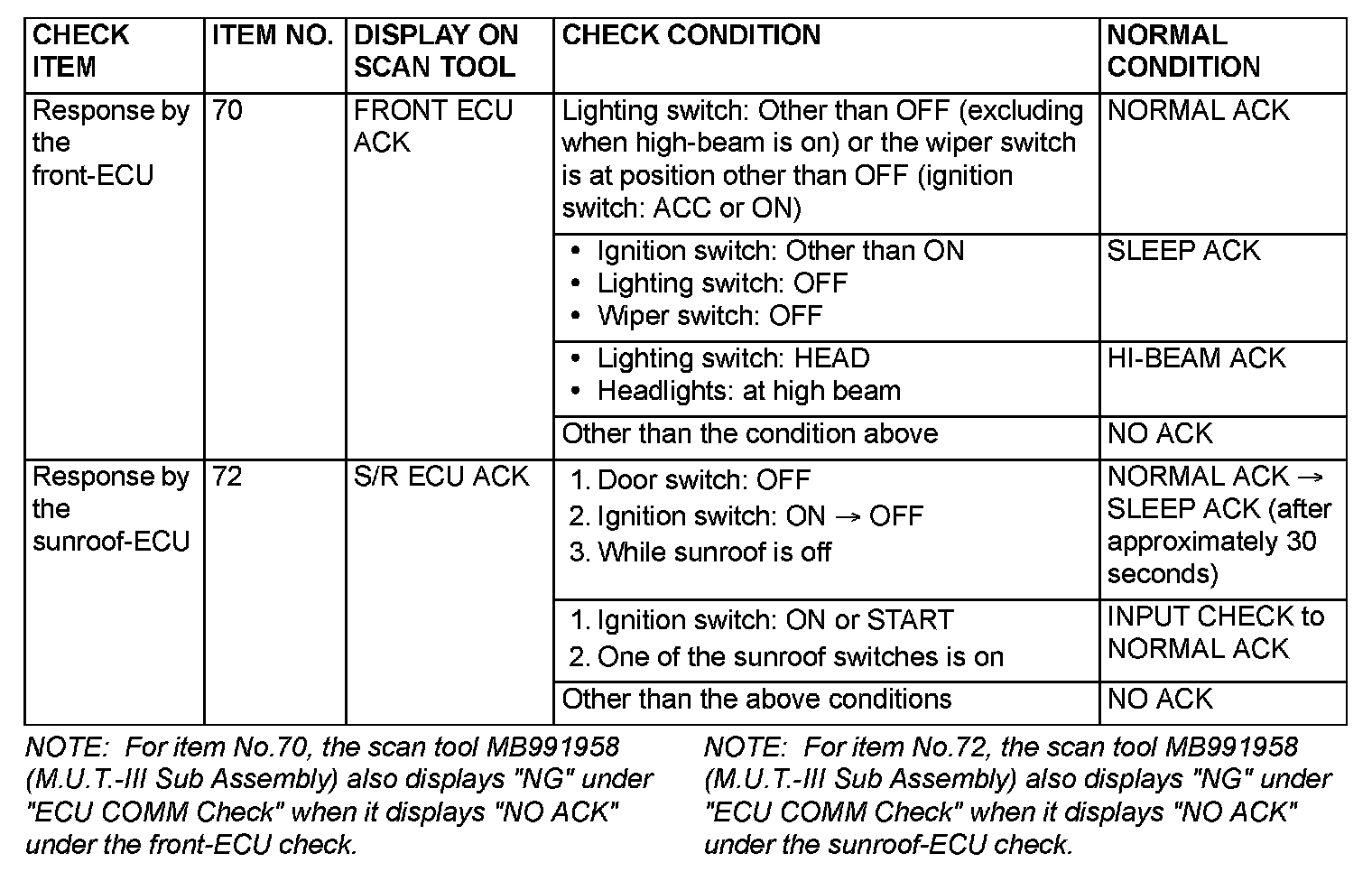

Data List Reference Table - Front-ECU, P/W, S/R:

Front-ECU, P/W, S/R
