Home >> Mitsubishi >> 2005 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection

Power Window Switch: Testing and Inspection

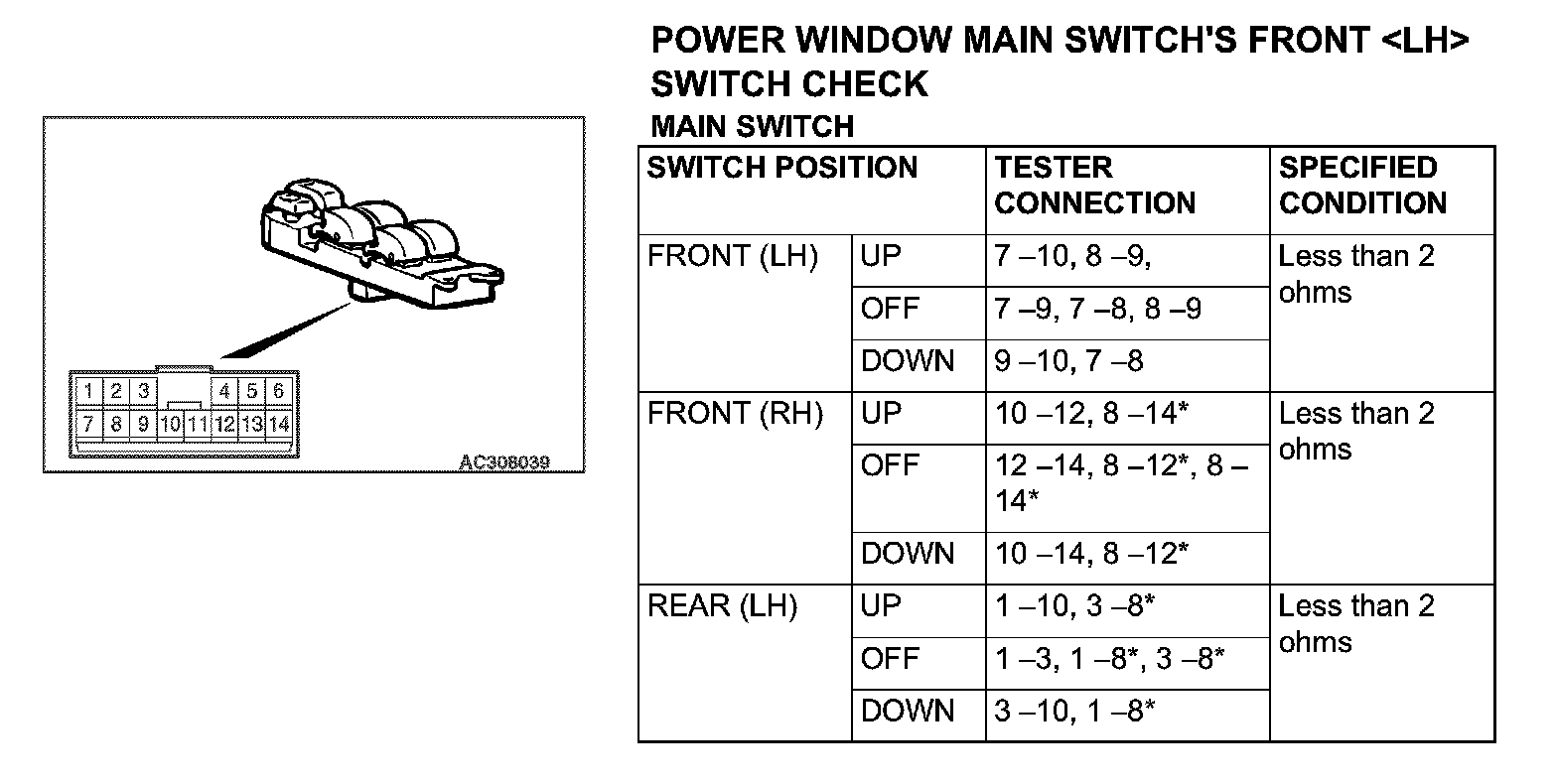

Main Switch:

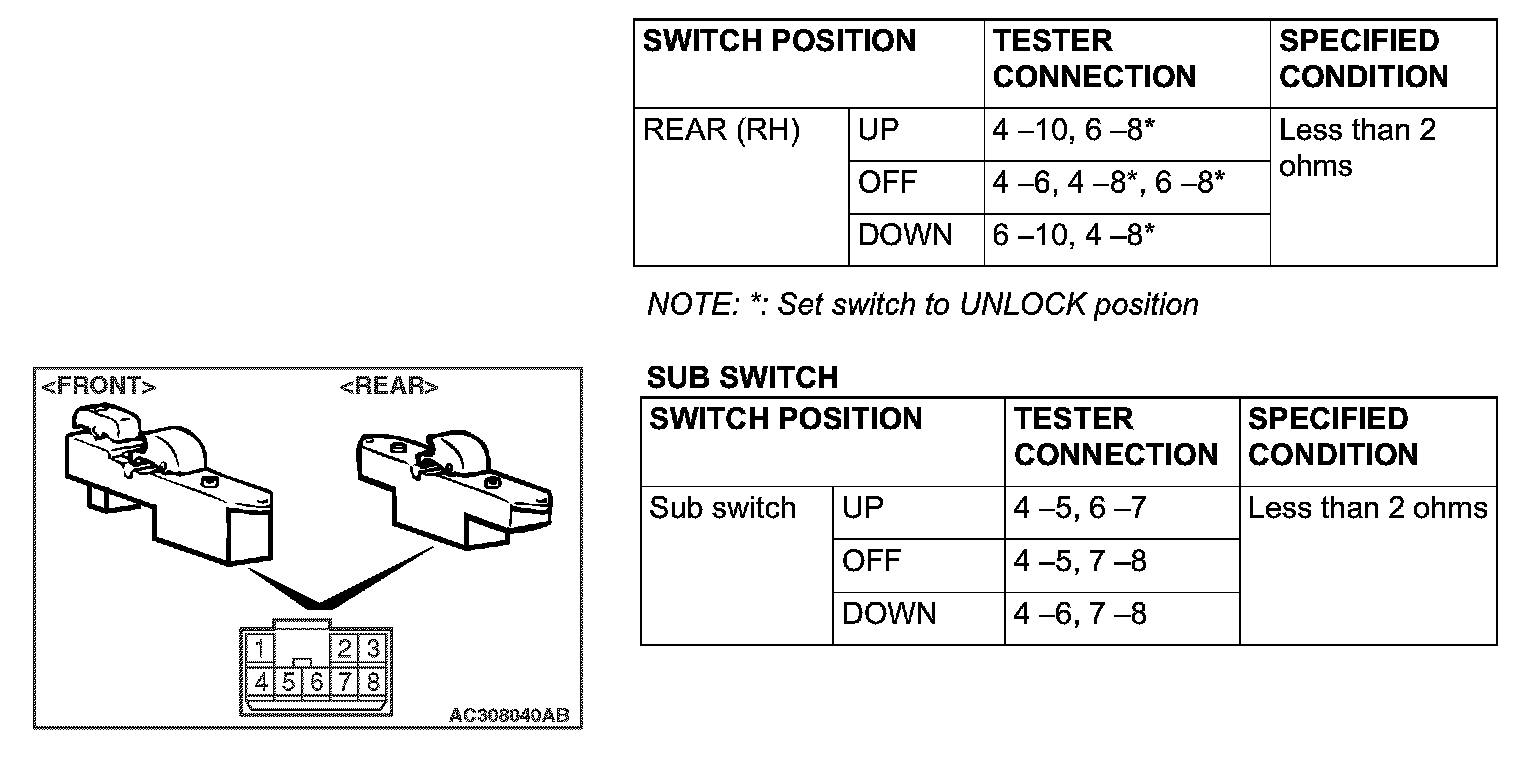

Sub Switch:
