Fuel Pump (Module) Disassembly And Assembly: Notes

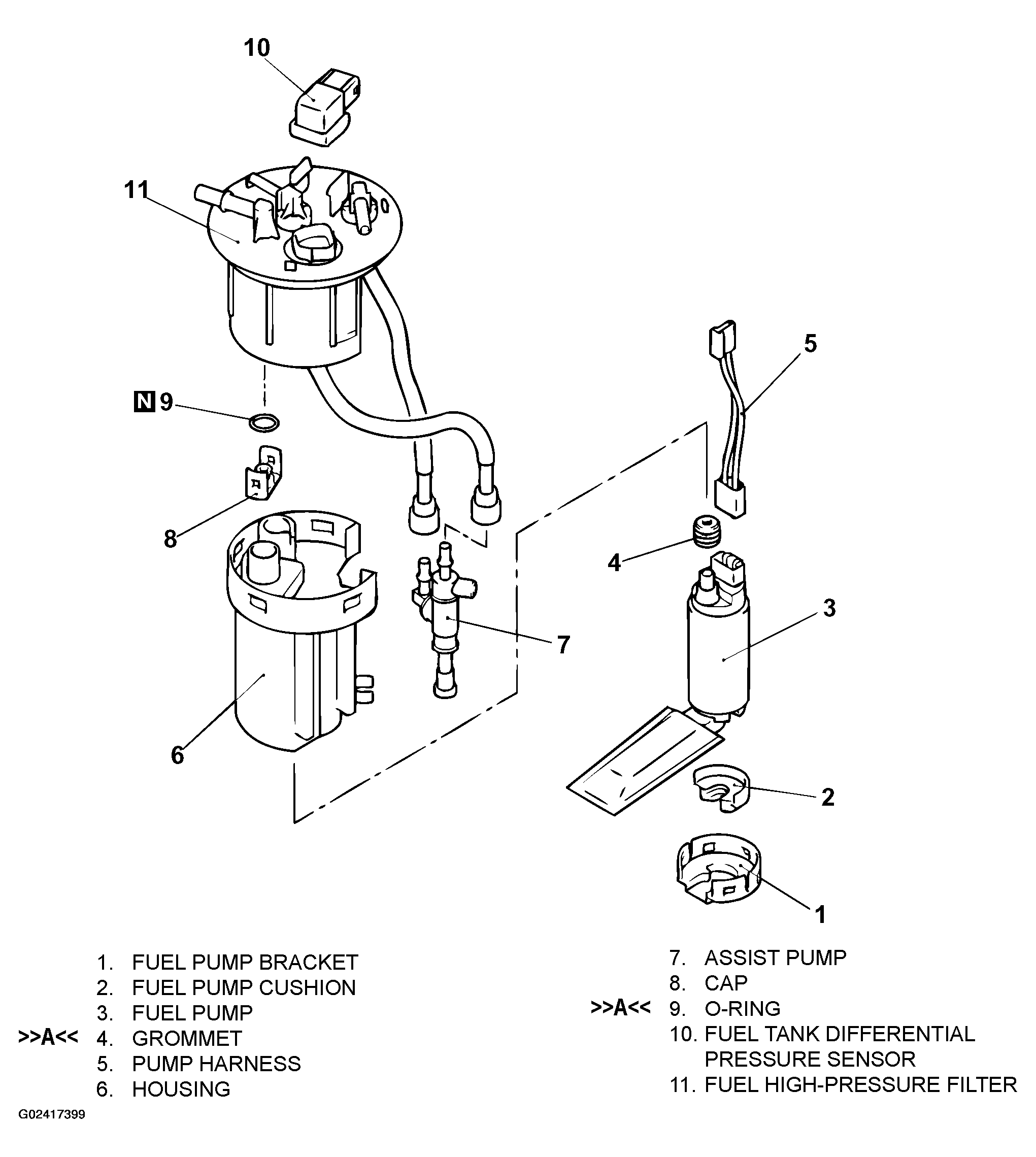

Fig 1: Exploded View Of Fuel Pump (Module)

G02417399

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
