Chassis Electrical -- Evolution
>>
Specifications
>>
Service Specifications
>>
< Combination Meter >
< Combination Meter >

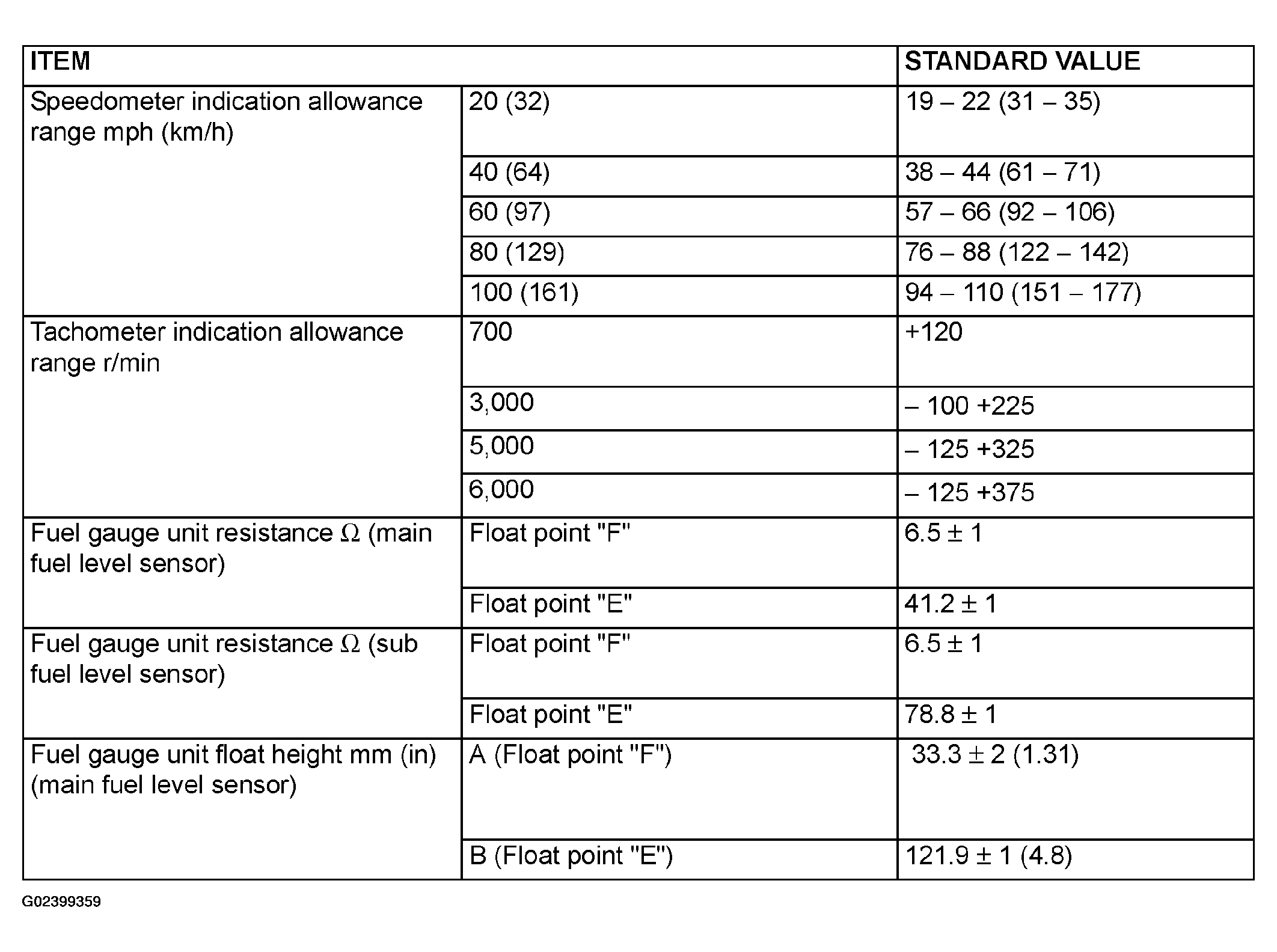

Fig 1: Service Specifications Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

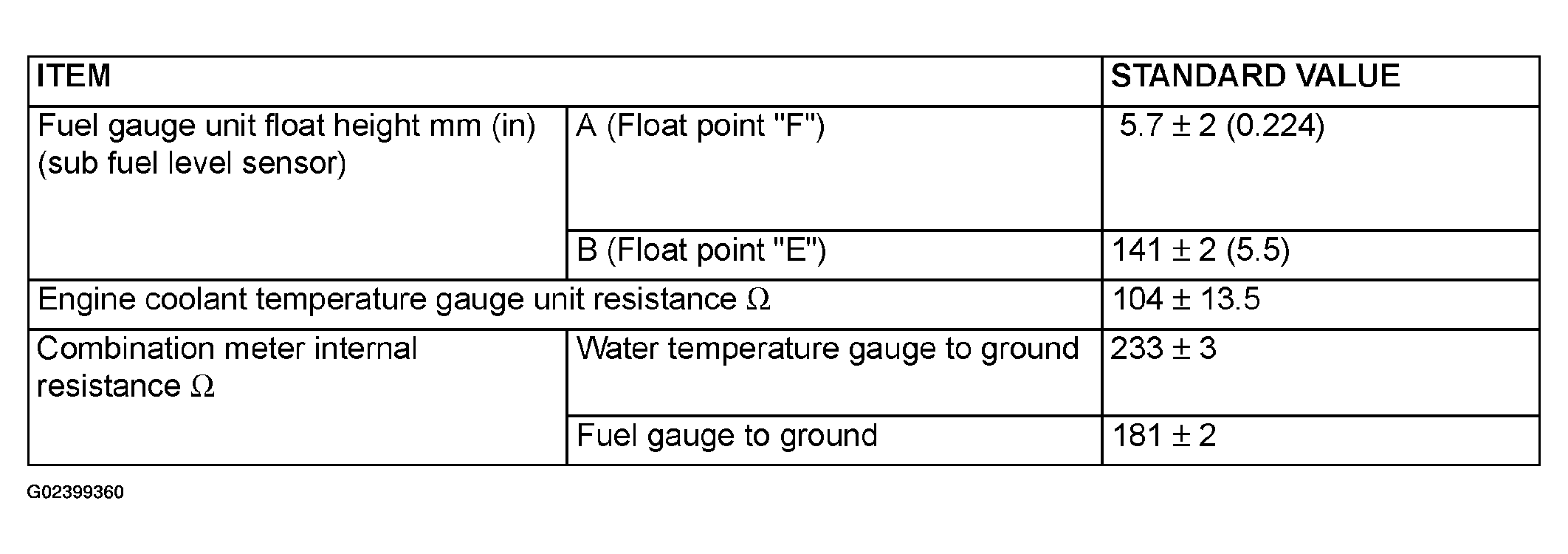

Fig 2: Service Specifications Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
