Home >> Mitsubishi >> 2005 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radiator

Radiator

Part 1 Of 2:

Part 2 Of 2:

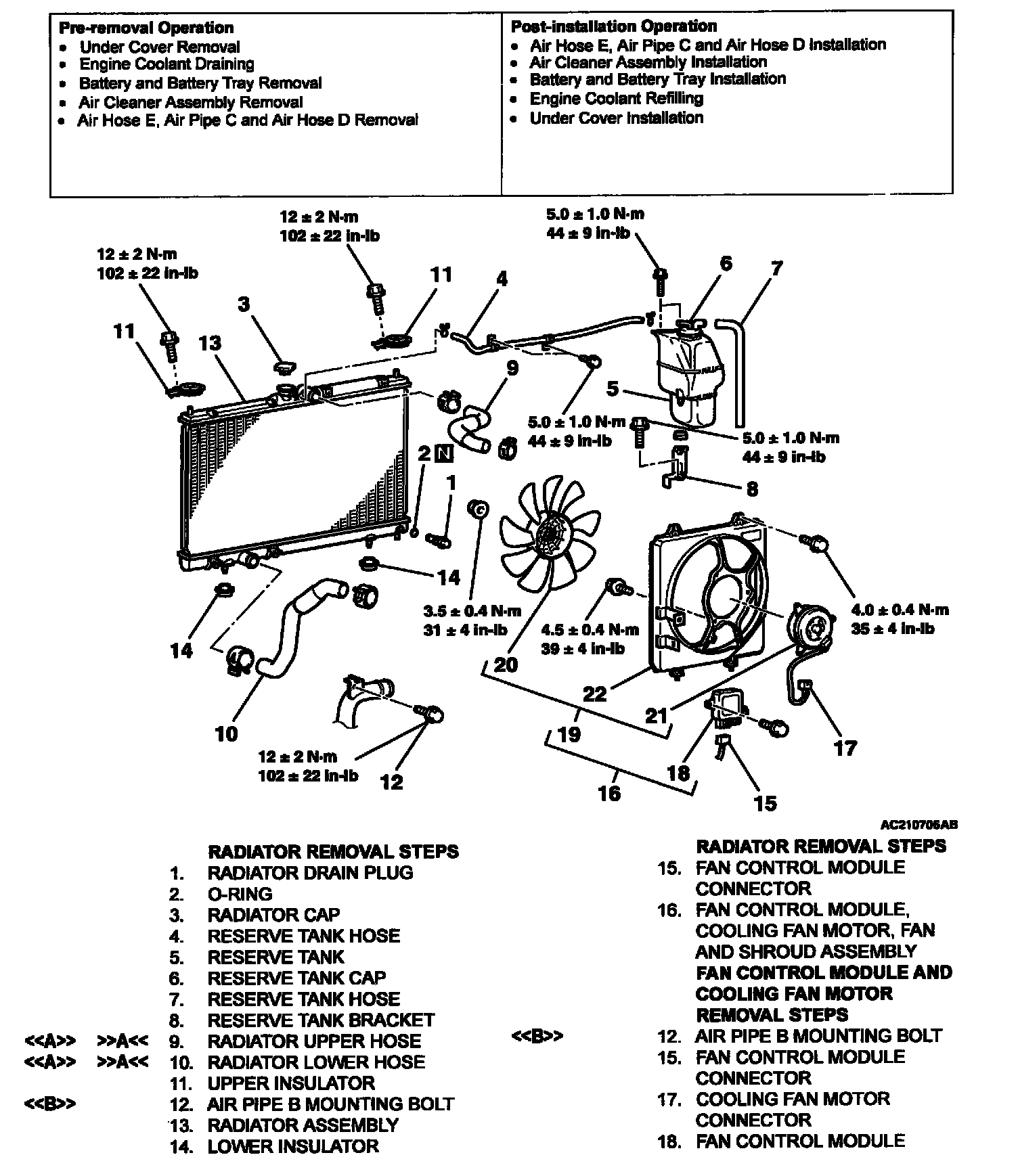

RADIATOR REPLACEMENT W/ RELATED COMPONENTS
