DTC 010: Bus Off: Notes

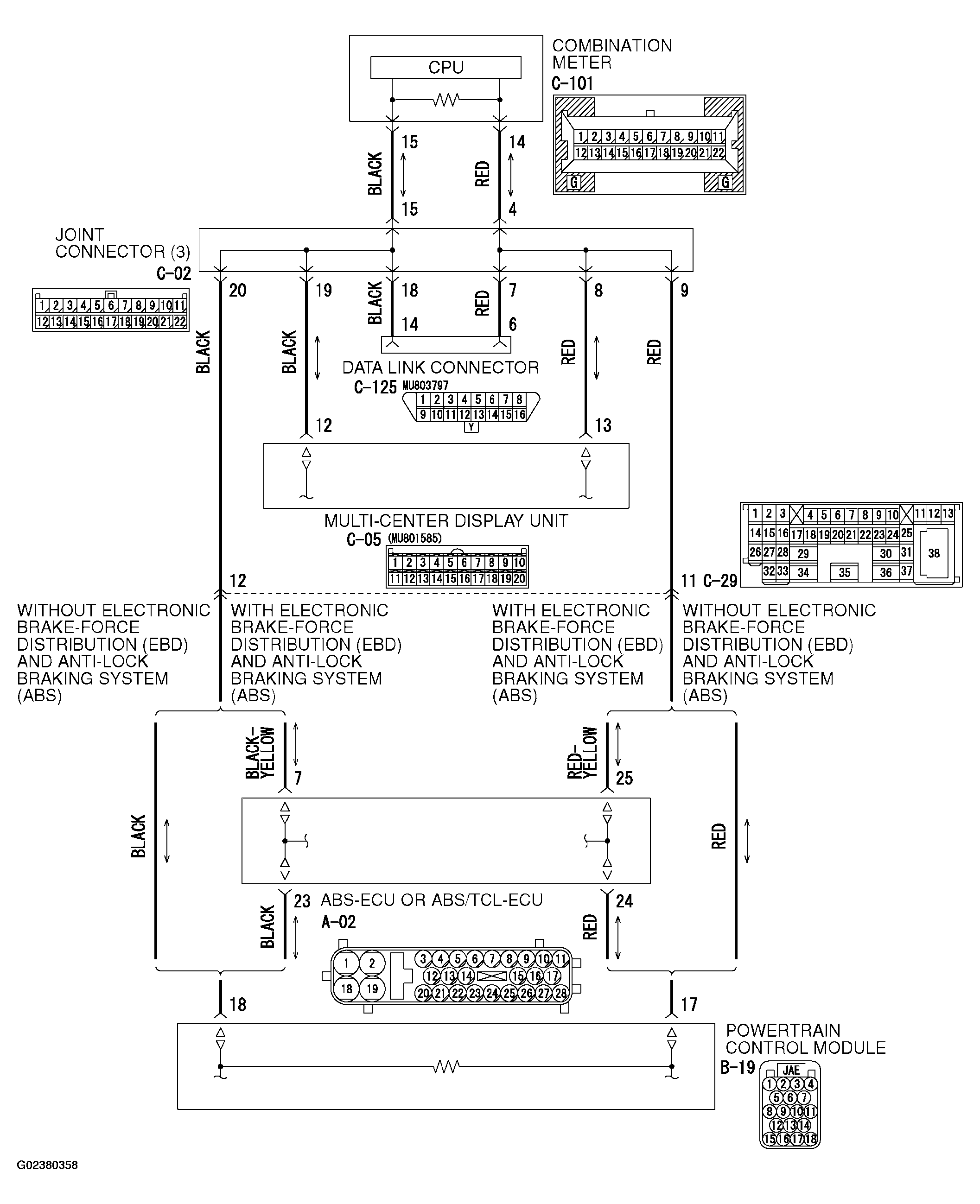

Fig 1: Identifying Multi-Center Display (Middle Grade Type) CAN-Bus Line Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

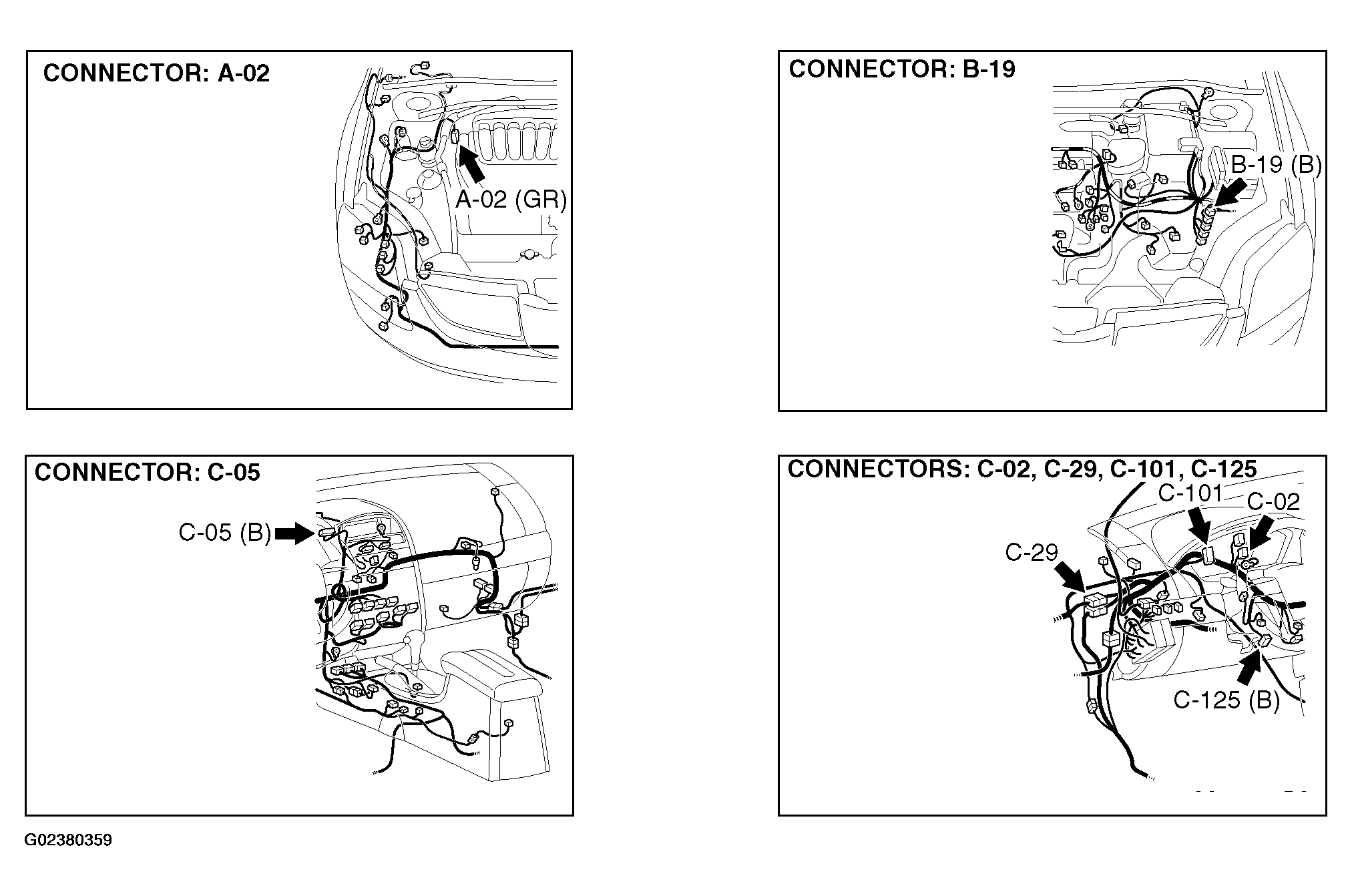

Fig 2: Identifying Multi-Center Display (Middle Grade Type) CAN-Bus Line Circuit Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC 010 is set in the multi-center display, always diagnose the CAN bus lines.

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
