Home >> Mitsubishi >> 2005 >> FE120 L4-4.9L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> EGR Control Module

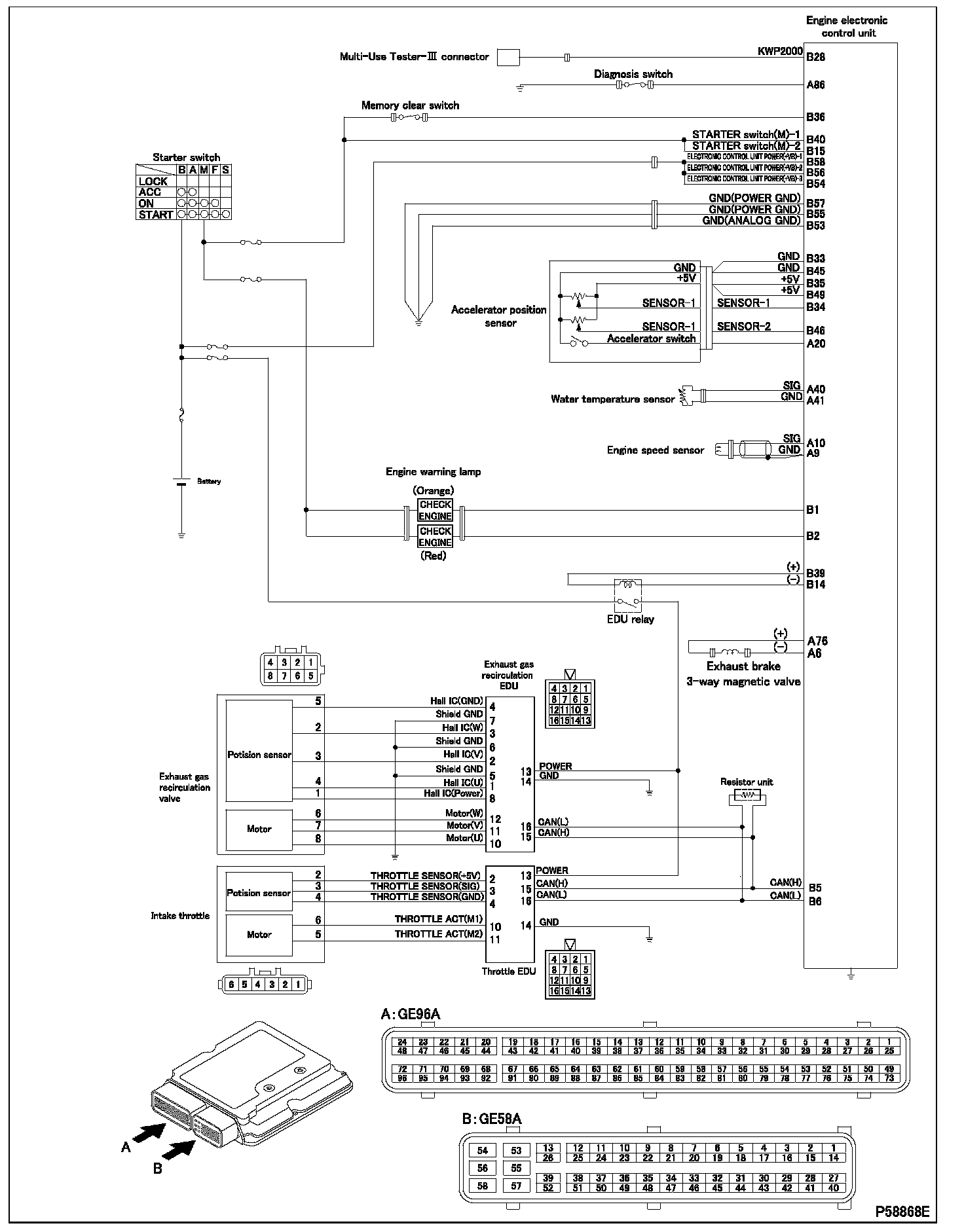

EGR Control Module
